2DT Metal Fence Mesh

Introduction

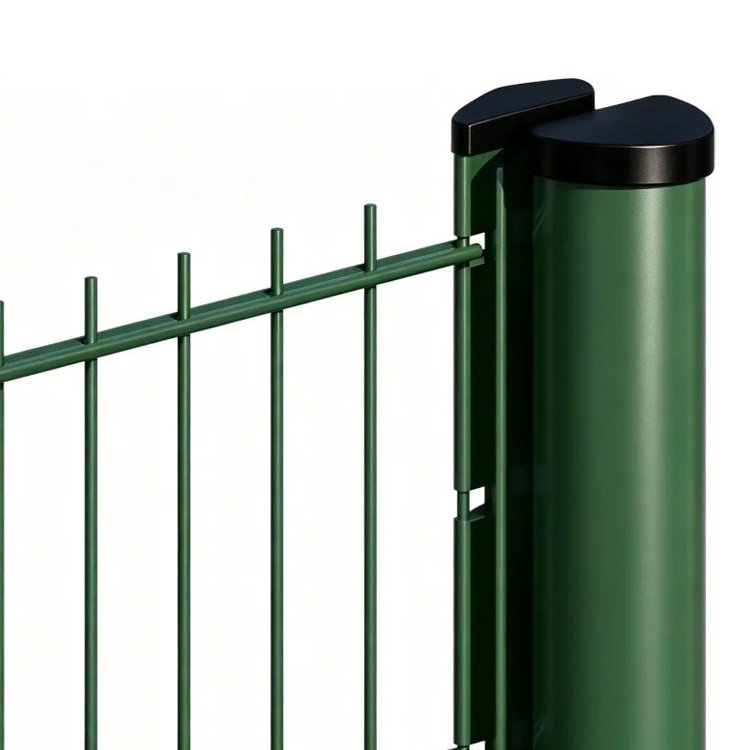

Constructed with a one-piece, seamless all-steel curved post and 2D double horizontal wire welded mesh. The 2DT Wire Mesh Fence features a sleek and elegant appearance with dynamic, smooth lines. The integrated design of the post buckle groove connects the mesh without requiring additional connectors, allowing it to adapt seamlessly to uneven terrain and installations at various angles. The fence employs a push-type installation method for added convenience and efficiency.

Technical Specifications

The technical parameters of the dual-level welded wire mesh comply with relevant international standards (ASTM, EN, BS) and Chinese standards (GB). All parameter values represent typical specifications for industrial-grade products, and the corrosion resistance performance meets the requirements of ISO 12944.

Wire Mesh Panel		Fence Post
Item	Specification	Item	Specification
Mesh Height	1000–2430 mm	Post Size	70×100 mm
Mesh Width	2500 mm / 3000 mm	Thickness	1.0 mm / 1.2 mm / 1.5 mm
Wire Diameter	Ø5.0+Ø4.5+Ø5.0 mm Ø6.0+Ø5.0+Ø6.0 mm Ø8.0+Ø6.0+Ø8.0 mm	Height	1000–3000 mm
Vertical Wire Spacing	50 mm / 55 mm / 65 mm	Material	Q235 / DC51D
Horizontal Wire Spacing	200 mm
Material	Q195 / Q235

Product Visual

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

One-Stop Fencing: Smart Design, Global Std

Drawing Deepening Service: Our professional and highly efficient drawing deepening service has significantly reduced on-site adjustment time and errors.
Custom Fencing Solutions: We offer comprehensive one-stop fencing customization services covering the entire process from design to precise construction.
Material Optimization: We recommend optimal material solutions based on specific usage scenarios, striking a perfect balance between cost, durability, and performance.

Installation Method

Optional Accessaries

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.

🌟 Our Qualifications 🌟

We adhere to the principle of “quality first”, leveraging advanced equipment and technology to ensure superior products. In service, we uphold the values of honesty, cooperation, and open communication. With our own production workshop, China Fence Company strictly follows ISO management standards throughout procurement, production, sales, and after-sales service.
Below are our certifications:
