358G 2D Metal Fence Mesh & Profiled Posts B

Introduction

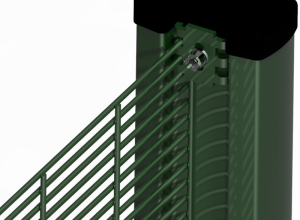

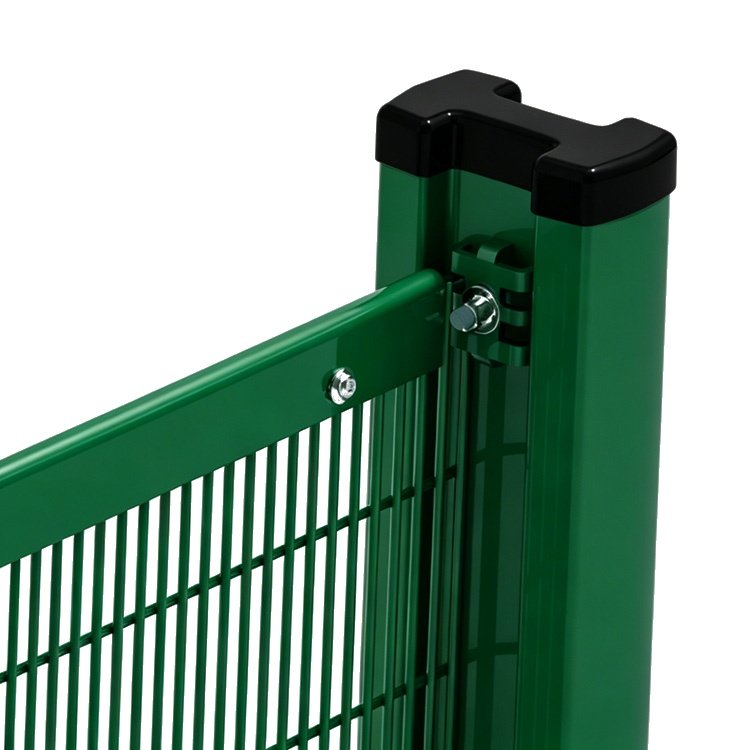

This fence system is composed of cold-formed I-shaped posts and 358 welded mesh, offering exceptional anti-riot, anti-cutting, and anti-disassembly performance. The integrated post design connects to the mesh using dedicated interlocks and anti-theft bolts, ensuring adaptability to uneven terrain and installation from various angles. The product supports versatile installation methods, including push-type installation or sequential installation of posts and mesh, making it both convenient and efficient.

Technical Specifications

The technical parameters of the dual-level welded wire mesh comply with relevant international standards (ASTM, EN, BS) and Chinese standards (GB). All parameter values represent typical specifications for industrial-grade products, and the corrosion resistance performance meets the requirements of ISO 12944.

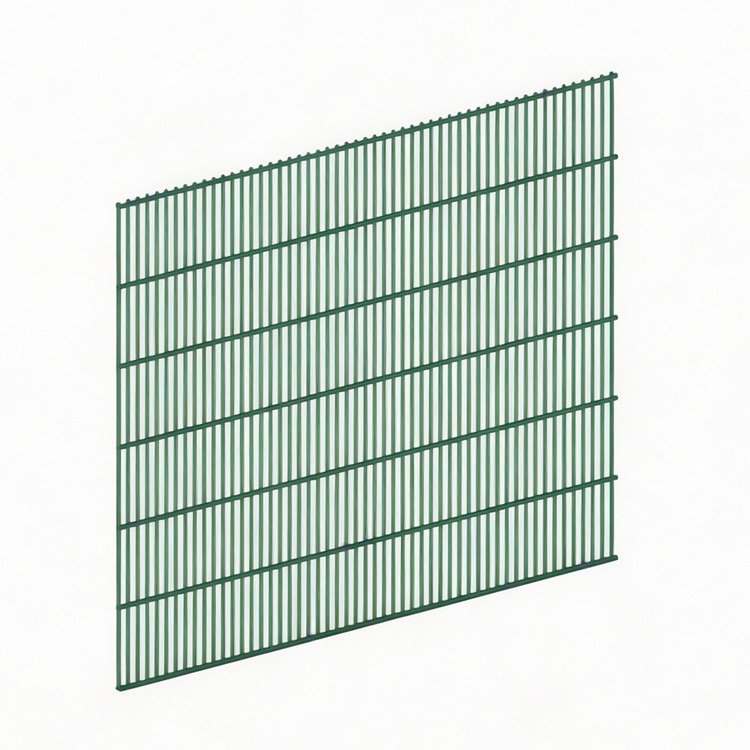

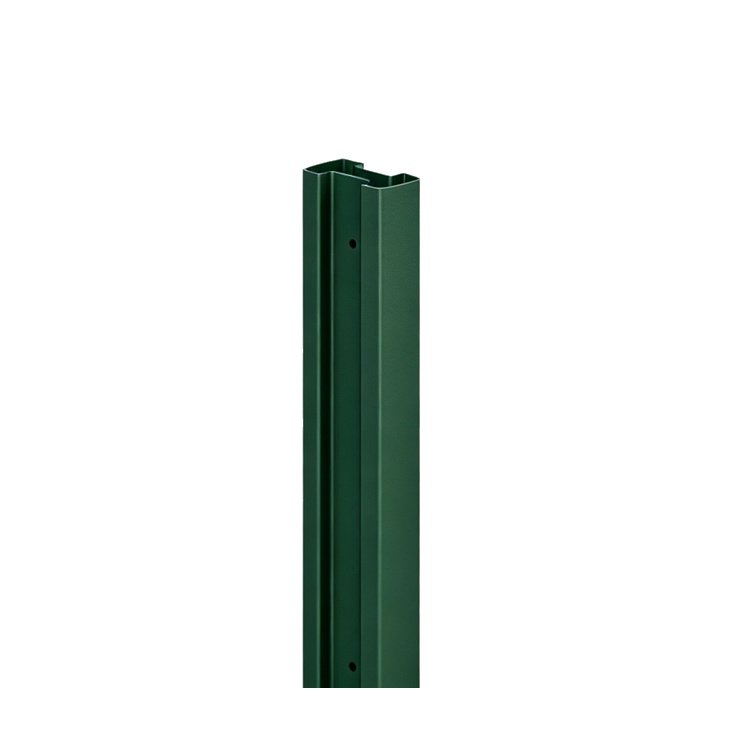

Wire Mesh Panel		Fence Post
Item	Specification	Item	Specification

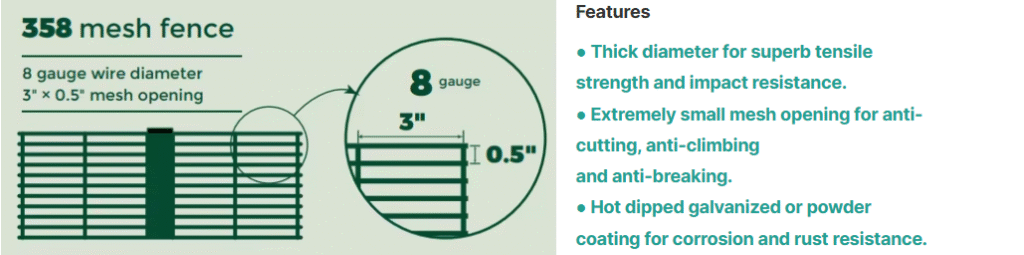

Mesh Height	1000–2430 mm	Post Size	54.4 × 100 mm
Mesh Width	2200/2500 mm	Thickness	1.5/2.0 mm
Wire Diameter	Ø4.0 mm	Height	1000–3000 mm
Vertical Wire Spacing	76 mm	Material	Q235
Horizontal Wire Spacing	12.5 mm	Post Cap	ABS
Material	Q195

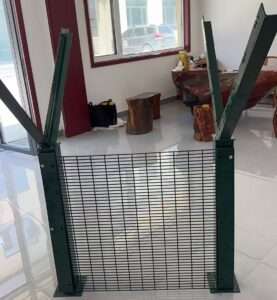

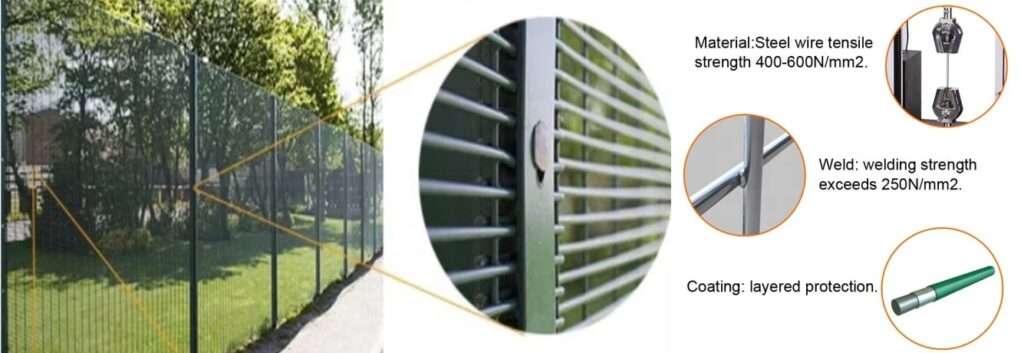

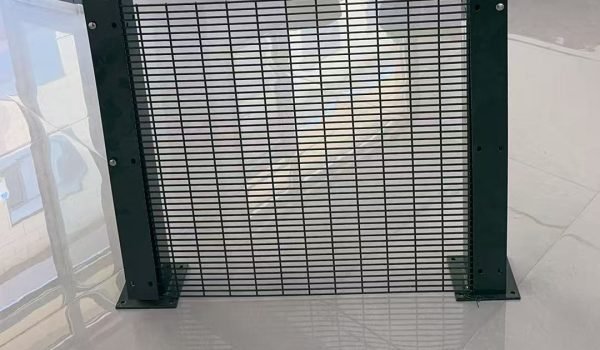

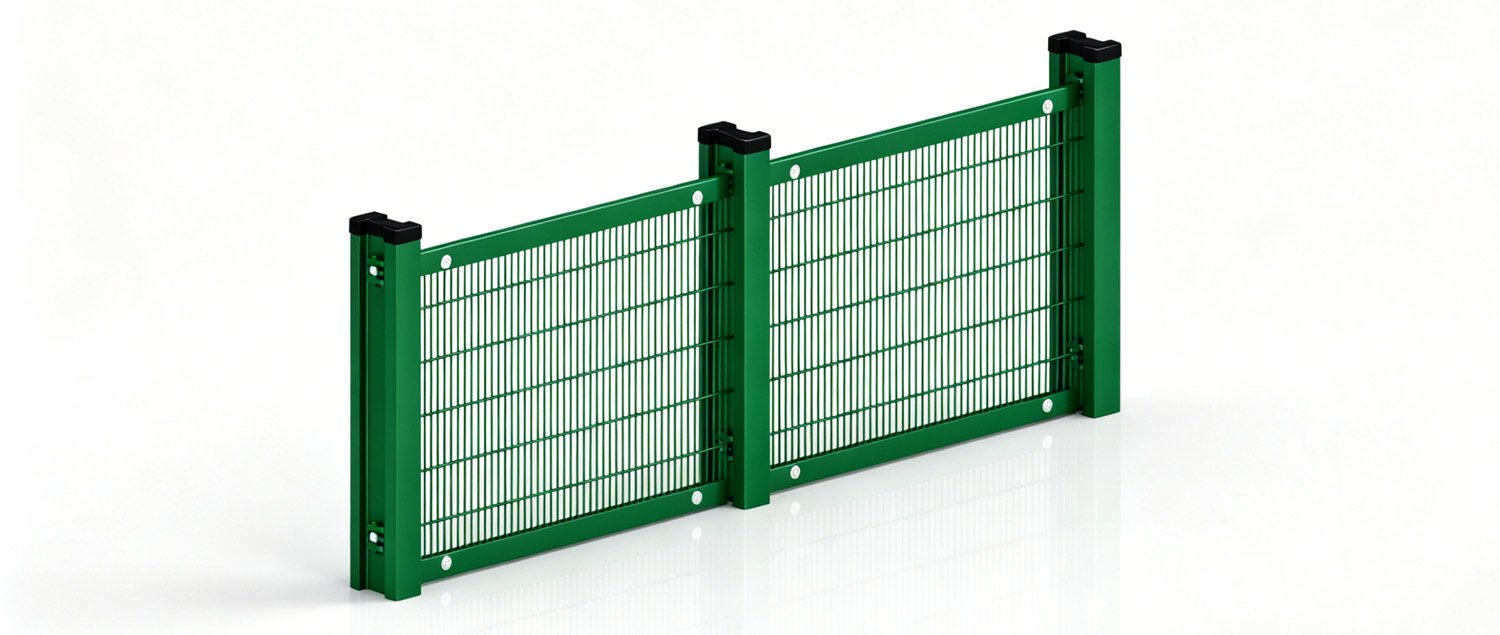

Product Visual

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

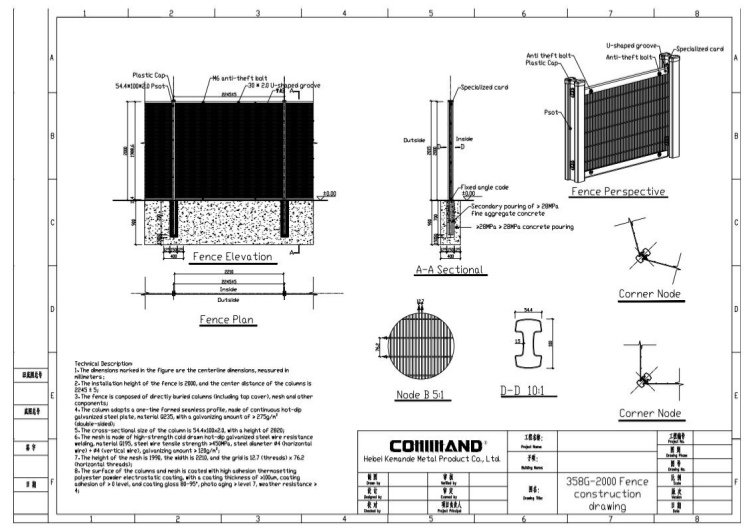

One-Stop Fencing: Smart Design, Global Std

Drawing Deepening Service: Our professional and highly efficient drawing deepening service has significantly reduced on-site adjustment time and errors.
Custom Fencing Solutions: We offer comprehensive one-stop fencing customization services covering the entire process from design to precise construction.
Material Optimization: We recommend optimal material solutions based on specific usage scenarios, striking a perfect balance between cost, durability, and performance.

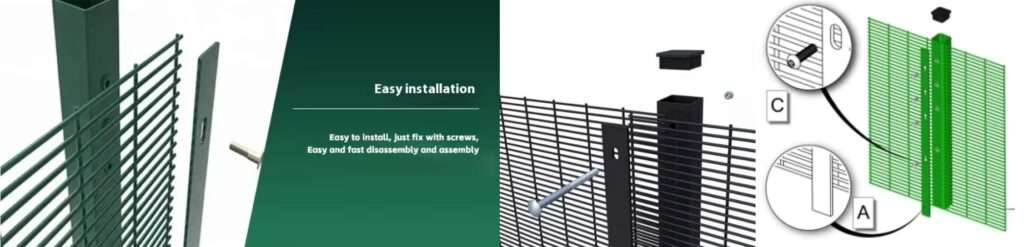

Installation Method

Optional Accessaries

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.

🌟 Our Qualifications 🌟

We adhere to the principle of “quality first”, leveraging advanced equipment and technology to ensure superior products. In service, we uphold the values of honesty, cooperation, and open communication. With our own production workshop, China Fence Company strictly follows ISO management standards throughout procurement, production, sales, and after-sales service.
Below are our certifications:
