Chain Link Fence with Galvanized Coating (GBW) & Profiled Posts D
Introduction
The galvanized chain link fence is a steel wire fence coated with zinc for rust resistance and long-lasting durability before weaving.It features with Ⅰ.BS standard steel wire,Ⅱ.BS standard surface treatment like zinc coating,and Ⅲ.edge treatment.
Features
Ⅰ.We have more varieties of wire diameters
Our galvanized chain link fence wires are manufactured in full compliance with BS 1722-1 (UK standard) and also meet the requirements of the following equivalent international standards:BS 1722-1 (UK): 2.65–4.75 mm wire diameters after galvanizing.ASTM (US): 6–12½ gauge (≈ 2.68–4.88 mm).EN (Europe):1.7–5.0 mm, with zinc ≥ 275 g/m².AS/NZS (Australia & New Zealand): 2.5–4.0 mm galvanized.SANS (South Africa): 2.5–4.0 mm galvanized.
The wires used for chain link fences are first produced as untreated black steel wires. These wires require galvanizing—either by applying a zinc coating or by hot-dip immersion in a zinc bath—to provide corrosion resistance. After galvanizing, the wires are woven into chain link fence mesh panels.
Ⅱ.The chain link fence has high zinc coating weight
The chain link fence has high zinc coating weight,that we can make it with these products of 85g/m²,125g/m²,200g/m²,250g/m²,300g/m²,366g/m²,all products’ weight of galvanizing can be made according to your request.That make sure each product fits your specifice application scenario.
Ⅲ.The chain link fence edge treatment
Chain link fence edges are finished in three main ways: knuckle edge (ends are bent over for safety), twist or barbed edge (ends are twisted to form pointed tips for security), and knuckle and twist edge (one side knuckled and the other twisted to balance safety and security)
Ⅳ.The chain link fence accessaries
Ⅴ.The chain link fence galvanized post
Why choose us?
Our quality compare with others
Our chain link fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.
Single Horizontal Wire Mesh Panel
| Name | Parameter |
|---|---|
| Mesh Panel Height(mm) | 2000/2500/3000 |
| Mesh Panel Width(mm) | 2000/3000 |
| Wire Diameter Before Coating(mm) | Ø3.55/Ø4.75 |
| Wire Diameter After Coating(mm) | Ø4.75/Ø5.80 |
| Tensile Strength(MPa) | 375/500 |
| Mesh Size(mm) | 50 |
| Material | Q195 |
| Zn coating (g/㎡) | 285/366/610 (Comforms to ASTM A392) |
Post Specification
| Name | Parameter |
|---|---|
| Terminal Post Size(mm) | Ø70 /Ø100 |
| Line Post Size(mm) | Ø56 /Ø60 |
| Thickness(mm) | 3.0/4.0 |
| Total Height(mm) | 1650-3300/2400-4600 |
| Material | Q235/Q355 |
| Zn Coating(g/㎡) | 321-610 (Conforms to ASTM A123) |
| Cover | Q235 |
One-Stop Fencing: Smart Design, Global Std
- Drawing Deepening Service:
Our professional and efficient drawing deepening service has significantly reduced on-site adjustment time. - Custom Fencing Solutions:
We offer one-stop fencing customization services covering the entire process from design to construction. - Compliance Assurance:
All our products adhere to international standards. - Material Optimization:
We recommend optimal material solutions based on specific usage scenarios, striking a perfect balance between cost and durability.
Installation Method
Step 1: Assemble the Post Elbow Fittings
- Insert the post into the curved arm base sleeve to a depth of 35 mm.
- Secure it on both sides using M5.5 × 20 mm self-drilling countersunk screws.
Step 2: Assemble the Diagonal Bracing Connectors
- Insert the diagonal brace into the connector base sleeve.
- Secure it on one side using an M5.5 × 20 mm self-drilling countersunk screw.
- Install diagonal braces aligned with the fence installation axis at a height of 1.4 m above ground level, angled at 30° to the post.
- Install additional diagonal braces within the fence boundary, perpendicular to the fence installation axis, also at a height of 1.4 m and at a 30° angle to the post.
Step 4: Install Intermediate Posts
- Space intermediate posts at 2.5 m intervals from the end post, and install a total of 19 consecutive intermediate posts (all posts are interchangeable/universal).
Step 5: Install Reinforced (Braced) Posts
- Along the fence installation axis, install diagonal braces at a height of 1.4 m above ground level (two braces per side, vertically staggered), with one brace on each side of the post, angled at 30° to the post.
- Within the fence boundary and perpendicular to the fence installation axis, install diagonal braces at a height of 1.4 m above ground level, also at a 30° angle to the post.
Secure the tension wire to end and reinforced posts.
Secure the tension wire to intermediate posts.
Offset clamp
Five offset clamps are evenly spaced along both the end post and the reinforced post, through which the tensioned flat steel strap tightens the mesh panel.
Step 8: The mesh is secured to the tensioned wire using dedicated stainless steel clips
- which clamp the chain-link mesh firmly onto the tension wire.
- Six clips are evenly spaced across each 2.5-meter section of mesh.
Step 9: Barbed wire installation
- Each strand of barbed wire shall be seated into the dedicated barbed wire retaining slot in the post head and securely fastened by means of Ø1.0 mm stainless steel lashing wire through the lashing holes located at the base of the retaining slot.
Optional Accessaries

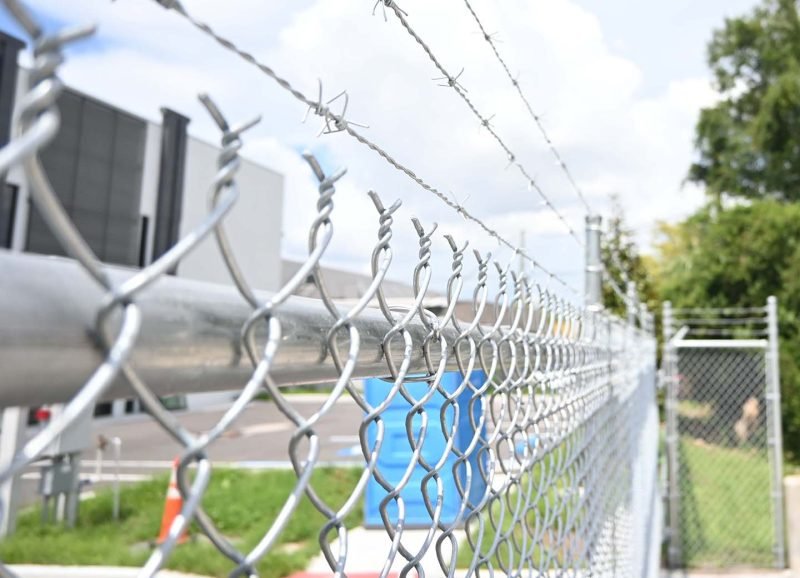

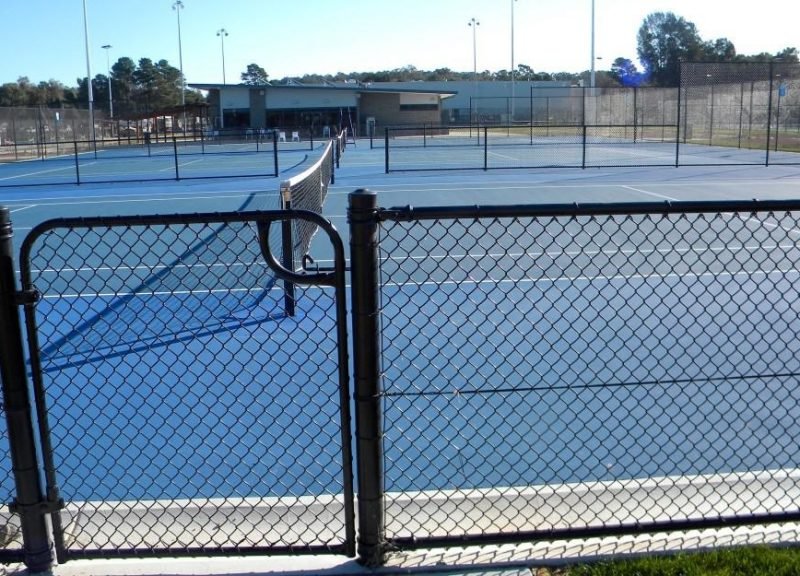

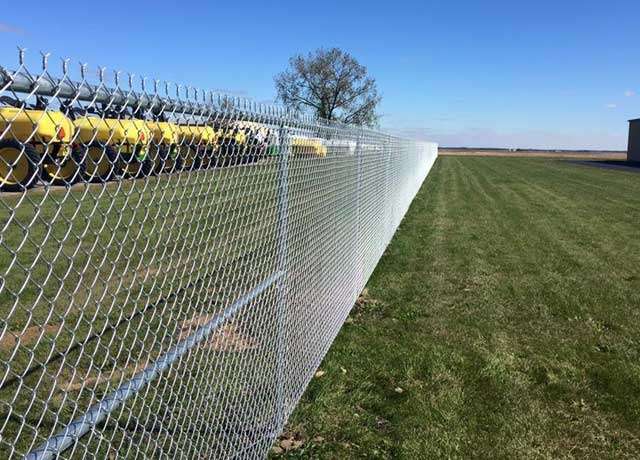

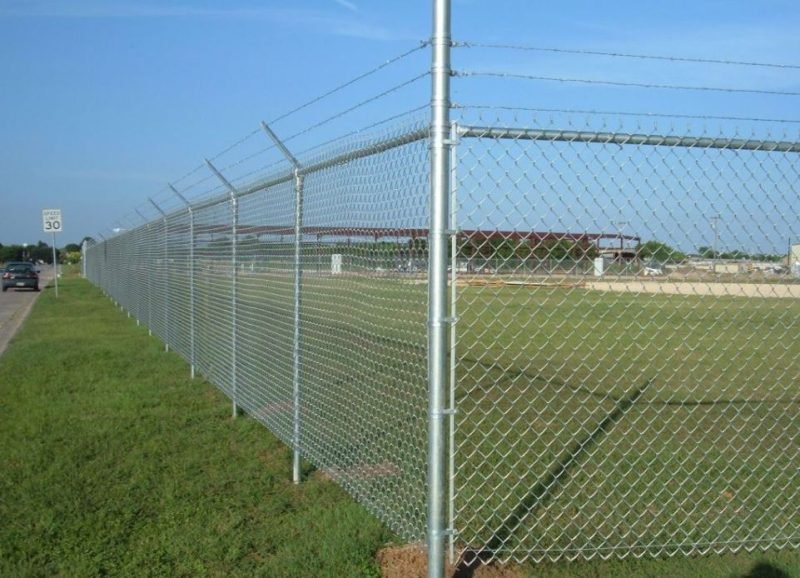

Applications
Frequently Asked Questions for the chain link fence
Who are we?
We are chinese fence company with 3 professsional factories located in Raoyang county ,Hengshui City,Hebei Province.Click here for more info.
What are our chain link fencing products?
Our chain link fences are available in three finishes: post-galvanized, pre-galvanized, and PVC-coated. The PVC coating is classified under ASTM F668 into three types—Class 1 (Extruded), Class 2a (Extruded and Bonded), and Class 2b (Fused and Bonded)—offering increasing levels of adhesion, protection, and durability.
Why buy post galvanized chain link fence?
After learning about its features, you’ll see why post-galvanized chain link fencing is a smart choice. Since we are the factory, we can offer it at a more competitive price compared to fences with double-layer protection such as pre-galvanizing plus PVC coating, which are usually more expensive. With post-galvanizing, you still get strong corrosion resistance, durability, and cost efficiency—making it an excellent balance of quality and value.
Can you design and make as customers’ request?
Sure, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
