TSG Tracked Sliding Gate
Introduction
The TSG Tracked Sliding Gate integrates cutting-edge industrial design and manufacturing technology. It features a high-strength square steel substrate bottom beam, rail operation design, and a top-tier sliding gate motor, combined with an advanced control system. The gate undergoes multiple anti-corrosion processes and is coated with high-adhesion polyester powder, ensuring superior durability. Leading the domestic industry, the TSG gate excels in environmental protection, aesthetic appeal, structural design, safety, and offers an ultra-long service life.
Features
All-Steel High-Strength Structure
The door leaf is constructed using a welded frame structure, significantly enhancing the overall rigidity and strength of the gate.
Advanced Drive System
Equipped with an FAAC imported drive system, the gate provides stable performance with speeds ranging from 9 to 30 m/min. The system also supports remote control, allowing for convenient long-distance operation. Features include automatic delay for shutdown and activation, and status displays (on, off, run).
In case of a power outage, the gate can easily switch from electric to manual mode, ensuring smooth operation even in emergencies.
Excellent Anti-Corrosion Performance
The gate offers outstanding anti-corrosion protection, backed by a 10-year quality guarantee.
The base material is hot-dip galvanized with a zinc coating of ≥120 g/m² (double-sided).
The gate undergoes 19 pre-treatment processes, ensuring superior coating adhesion (Grade 0).
Aksu specialized outdoor powder coating protects the gate from peeling, powdering, and flaking.
Colors Available
Popular colors
All other colors
Gallery

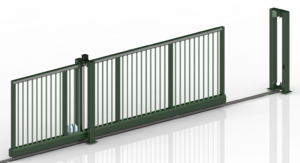

1, TSG Tracked Sliding Gate
Gate specification
| Item | Parameter |
|---|---|
| Width(mm) | 6000/8000/10000/12000/15000 |
| Height(mm) | 1600/1800/2000/2500/3000 |
| Bottom Beam Size(mm) | 150 * 200 * 5.0 |
| Bottom beam material | Q235 |
| Drive system | FAAC844ER |
| Control mode | Remote control/line control |

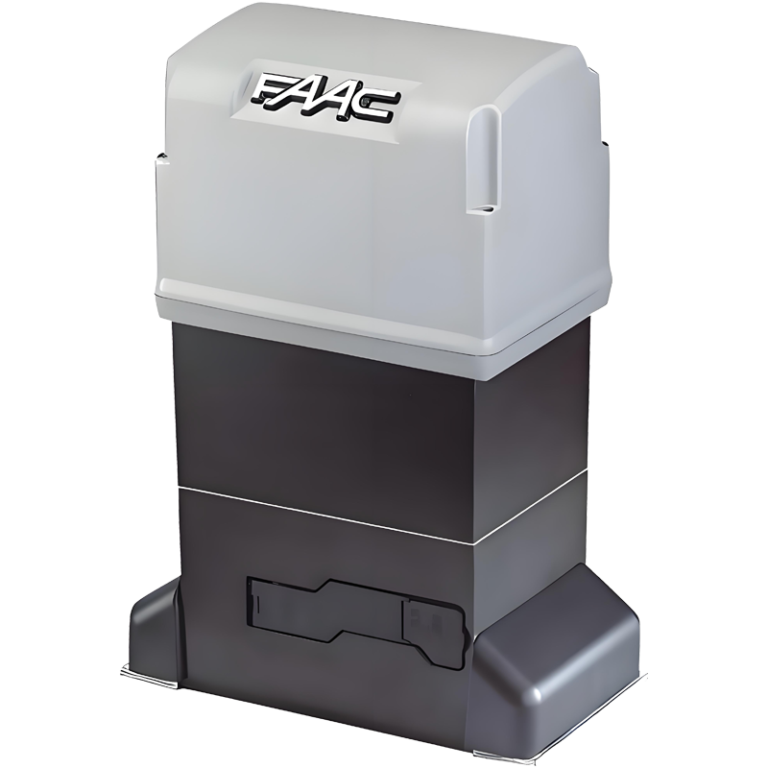

2, Electric Motor
Post for the gate and its specification
| Item | Parameter |
|---|---|
| Brand | FAAC Italy |
| Type | 844ER |
| Authentication | Conformité Européenne |
| Transmission mode | Rack and pinion |
| Limiting method | Magnetic induction limit |
| Clutch | Oil immersed double disc |
| Running speed（m/min） | 9～12 |
| Voltage(Vac +6% -10%; 50-60Hz) | 230 |
| Absorbed power(W) | 650 |
| Protection grade | IP44 |
| Ambient temperature（℃） | -20 ～ +55 |
| Maximum thrust(daN) | 110 |

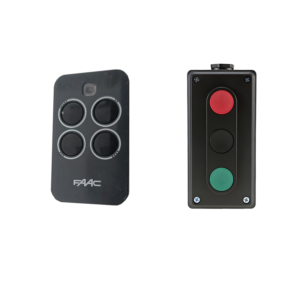

3, Remote Control
Control method:
Control System Functions
Supports multiple control modes, including remote control, button switch, and long-range control.
Features safety functions such as gate-closing collision prevention and operational warnings.
Equipped with an overheating and overload protection system to safeguard the gate’s operation.
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The entire substrate is hot-dip galvanized with a zinc coating of 80-120g/m², and the outer layer is coated with polyester electrostatic powder, featuring a thickness of 100-120μm.
Over 200 RAL color options are available to suit various aesthetic and functional requirements.
The complete gate assembly is hot-dip galvanized with a zinc coating of 550g/m², ensuring outstanding durability and longevity.
This robust and versatile swing gate is ideal for managing access in both standard and high-security areas while ensuring long-lasting performance in diverse environmental conditions.
5, Optional Accessaries
Reference
