TSG
Tracked Sliding Gate

Introduction

The TSG Tracked Sliding Gate integrates cutting-edge industrial design and manufacturing technology. It features a high-strength square steel substrate bottom beam, rail operation design, and a top-tier sliding gate motor, combined with an advanced control system. The gate undergoes multiple anti-corrosion processes and is coated with high-adhesion polyester powder, ensuring superior durability. Leading the domestic industry, the TSG gate excels in environmental protection, aesthetic appeal, structural design, safety, and offers an ultra-long service life.

TSG Tracked Sliding Gate
Gate Track & Post
Item Parameter Item Parameter
Opening Width (mm)
Height (mm)
4,000–10,000
1,500–2,500
Guide Post Size (mm) 120×120 / 150×150
Material Q235B Wall Thickness (mm) 4.0–6.0
Frame & Infill Square steel tube frame
with vertical tube infill
Track Type Heavy-duty steel
ground track
Opening Electric horizontal sliding gate Installation Base plate mounted
Voltage (V AC)
Frequency (Hz)
Motor
220
50
Sliding gate motor with manual release
Wheel System Heavy-duty steel rollers
Control Remote control and
access-control connection
Receiving Post Heavy-duty steel
receiving post
Safety Limit switch
Photocell
Emergency stop

Product Visual

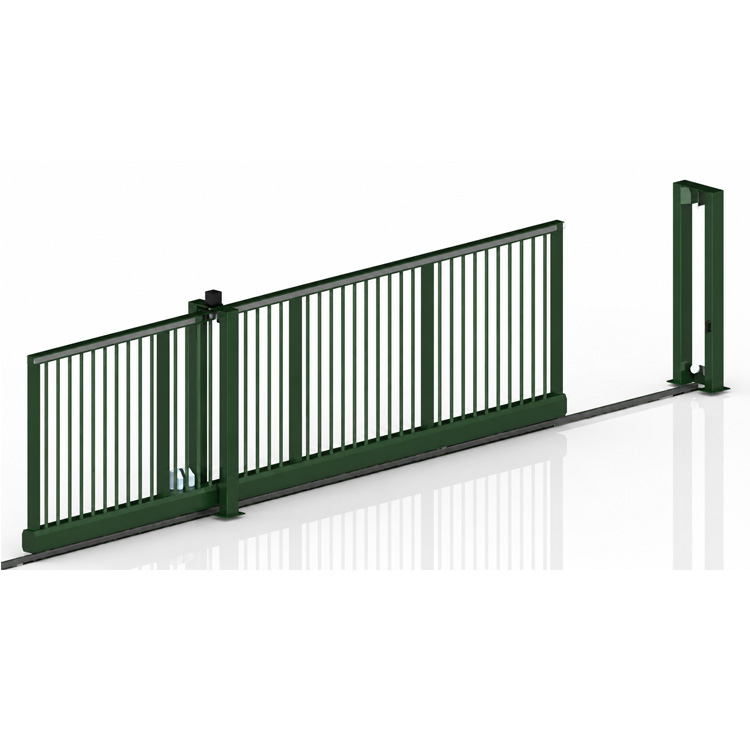

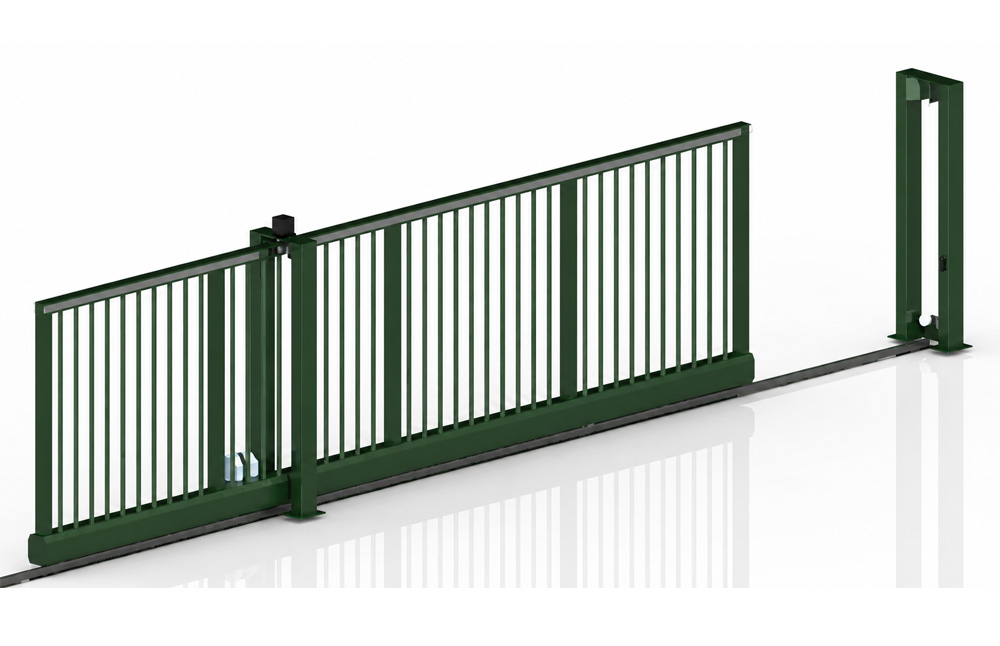

TSG Tracked Sliding Gate

Gate

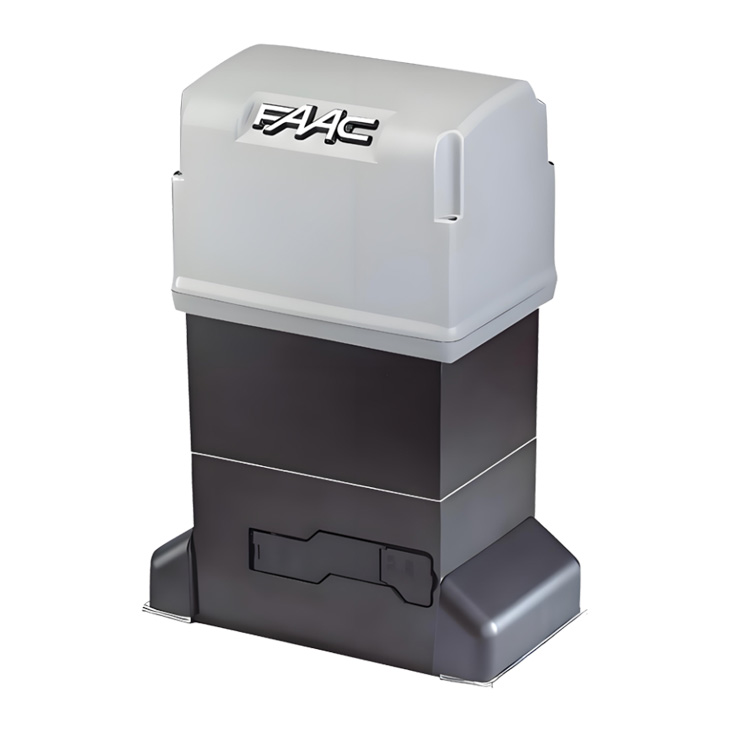

Electric Motor

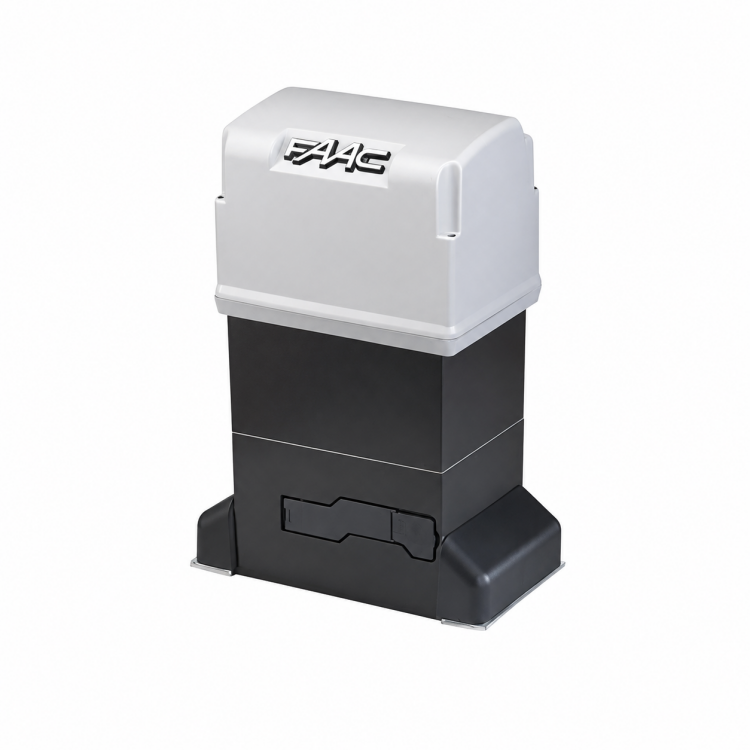

Electric Motor

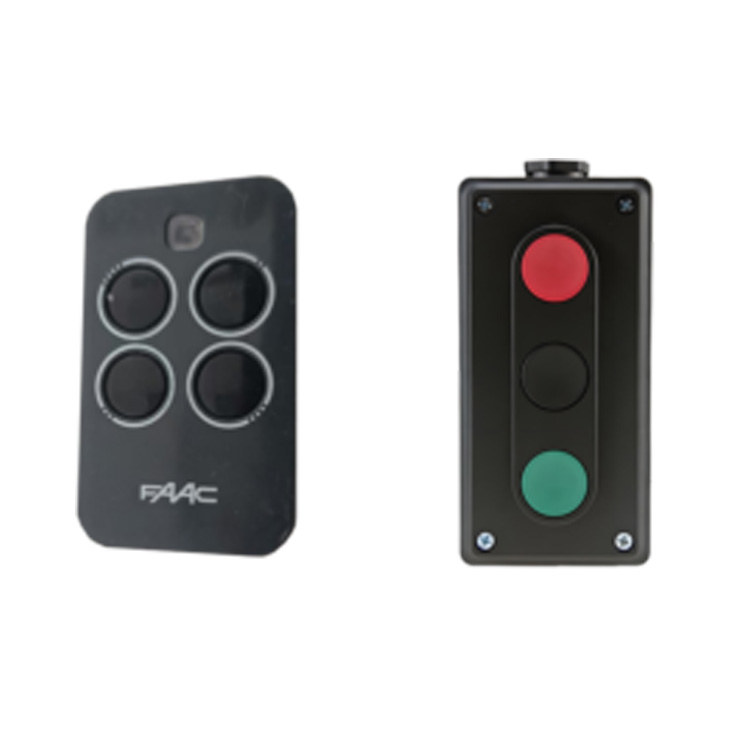

Remote Control

Remote Control

Anti-rust Treatment

ItemSpecification
Class 1HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.

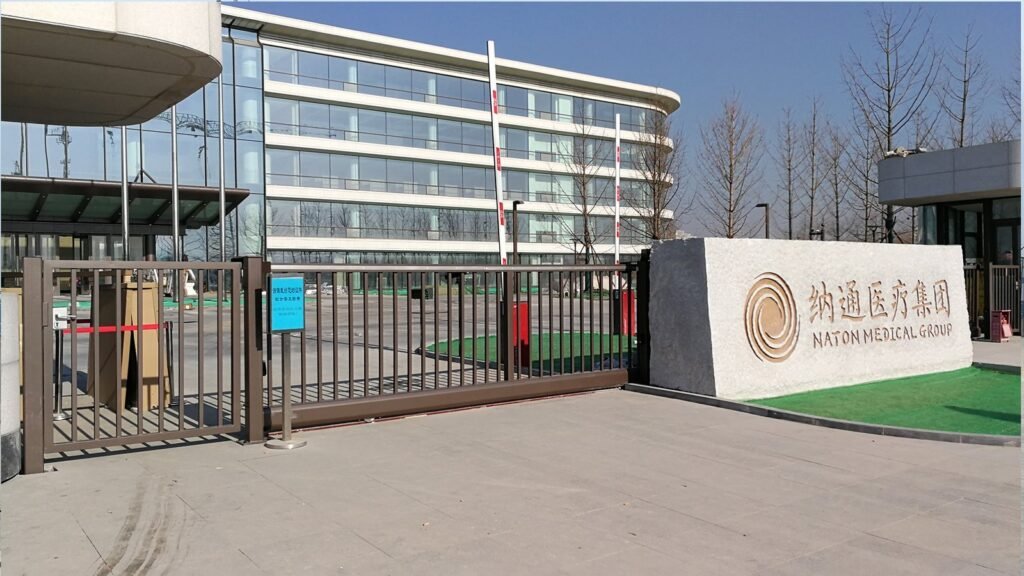

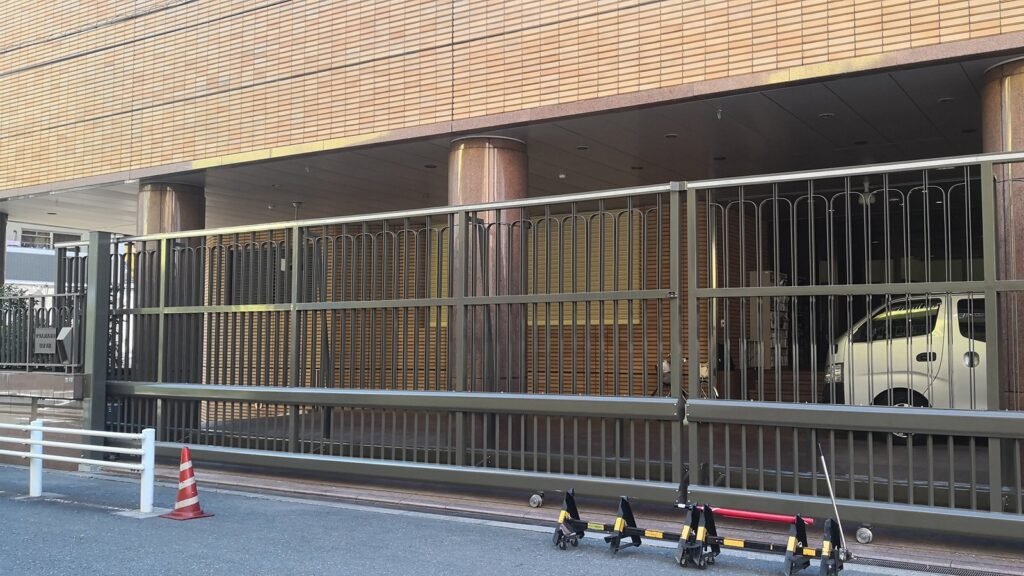

Gallery

Colors Available

RAL 6005
Moss Green
CMYK 100 60 90 20
RAL 7016
Anthracite Grey
CMYK 60 30 30 80
RAL 5005
Signal Blue
CMYK 100 40 0 40
RAL 1021
Rapeseed Yellow
CMYK 0 10 100 0
RAL 9003
Signal White
CMYK 0 0 0 0
