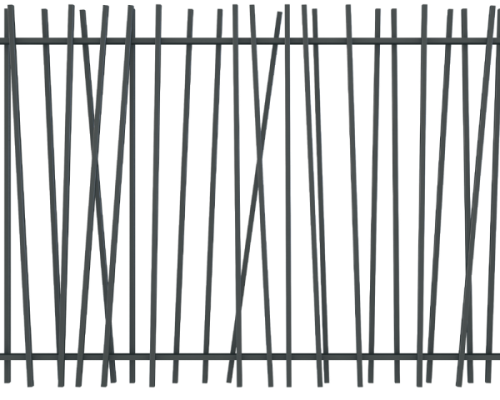

FR Fence/Railing Bamboo Style Panels & Profiled Post B
Introduction
Bring nature-inspired beauty to your property with the FR Fence/Railing Bamboo Style Panels, combined with our precision-engineered Profiled Post B. This stylish fencing system captures the look and feel of real bamboo, offering a refined and contemporary aesthetic that blends effortlessly into any outdoor environment.
Crafted for those who value both design and durability, the FR bamboo-style panels are a visually stunning alternative to traditional fencing. Whether you’re framing a garden, balcony, terrace, or commercial space, this system adds an elegant, organic touch while maintaining structural integrity and ease of installation.
Features
Stylish Bamboo Look:
Mimics natural bamboo for a warm, inviting appearance.
Clean & Minimalist Design:
The pure, uniform panel lines provide visual harmony and architectural appeal.
Discrete and Private:
Offers subtle privacy without compromising on light or space.
Streamlined Installation:
Profiled Post B ensures fast, sleek mounting with a secure finish.
Colors Available
Popular colors
All other colors
Gallery
1, Single Horizontal Wire Mesh Panel
Mesh Height(mm)1000-2430,Mesh Width(mm) 2000/2500,Wire Diameter(mm)
Ø4.0/Ø4.5,Vertical Wire Spacing(mm) 76.5/100,Horizontal wire spacing (mm) 12.5 Material Q195 Cover ABS Zn coating (g/㎡) 80-120ColorRAL Color Series
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2000/2500 |
| Wire Diameter(mm) | Ø4.0/Ø4.5 |
| Vertical Wire Spacing(mm) | 76.5/100 |
| Horizontal wire spacing (mm) | 12.5 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
2, Post Parameters
Post specifications
| Name | Parameter |
|---|---|
| Size(mm) | 54.4 * 100 |
| Thickness(mm) | 1.5/2.0 |
| Height | 1000-3000 |
| Zn coating | 80-120 g/㎡ |
| Material | Q235 |
| Color | RAL Color Series |
| Cover | ABS |
3, Mesh Connection
Connection method:
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Reference
What Our Clients Say
As one of the popular fences, we sold 10000m welded mesh fence to our distributor every month.
2023,40000m welded wire mesh fence for Thailand
2024,10000m welded wire mesh fence for Chancay Port Lima,Peru
2025,50000m welded mesh fence for Rwanda
Frankly speaking, I was looking for a stable supplier in China, and I was very satisfied with the quality of the supplier with its own factory owned by ChinaFenceCompany. Especially after we met in China I decided to have longer partnership with them. They are very very professional and have solved all my doubts about product technology, packaging and shipping information. They are very professional compared with other suppliers. And because of that,the ChinaFenceCompany team is more confident and proud of the high end products. There is a 12 hour time difference between my country and China, but I can still get online services every day. It’s awesome!
-Jason (Distributor)
I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name “O”), and the second is ChinaFenceCompany. I like to work with “O” because they can not customize high end fencing products. I like working with ChinaFenceCompany because ChinaFenceChina is professional and dedicated and can tailor make products. In 2024, I got a larger order, which was very difficult to fabricate, so I divided it into 2 parts for “O” and ChinaFenceCompany. One day, I came to China. According to the schedule, I met company “O” on the first day, and at 9:00 AM the next day I planned to meet ChinaFenceCompany. On the first day I had dinner with company “O”. It was late at night about 12:30 when I returned to the hotel, and I sent ChinaFenceCompany a message that the meeting would be postponed until the afternoon at 1:30 instead of the morning time. And I got a reply immediately surprisingly. I feel so sorry that I disturbed ChinaFenceCompany’s sleep at 12:30am. In the next day learned: In order to ensure quality, ChinaFenceCompany sales team has been in factory for 2 days and 1 night. Since then ChinaFenceCompany has become my only supplier.
-Mark (Distributor)
My name is Danial from South Africa and we were a very small trader a few years ago moved from America. We buy fences from locals.One day I saw ChinaFenceCompany website www.chinafencecompany.com . Their prices are very good and the quality is super good. We talked a lot with each other. I am very satisfied with the team.
-Danial (Trader)
I ‘m Muhammad from Dubai. I met ChinaFenceCompany at the Canton Fair a few years ago. At that time I was bidding for a military high security project. A very large nation level project. In fact, I am not professional with fencing industry. But the team are so patient to give me sufficient information ,it is like training ,so when had a chance to bid for the large project, and I came back to ChinaFenceCompany again. ChinaFenceCompany helped me find the best solution, we got tender together and cooperated happily. I am very grateful to ChinaFenceCompany.
-Mohammed (Contractor)
Packaging and Shipping
