DSG Double Panel Side-hung Swing Gate

Introduction

Adjustable Design

Equipped with stainless steel adjustable ball-joint hinges for precise alignment and durability.

Specialized Locking Mechanism

Includes stainless steel specialized locks to enhance security and adaptability to various applications.

Superior Anti-Corrosion Performance

Provides exceptional anti-corrosion performance, supported by a 10-year anti-corrosion quality assurance.
Fabricated from hot-dip galvanized base material with a zinc coating of ≥ 120g/m² (double-sided).
Undergoes 19 pre-treatment processes, ensuring superior coating adhesion (Level 0).
Coated with Aksu specialized outdoor powder to prevent peeling, powdering, and flaking, ensuring long-term performance.

DSG Double panel side-hung swing gate
Adjustable Design

Equipped with stainless steel adjustable ball-joint hinges for precise alignment and durability.

Specialized Locking Mechanism

Includes stainless steel specialized locks to enhance security and adaptability to various applications.

Superior Anti-Corrosion Performance

Provides exceptional anti-corrosion performance, supported by a 10-year anti-corrosion quality assurance.
Fabricated from hot-dip galvanized base material with a zinc coating of ≥ 120g/m² (double-sided).
Undergoes 19 pre-treatment processes, ensuring superior coating adhesion (Level 0).
Coated with Aksu specialized outdoor powder to prevent peeling, powdering, and flaking, ensuring long-term performance.

Wire Mesh Panel Fence Post
Item Parameter Item Parameter
Mesh Height (mm) 1430-2030 Size(mm) 60 * 90
Mesh Width 2500 Thickness(mm) 2.0
Horizontal Bar Size (mm) 6×12 flat steel Material Q235
Verticle Wire Size(mm) Ø5.0/Ø6.0 Height(mm) 1900/2100
Vertical Wire Spacing (mm) 50 Cover ABS
Horizontal Wire Spacing (mm) 200
Material Q195

Product Visual

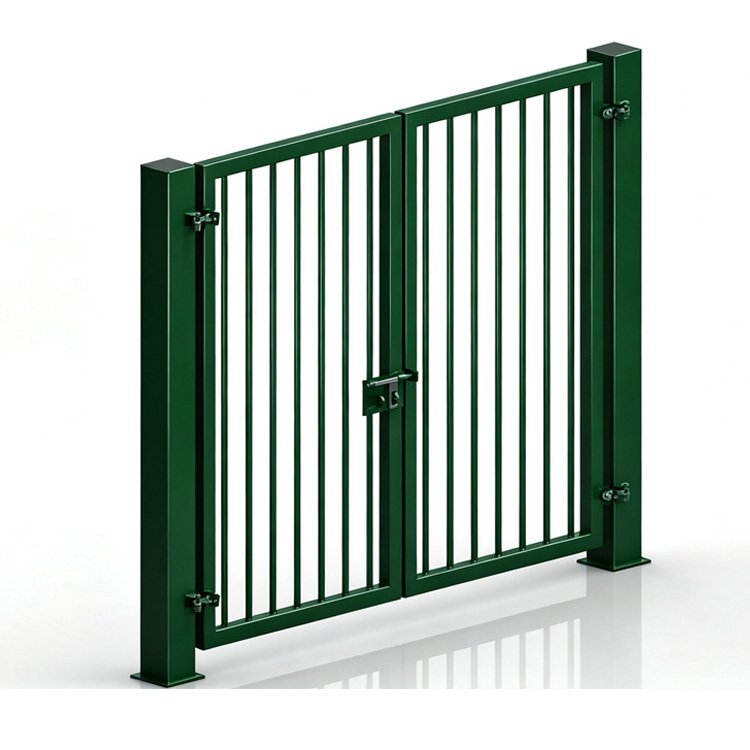

DSG Double panel side-hung swing gate

Gate

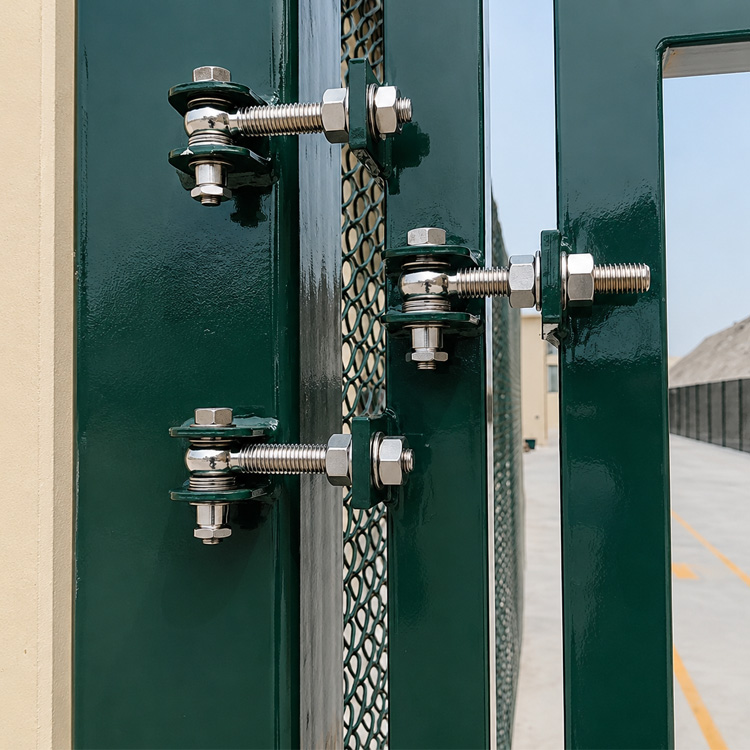

Panel Connection

Panel Connection

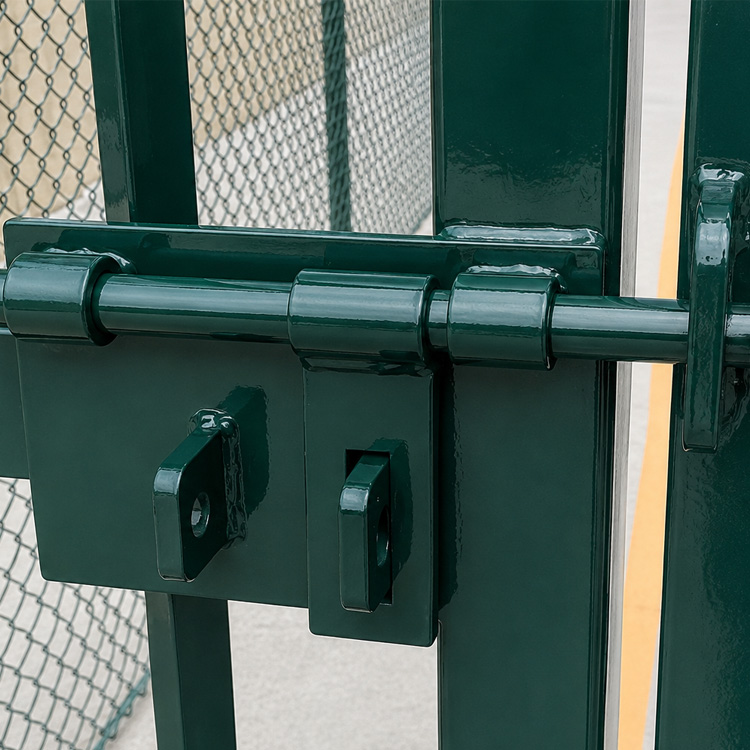

Gate Hinge

Gate Hinge

Anti-rust Treatment

ItemSpecification
Class 1HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.

Gallery

Colors Available

RAL 6005
Moss Green
CMYK 100 60 90 20
RAL 7016
Anthracite Grey
CMYK 60 30 30 80
RAL 5005
Signal Blue
CMYK 100 40 0 40
RAL 1021
Rapeseed Yellow
CMYK 0 10 100 0
RAL 9003
Signal White
CMYK 0 0 0 0
