DSG Double panel side-hung swing gate
Introduction
The double-leaf swing gate is specifically designed for personnel management and fire escapes. It supports manual and electric opening/closing, as well as automatic closing with a manual door closer. Locks can be tailored to different scenario requirements, including handle locks, latch locks, and electromagnetic locks. The gate shafts can be equipped with adjustable stainless steel ball hinges and heavy-duty gate-closing hinges, ensuring flexibility and robust performance.
Features
Adjustable Design
Equipped with stainless steel adjustable ball-joint hinges for precise alignment and durability.
Specialized Locking Mechanism
Includes stainless steel specialized locks to enhance security and adaptability to various applications.
Superior Anti-Corrosion Performance
Provides exceptional anti-corrosion performance, supported by a 10-year anti-corrosion quality assurance.
Fabricated from hot-dip galvanized base material with a zinc coating of ≥ 120g/m² (double-sided).
Undergoes 19 pre-treatment processes, ensuring superior coating adhesion (Level 0).
Coated with Aksu specialized outdoor powder to prevent peeling, powdering, and flaking, ensuring long-term performance.
Colors Available
Popular colors
All other colors
Gallery

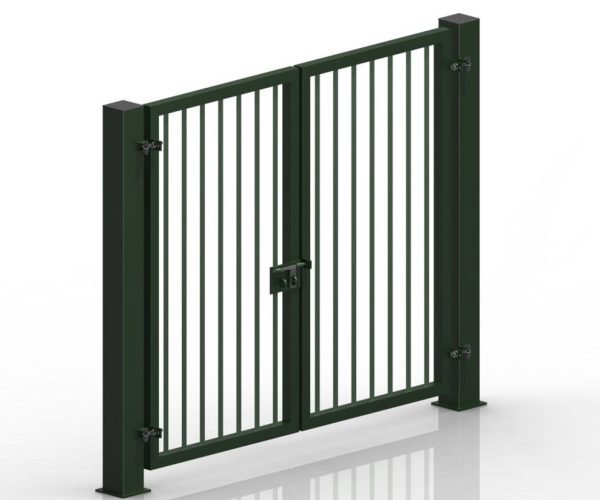

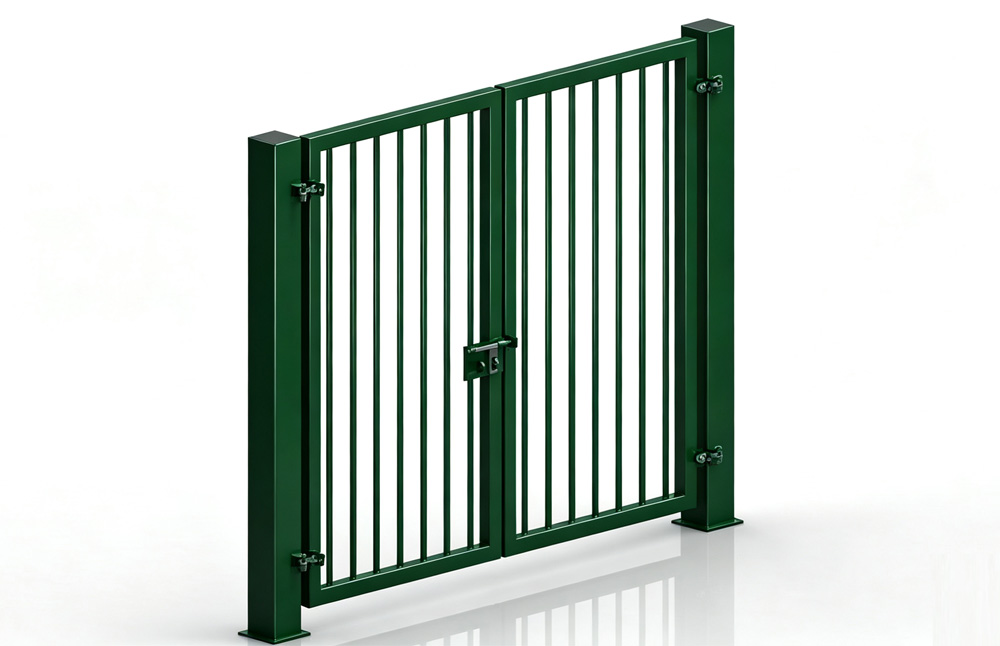

1, DSG Double panel side-hung swing gate
| Item | Parameter |
|---|---|
| Width (mm) | 3000/4000/6000/8000 |
| Height (mm) | 1800/2000 |
| Opening mode | Manual/semi-automatic/electric |
| Opening angle | 0-90 ° |

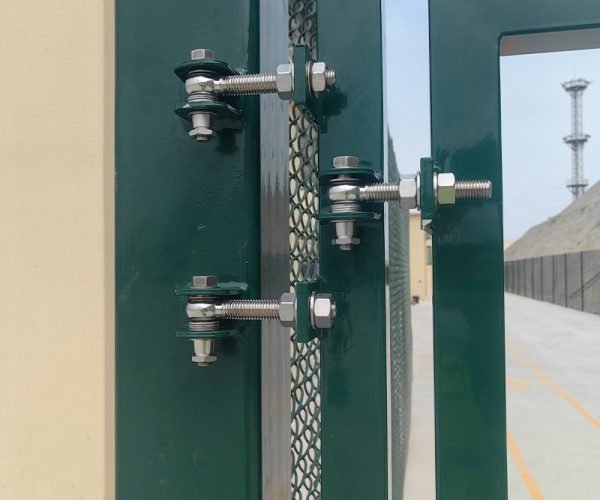

| Hinge | Stainless steel ball joint hinge |

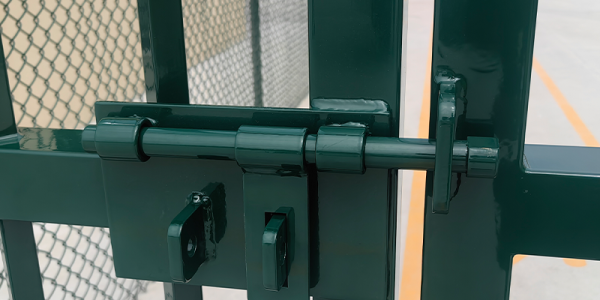

| Lock | Bolt lock |
| Post size(mm) | 80 * 80 * 2.5/100 * 100 * 4/150 * 150 * 5 |
| Frame(mm) | 40 * 60 * 1.5/60 * 60 * 1.5 |
| Vertical pole(mm) | 25 * 25 * 1.0 |
2, Post Parameter
| Name | Parameter |
|---|---|
| Size(mm) | 54.4 * 100 |
| Thickness(mm) | 1.5/2.0 |
| Material | Q235 |
| Height | 500-3000 |
| Zn coating | 80-120 g/㎡ |
| Color | RAL Color Series |
| Cover | ABS |
3, Secure Connections
The integrated design connects the column to the mesh with dedicated fittings and anti-theft bolts, offering a robust anti-theft function.
4, Surface Technology
Substrate is hot-dip galvanized with a zinc coating of 80-120g/m², while the outer coating features a polyester electrostatic powder application with a thickness of 100-120μm.
Available in over 200 RAL colors to suit diverse aesthetic and functional requirements.
The complete assembly is hot-dip galvanized with a zinc coating of 550g/m², delivering outstanding durability and longevity.
This double-leaf swing gate combines advanced functionality, exceptional corrosion resistance, and a robust locking system, making it an ideal choice for a wide range of applications requiring reliable access control and durability.
