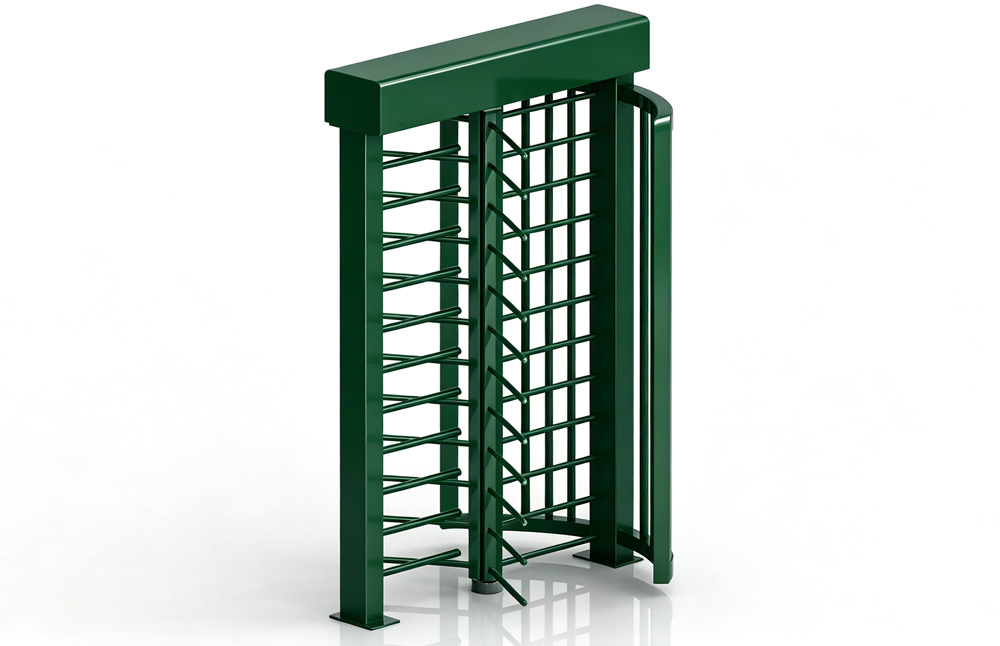

FHT-Full Height Turnstile
Introduction
The FHT full-height turnstile is a sophisticated access control solution designed for high-security areas. It features a circular cage, a central shaft, a three-speed 120-degree rotating gear lever, and a control drive box beam. This turnstile provides two-way access control with an adjustable throughput capacity of 10-20 people per minute. Available in both single-channel and dual-channel configurations, the FHT is ideal for managing pedestrian flow, authorization, and entry/exit records in secure environments.
Features
Innovative Design
Unique structural design with an automatic recognition function.
Integrated reverse braking mechanism for enhanced security.
Automatic adaptation feature ensures smooth operation.
Includes an automatic reset function for improved reliability.
Advanced Control Features
Comprehensive control options with standardized external electrical interfaces.
Fire communication interface for emergency scenarios.
Security alert interface for enhanced safety monitoring.
Automatic reset functionality ensures quick recovery after power outages.
Superior Anti-Corrosion Performance
Offers 10 years of anti-corrosion quality assurance.
Base material: Hot-dip galvanized steel with a zinc coating of ≥ 120g/m² (double-sided).
Includes 19 pre-treatment processes, providing exceptional coating adhesion (Level 0).
Coated with Aksu specialized outdoor powder, ensuring resistance to peeling, powdering, and flaking.
Colors Available
Popular colors
All other colors
Gallery
1, FHT-Full Height Turnstile
Specifications
| Item | Parameter |
|---|---|
| Width (mm) | 1510 |
| Height (mm) | 2275 |
| Opening direction | Bidirectional |
| Rotation angle | 3*120° |
| Protection level | IP54 |
| Turnover rate | 20P/min |
| Working mode | Electromagnetic/Motor |
2, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
Substrate: Hot-dip galvanized with a zinc coating of 80-120g/m² for long-term durability.
Outer coating: Sprayed with polyester electrostatic powder, featuring a coating thickness of 100-120μm.
Over 200 RAL colors available to meet diverse design needs.
Complete assembly is hot-dip galvanized with a zinc coating of 550g/m², offering exceptional protection and longevity.
The FHT full-height turnstile combines cutting-edge design, advanced control capabilities, and outstanding durability, making it the ideal choice for secure and efficient pedestrian access management.
3, Optional Accessaries

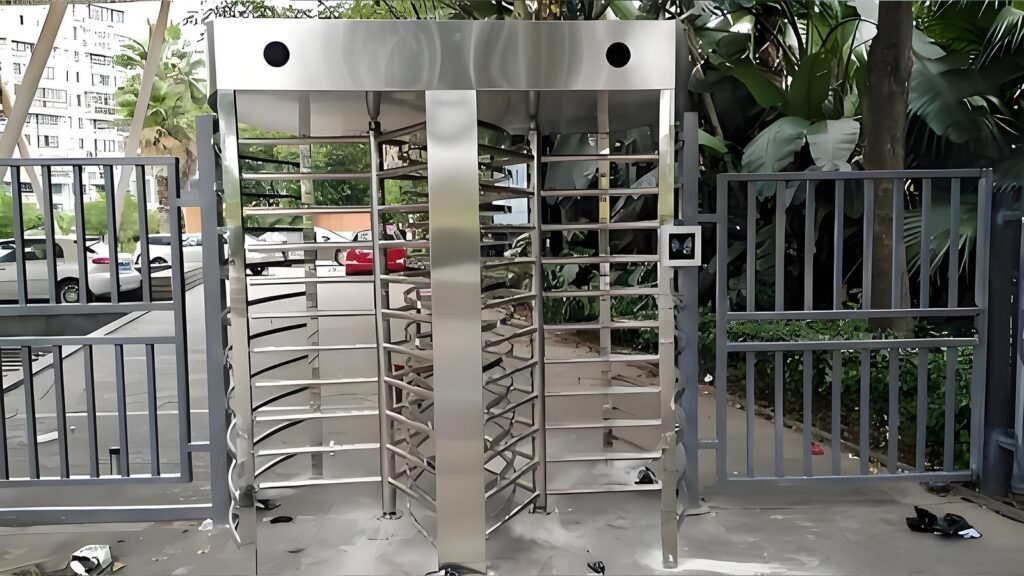

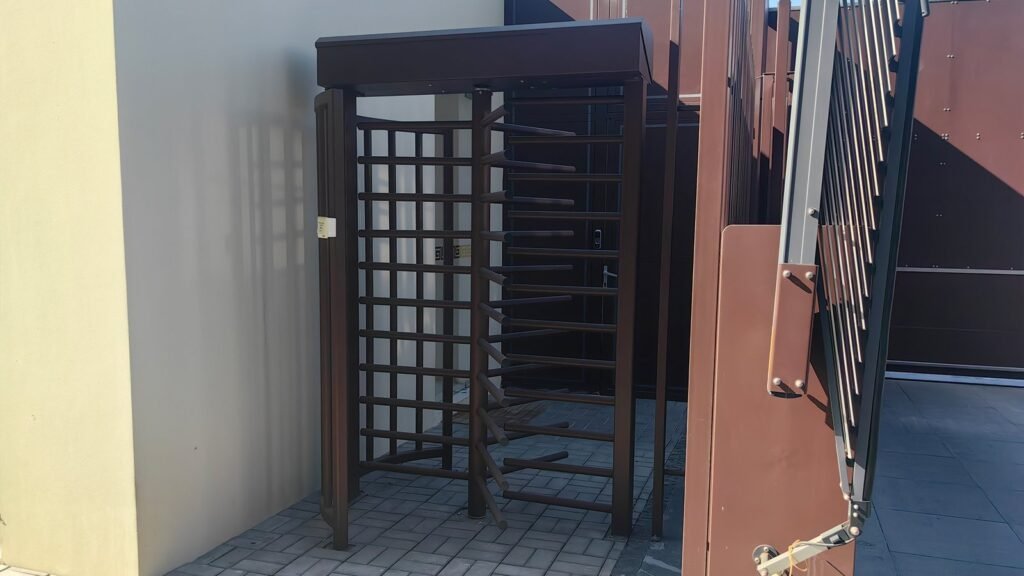

Reference
