358F 3D
Small aperture clear view fence

Introduction

This fence system is composed of cold-formed square shaped posts and 358 welded mesh, offering exceptional resistance to riots, cutting, and disassembly. The integrated design of the posts connects securely to the mesh through dedicated interlocks and anti-theft bolts, ensuring adaptability to uneven terrain and versatile installation angles. The product supports flexible installation methods, including push-type assembly or sequential installation of posts followed by the mesh, providing a convenient and efficient setup process.

Wire Mesh Panel		Fence Post
Item	Specification	Item	Specification
Mesh Height (mm)	1000–2400	Post Size (mm)	60 × 90
Mesh Width (mm)	2500/3000	Thickness (mm)	1.5/2.0/3.0
Wire Diameter (mm)	Ø4.0	Height (mm)	500–3000
Vertical Wire Spacing (mm)	76	Material	Q235
Horizontal Wire Spacing (mm)	12.5	Post Cap	ABS
Material	Q235

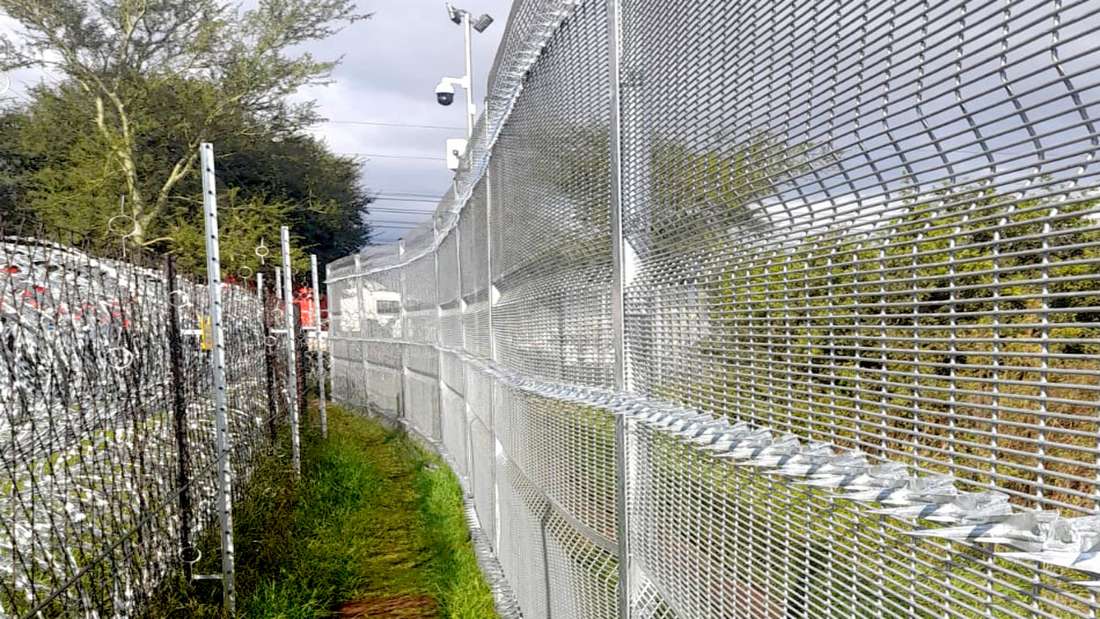

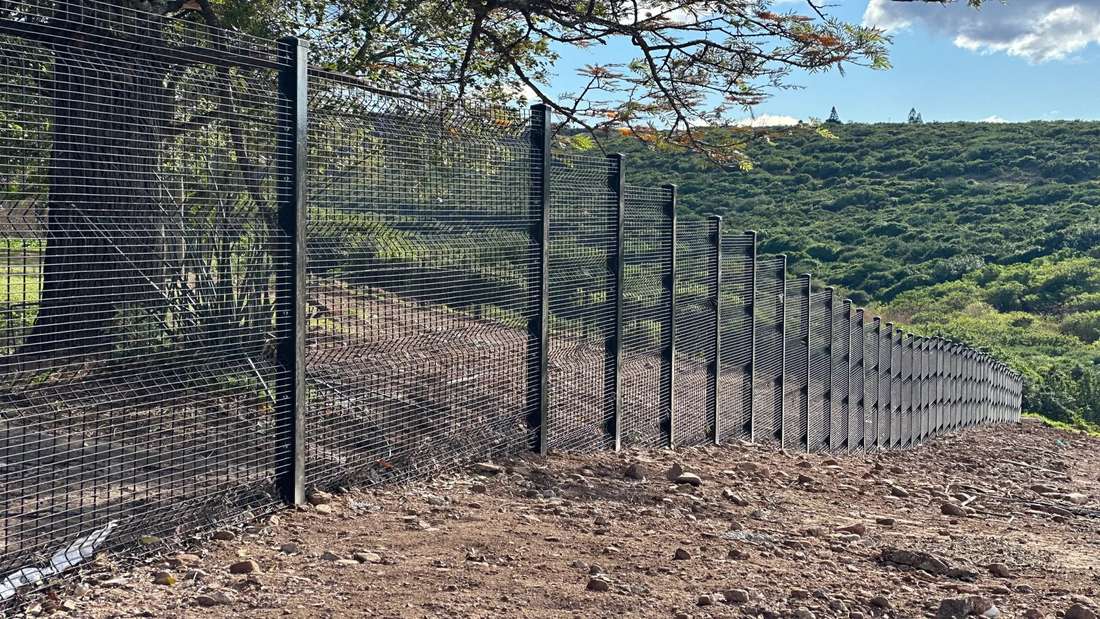

Product Visual

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.
