YR Square Tube Fence/Railing Panels & Profiled Post S
INTRODUCTION
The YR Special Shaped Post Railing features special-type posts and welded square tube fence panels, assembled with universal die-cast aluminum connectors and post caps. Its streamlined design combines traditional Oriental aesthetics with modern stability, creating a visually elegant and stable structure. The unique universal hinge connection design between the posts and fence panels allows for flexible installation at various angles. The surface is treated with hot-dip galvanizing and electrostatic powder coating, offering superior anti-corrosion performance.
FEATURES
Aesthetic
Streamlined structural design, beautiful and three-dimensional;
Universal joint connection structure design, adaptable to installation at any angle;
Die cast aluminum column caps and connectors completely solve the problem of rusting in weak anti-corrosion areas;
Durability
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;
Practicality
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 2000/2500/3000 |
| Mesh Width(mm) | 2000/3000 |
| Wire Diameter Before Coating(mm) | Ć3.55/Ć4.75 |
| Wire Diameter After Coating(mm) | Ć5.00/Ć6.40 |
| Tensile Strength(MPa) | 375/500 |
| Mesh Size(mm) | 50 |
| Material | Q195 |
| Zn coating (g/ć”) | ā„80 |
| Color | RAL Color 6005(blackish green) |
| Name | Parameter |
|---|---|
| Size(mm) | 70 * 100 |
| Thickness(mm) | 1.0/1.2/1.5 |
| Material | Q235/DC51D |
| Height | 1000-3000 |
| Material | Q235/DC51D |
| Zn coating | 80-120 g/ć” |
| Color | RAL Color Series |
| Cover | ABS |
Post
Connection
U-shaped connectors are connected with stainless steel anti disassembly bolts.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m Ā², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m Ā².
Surface Technology

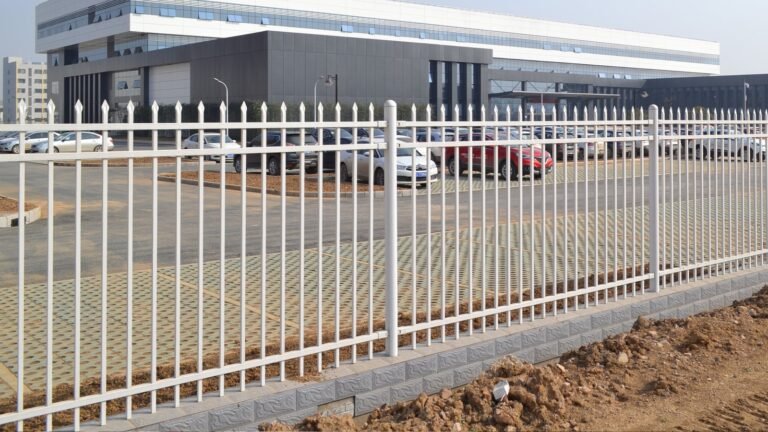

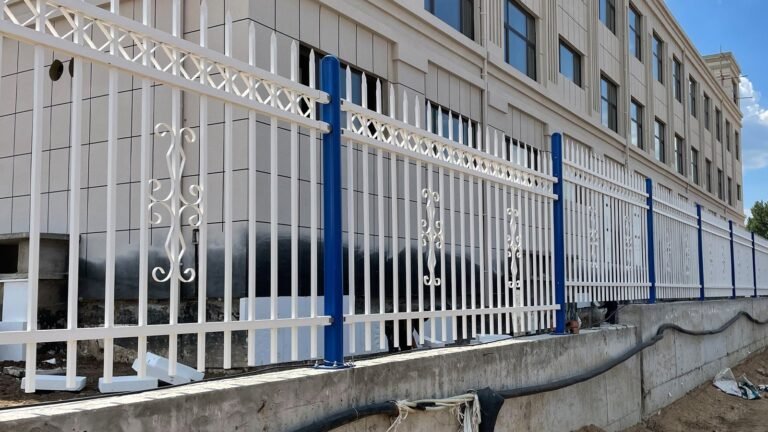

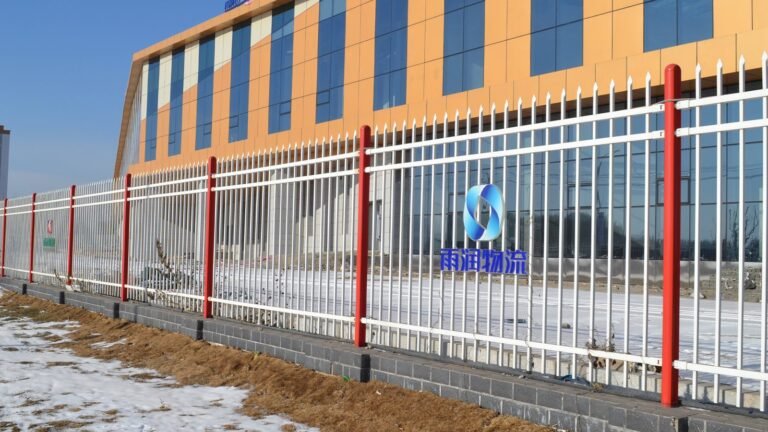

PROJECTS OF APPLICATION SCENARIOS
