Vehicle access control barrier
Introduction
Elevate the security and efficiency of any site with our premium manual and automated vehicle access barriers, seamlessly integrated into our professional fencing systems. Designed to offer unparalleled reliability, access control, and exceptional quality, they are ideal for commercial parks, industrial zones, residential estates, toll facilities, and high‑security perimeters.
Features
Complete product range
From compact manual gates to heavy-duty automated boom systems spanning up to 15 m, we offer the perfect solution for any passage width and traffic volume
Rock-solid reliability
Heavy-duty motors rated for continuous use, robust gearboxes, and steel enclosures ensure long-term, low-maintenance performance—even under harsh weather or high-frequency cycles
Smart access control
Seamlessly integrate RFID, card readers, biometric scanners, inductive loops, or license-plate recognition for smooth, secure, and automated vehicle identification
Highest build quality
Constructed from galvanized or powder-coated steel, reinforced arms and optional skirts resist impact, vandalism, and extreme conditions. Colored to spec for visibility and branding flexibility
Colors Available
Popular colors
All other colors
Gallery
1, Single Horizontal Wire Mesh Panel
Mesh Height(mm)1000-2430,Mesh Width(mm) 2000/2500,Wire Diameter(mm)
Ø4.0/Ø4.5,Vertical Wire Spacing(mm) 76.5/100,Horizontal wire spacing (mm) 12.5 Material Q195 Cover ABS Zn coating (g/㎡) 80-120ColorRAL Color Series
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2000/2500 |
| Wire Diameter(mm) | Ø4.0/Ø4.5 |
| Vertical Wire Spacing(mm) | 76.5/100 |
| Horizontal wire spacing (mm) | 12.5 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |

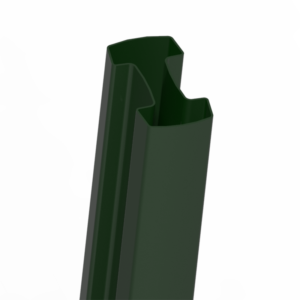

2, Post Parameters
Post specifications
| Name | Parameter |
|---|---|
| Size(mm) | 54.4 * 100 |
| Thickness(mm) | 1.5/2.0 |
| Height | 1000-3000 |
| Zn coating | 80-120 g/㎡ |
| Material | Q235 |
| Color | RAL Color Series |
| Cover | ABS |
3, Mesh Connection
Connection method:
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
