TCG Trackless Cantilever Gate
Introduction
The TCG Trackless Cantilever Sliding Gate combines cutting-edge industrial design and manufacturing technology. It features a self-supporting structure, a high-strength and corrosion-resistant manganese steel substrate for the bottom beam, and a world-class dedicated sliding gate motor with an advanced control system. Multiple anti-corrosion treatments and high-adhesion polyester powder coating technology ensure long-lasting durability. Leading the industry in terms of environmental protection, aesthetic appeal, structural design, safety, and the ultra-long service life of sliding gate products, the TCG Trackless Cantilever Gate sets new standards in the domestic market.
Features
Self-Supporting Structure
The TCG Trackless Cantilever Gate features a self-supporting structure design, eliminating the need for ground tracks. It is not affected by uneven ground, ice, or snow. The high-strength, double C-type Q355 manganese steel bottom beam effectively resists deformation from external forces.
The pre-tensioned door leaf structure, combined with the high-strength, corrosion-resistant manganese steel substrate bottom beam, ensures minimal deformation of the door leaf and precise alignment along the axis.
Advanced Drive System
The gate is powered by an FAAC imported drive system, ensuring stable performance with adjustable speeds from 9 to 30 m/min. Remote control functionality allows for convenient, long-range operation. The system features automatic delay for shutdown and activation, and displays operational status (on, off, run).
In the event of a power outage, the system can easily switch to manual mode, ensuring smooth operation of the gate.
Excellent Anti-Corrosion Performance
The gate offers exceptional anti-corrosion protection, with a 10-year anti-corrosion quality guarantee.
The base material is hot-dip galvanized with a zinc coating of ≥120 g/m² (on both sides).
The gate undergoes 19 pre-treatment processes to ensure superior coating adhesion (Grade 0).
Specially formulated Aksu outdoor powder coating prevents peeling, flaking, and powdering, ensuring the gate’s longevity and durability.
Colors Available
Popular colors
All other colors

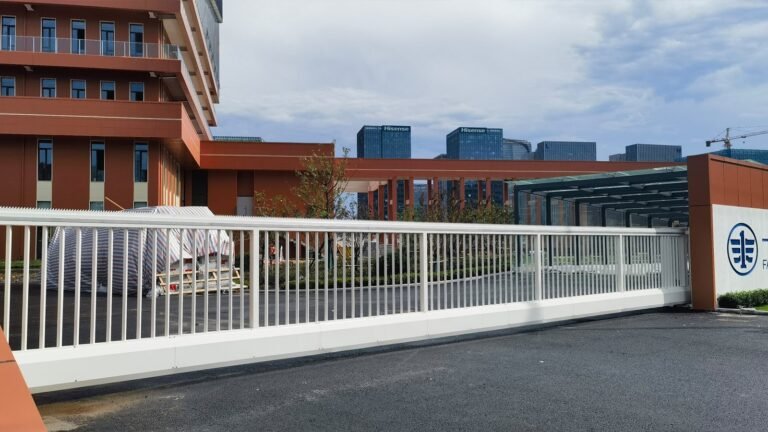

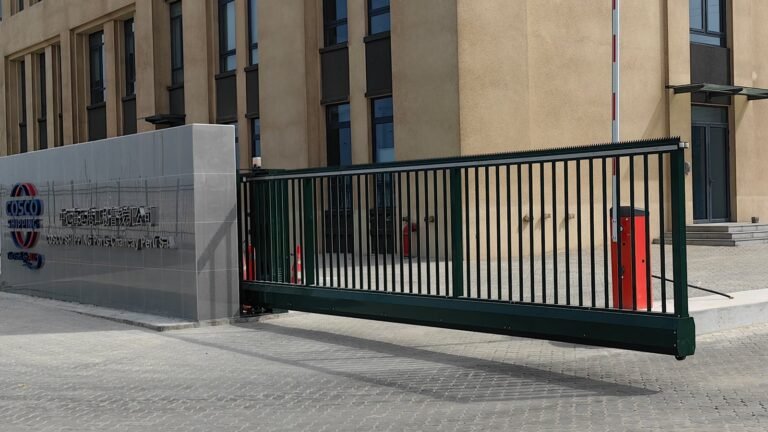

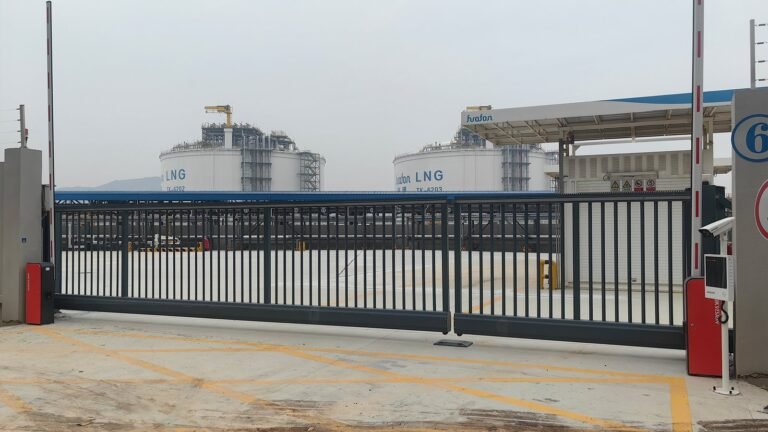

Gallery
1, TCG Trackless Cantilever Gate
Gate specification
| Item | Parameter |
|---|---|
| Width(mm) | 6000/8000/10000/12000/15000 |
| Height(mm) | 1600/1800/2000 |
| Bottom Beam Size(mm) | 200 * 280 * 5.0 |
| Bottom beam material | Q355 manganese steel |
| Drive system | FAAC844ER |
| Control mode | Remote control/line control |
2, Electric Motor
Post for the gate and its specification
| Item | Parameter |
|---|---|
| Brand | FAAC Italy |
| Type | 844ER/844ER-3P |
| Authentication | Conformité Européenne |
| Transmission mode | Rack and pinion |
| Limiting method | Magnetic induction limit |
| Clutch | Oil immersed double disc |
| Running speed（m/min） | 9～12 |
| Voltage(Vac +6% -10%; 50-60Hz) | 230/400 (3ph + N) |
| Absorbed power(W) | 650/950 |
| Protection grade | IP44 |
| Ambient temperature（℃） | -20 ～ +55 |
| Maximum thrust(daN) | 110/250 |
3, Remote Control
Control method:
Control System Functions
Supports multiple control modes, including remote control, button switch, and long-range control.
Features safety functions such as gate-closing collision prevention and operational warnings.
Equipped with an overheating and overload protection system to safeguard the gate’s operation.
4, Surface Treatment(Anti-rust Treatment)
A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)
B. Hot Dipped galvanized(121-550g/m²):
The entire substrate is hot-dip galvanized with a zinc coating of 80-120g/m², and the outer layer is coated with polyester electrostatic powder, featuring a thickness of 100-120μm.
Over 200 RAL color options are available to suit various aesthetic and functional requirements.
The complete gate assembly is hot-dip galvanized with a zinc coating of 550g/m², ensuring outstanding durability and longevity.
This robust and versatile swing gate is ideal for managing access in both standard and high-security areas while ensuring long-lasting performance in diverse environmental conditions.
5, Optional Accessaries
