SSG Single panel side-hung swing gate
INTRODUCTION
The single-leaf swing gate is designed primarily for personnel management and fire exits. It supports manual opening and closing, electric operation, or automatic closing using manual gate closers. Locks can be selected to meet different requirements, such as handle locks, bolt locks, or electromagnetic locks. The gate shaft can be equipped with adjustable stainless steel ball-joint hinges and heavy-duty gate closing hinges, ensuring flexible and reliable functionality.
FEATURES
Adjustable Design
Equipped with stainless steel adjustable ball-joint hinges for precise alignment and smooth operation.
Specialized Locking Mechanism
Fitted with a stainless steel specialized lock to enhance security and reliability.
Superior Anti-Corrosion Performance
Offers excellent anti-corrosion performance with a 10-year anti-corrosion quality assurance.
The base material is hot-dip galvanized with a zinc coating of ≥ 120g/m² (double-sided).
Undergoes 19 pre-treatment processes for superior coating adhesion (Level 0).
Aksu outdoor powder coating ensures resistance to peeling, powdering, and flaking.
COMPONENTS & PARAMETERS
Gate
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 2000/2500/3000 |
| Mesh Width(mm) | 2000/3000 |
| Wire Diameter Before Coating(mm) | Ø3.55/Ø4.75 |
| Wire Diameter After Coating(mm) | Ø5.00/Ø6.40 |
| Tensile Strength(MPa) | 375/500 |
| Mesh Size(mm) | 50 |
| Material | Q195 |
| Zn coating (g/㎡) | ≥80 |
| Color | RAL Color 6005(blackish green) |
| Name | Parameter |
|---|---|
| Size(mm) | 70 * 100 |
| Thickness(mm) | 1.0/1.2/1.5 |
| Material | Q235/DC51D |
| Height | 500-3000 |
| Zn coating | 80-120 g/㎡ |
| Color | RAL Color Series |
| Cover | ABS |
Post
Connection
The integrated design connects the gate column to the mesh using dedicated fittings and anti-theft bolts, providing enhanced security.
The entire substrate is hot-dip galvanized with a zinc coating of 80-120g/m², and the outer layer is coated with polyester electrostatic powder, featuring a thickness of 100-120μm.
Over 200 RAL color options are available to suit various aesthetic and functional requirements.
The complete gate assembly is hot-dip galvanized with a zinc coating of 550g/m², ensuring outstanding durability and longevity.
This robust and versatile swing gate is ideal for managing access in both standard and high-security areas while ensuring long-lasting performance in diverse environmental conditions.
Surface Technology

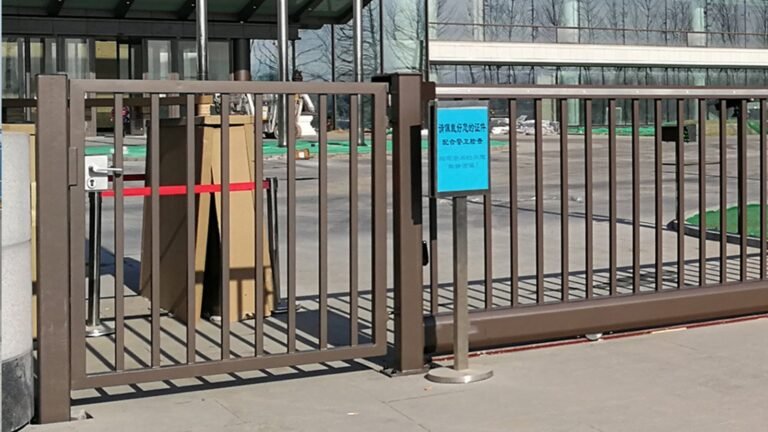

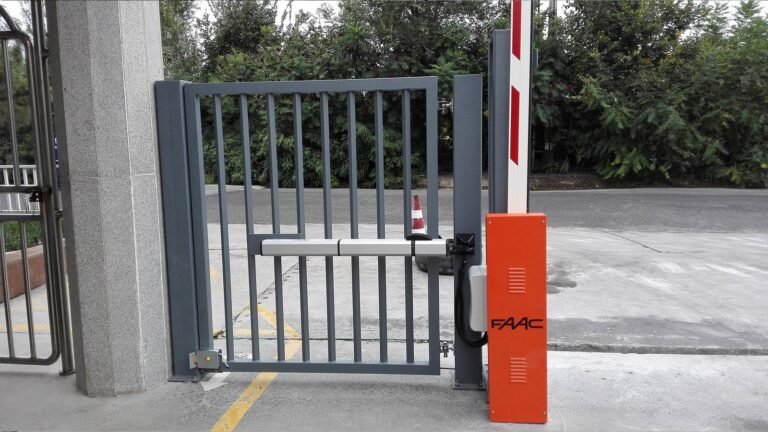

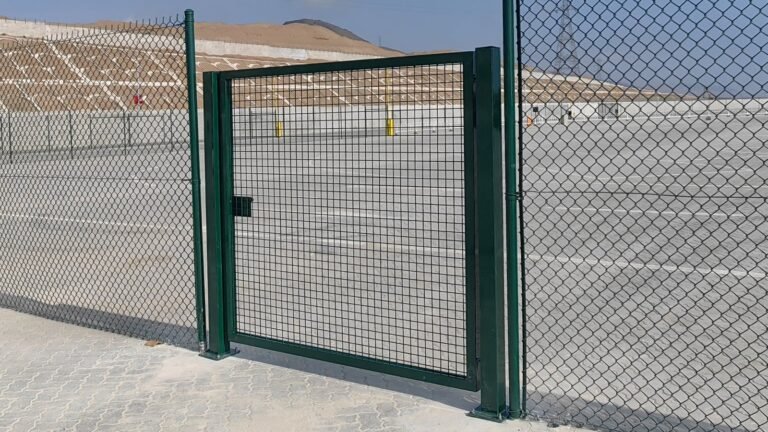

PROJECT APPLICATIONS
