FR Square Tube Fence
Railing Panels

Introduction

FR Square Shaped Post Fence or Railing features square tube posts and welded square tube fence panels, equipped with U-shaped connectors and stainless steel tamper-resistant bolts. Its streamlined exterior design blends traditional Oriental aesthetics with modern stability, adding elegance to its simple yet functional styling. The surface undergoes hot-dip galvanizing and electrostatic powder coating, providing exceptional anti-corrosion performance.

Aesthetics

Streamlined structural design, beautiful and three-dimensional;

Durable

The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;

Practical

Adapt to uneven terrain and installation from different angles;

Easy to master, simple and fast, and cost-effective.

Fence Panel		Wire Mesh Panel
Name	Parameter	Name	Parameter
Width(mm)	2500/3000	Mesh Height (mm)	1430/1630/1830/2030/2230/2430
Height(mm)	1000-2400	Mesh Width (mm)	2500/3000
Horizontal bar(mm)	40 * 25	Wire Diameter (mm)	Ø5.0+Ø4.5+Ø5.0/Ø6.0+Ø5.0+Ø6.0/Ø8.0+Ø6.0+Ø8.0
Bar thickness(mm)	1.2/1.5	Vertical Wire Spacing (mm)	50/55/65
Vertical pole(mm)	20/25	Horizontal Wire Spacing (mm)	200
Pole thickness(mm)	1.0/1.2	Material	Q195/Q235
Number of the bars	2/3 pieces	Zn coating(g/㎡)	80-120
Pole spacing(mm)	110	Color	RAL Color Series
Material	Q235
Pole decoration	Stamping/Cast aluminum spear head/ABS

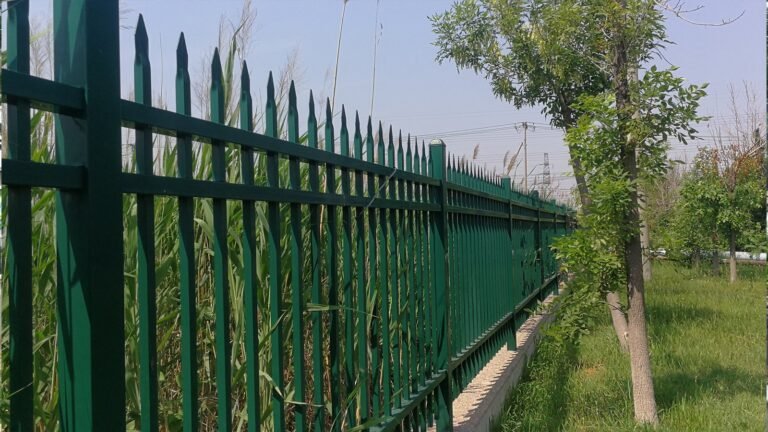

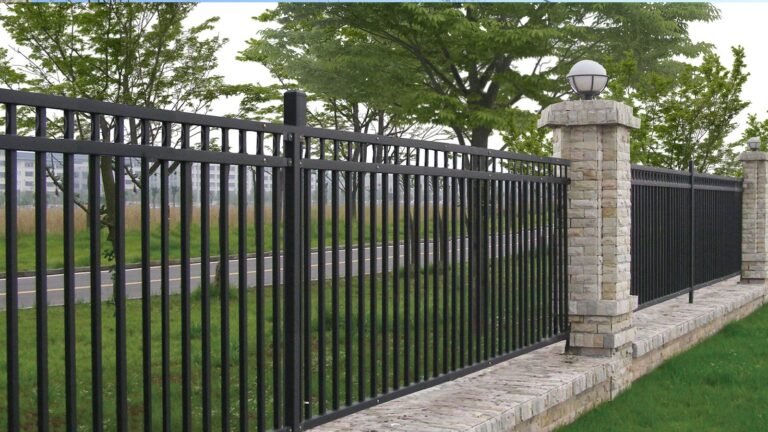

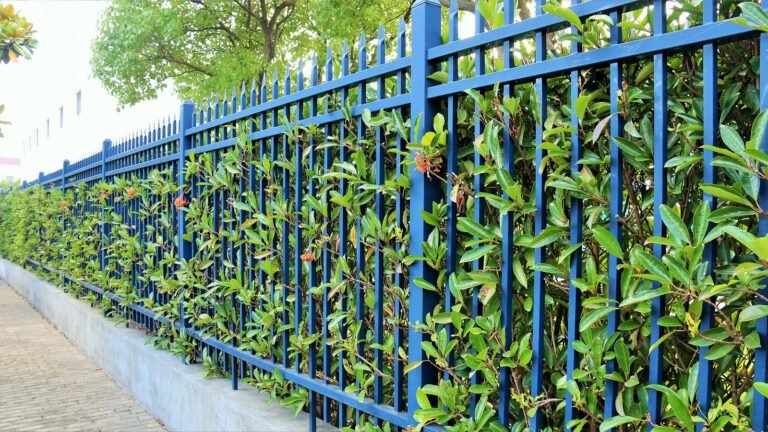

Product Visual

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.
