2DG Metal Fence Mesh

Introduction

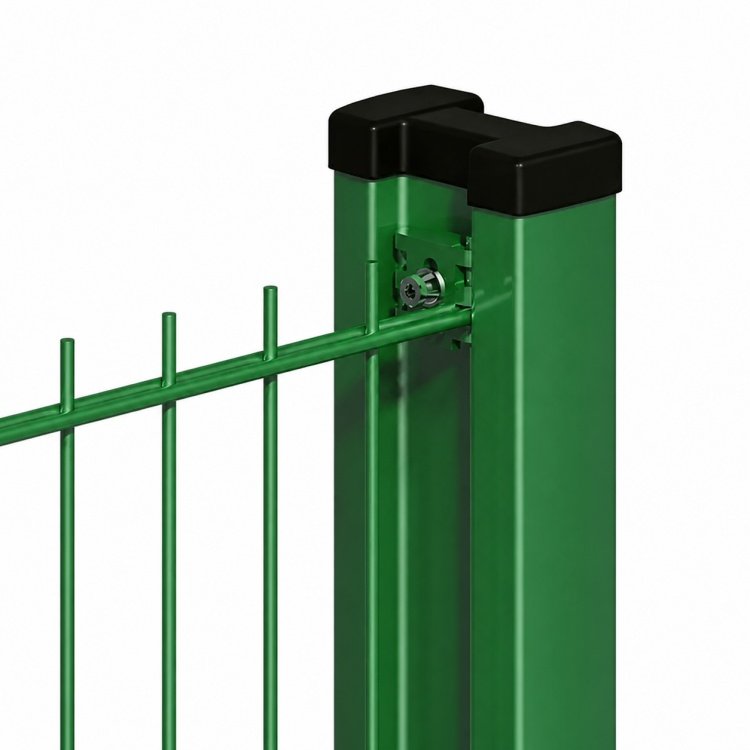

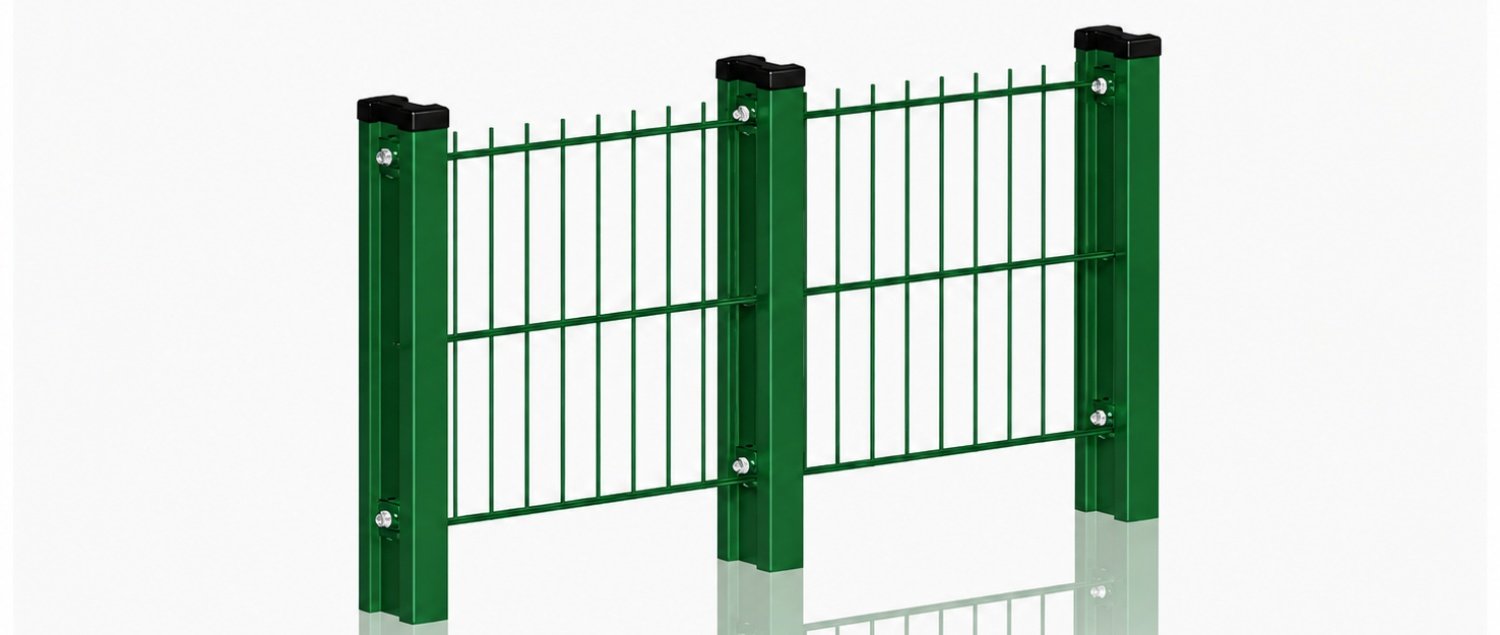

Constructed with cold-formed I-shaped posts and 2D double horizontal wire welded mesh, this fence features a simple and elegant design with dynamic, smooth lines. The integrated design of the post connects to the mesh through dedicated interlocks and anti-theft bolts, allowing the system to adapt seamlessly to uneven terrain and installation at various angles. The product supports both push-type installation and a two-step installation process where posts are installed first, followed by the mesh, ensuring convenience and efficiency.

Technical Specifications

The technical parameters of the dual-level welded wire mesh comply with relevant international standards (ASTM, EN, BS) and Chinese standards (GB). All parameter values represent typical specifications for industrial-grade products, and the corrosion resistance performance meets the requirements of ISO 12944.

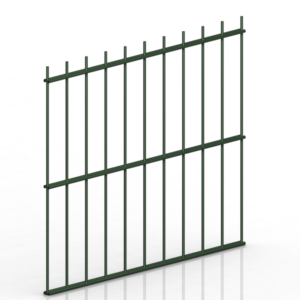

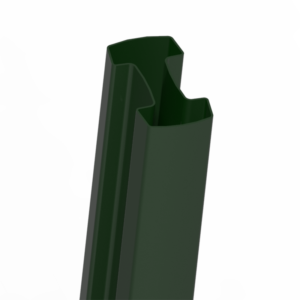

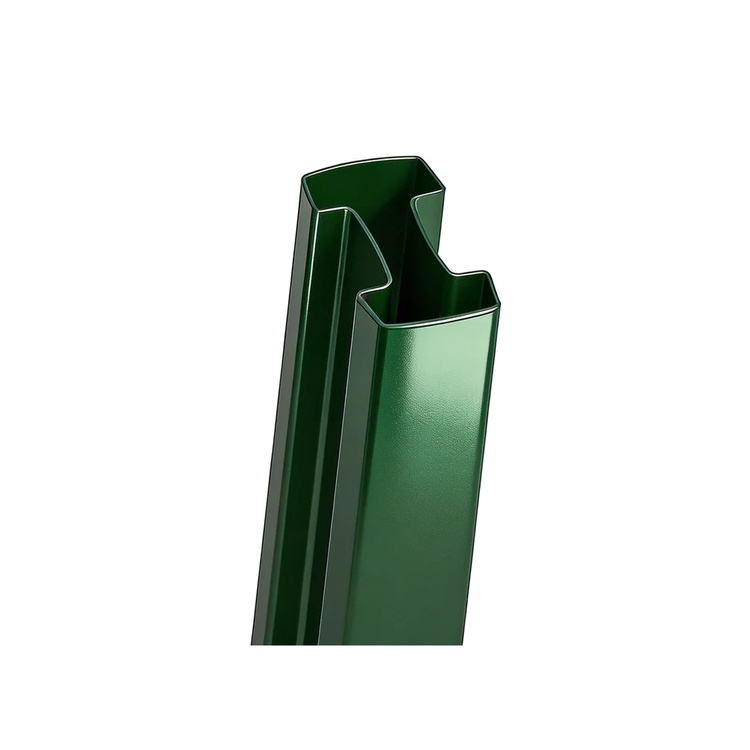

Wire Mesh Panel		Fence Post
Item	Specification	Item	Specification
Mesh Height	1000–2430 mm	Post Size	54.4 × 100 mm
Mesh Width	2500 mm 3000 mm	Thickness	1.5 mm 2.0 mm
Wire Diameter	Ø6.0 + Ø5.0 + Ø6.0 mm Ø8.0 + Ø6.0 + Ø8.0 mm	Height	1000–3000 mm
Vertical Wire Spacing	50/55/65 mm	Material	Q235 Steel
Horizontal Wire Spacing	200 mm	Post Cap	ABS
Material	Q195 Steel Wire

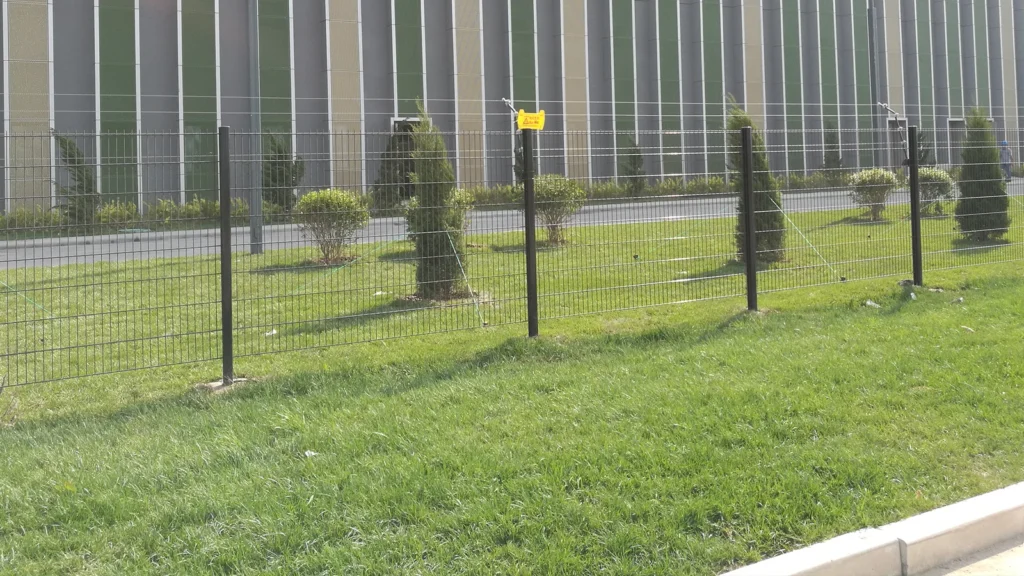

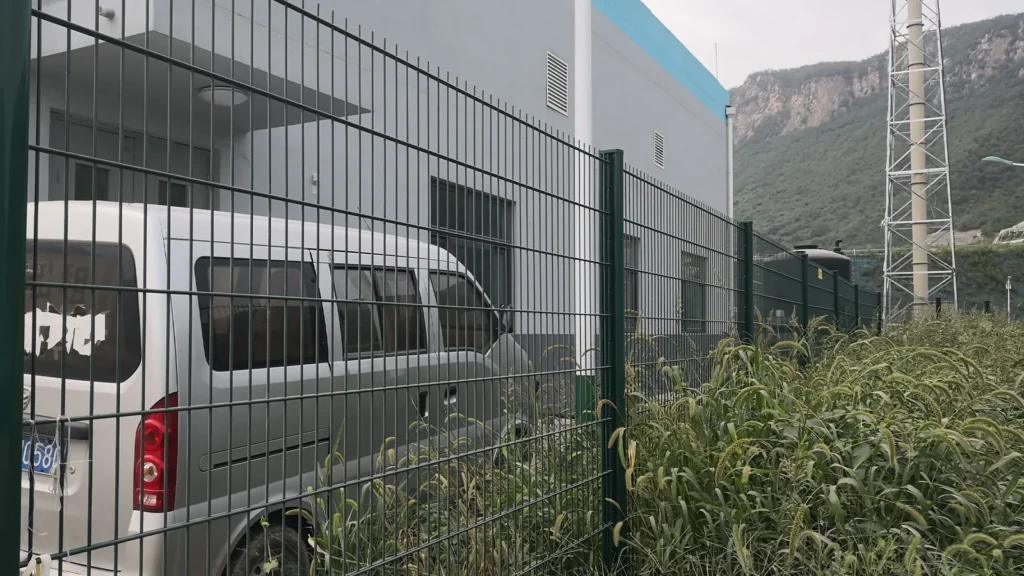

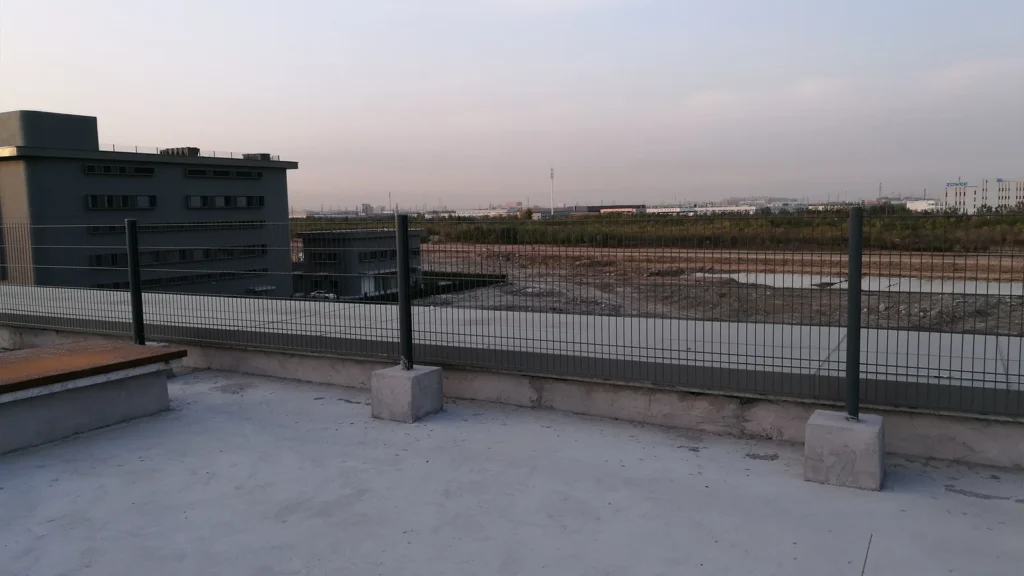

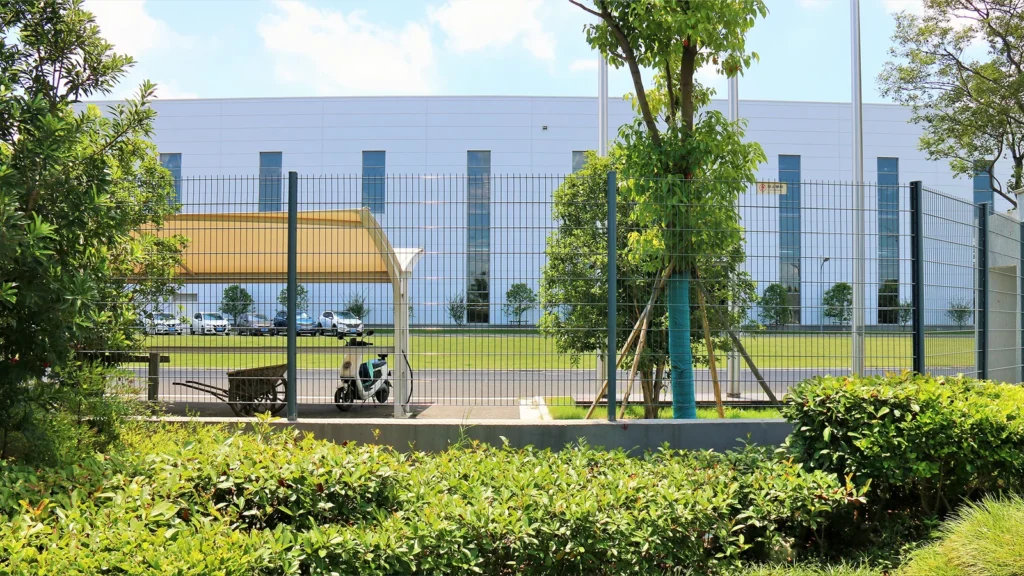

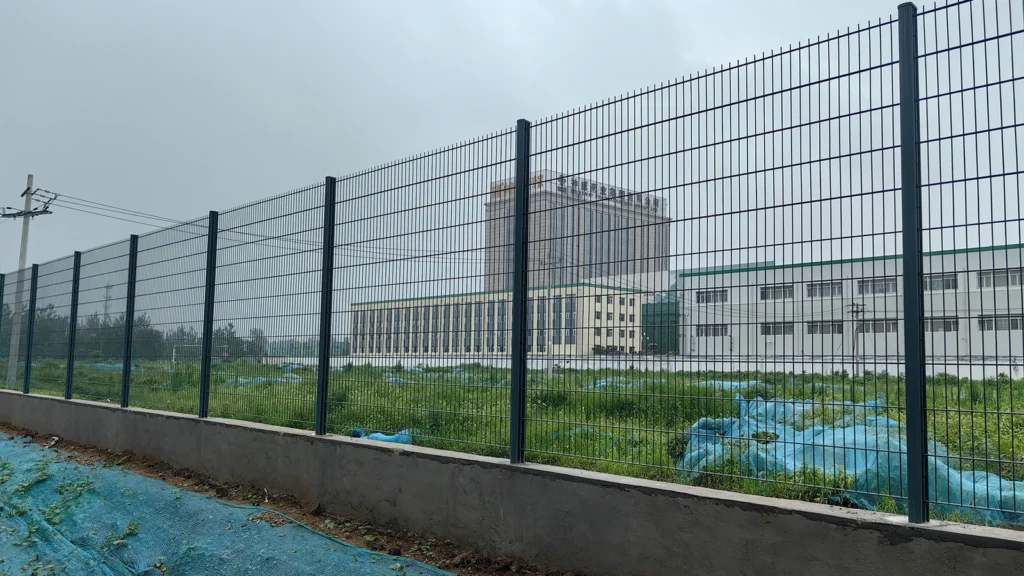

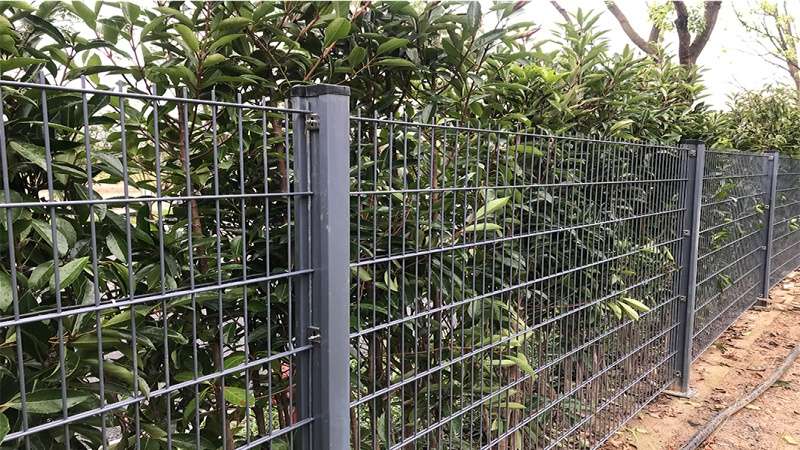

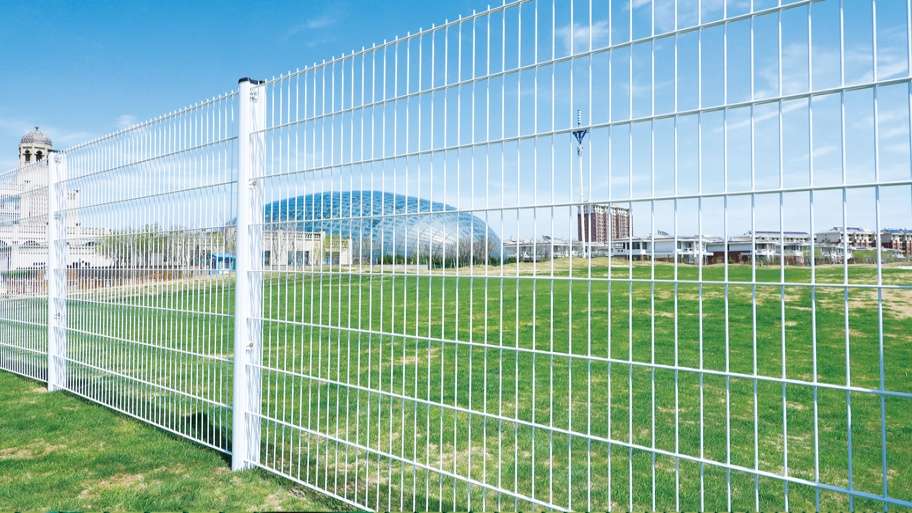

Product Visual

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

One-Stop Fencing: Smart Design, Global Std

Drawing Deepening Service: Our professional and highly efficient drawing deepening service has significantly reduced on-site adjustment time and errors.
Custom Fencing Solutions: We offer comprehensive one-stop fencing customization services covering the entire process from design to precise construction.
Material Optimization: We recommend optimal material solutions based on specific usage scenarios, striking a perfect balance between cost, durability, and performance.

Installation Method

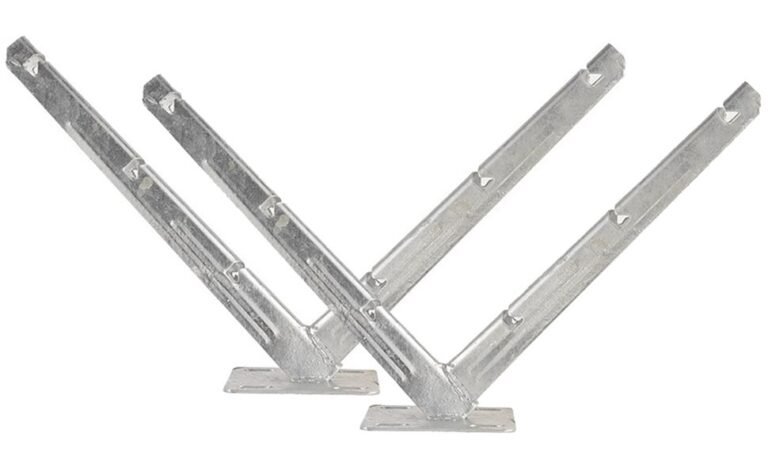

Optional Accessaries

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.

🌟 Our Qualifications 🌟

We adhere to the principle of “quality first”, leveraging advanced equipment and technology to ensure superior products. In service, we uphold the values of honesty, cooperation, and open communication. With our own production workshop, China Fence Company strictly follows ISO management standards throughout procurement, production, sales, and after-sales service.
Below are our certifications:
