2DF Armor Fence Bullet and Blast Resistance Panel and Profiled Posts C

Armor Fence Bullet and Blast Resistance Panel and Profiled Posts C

INTRODUCTION

The ACG Heavy-Duty Anti-Collision Gate combines advanced industrial design and state-of-the-art manufacturing technology. Featuring a robust anti-collision structure, a high-strength impact-resistant bottom beam, a premium sliding gate motor, and a versatile control system, it incorporates multiple anti-corrosion processes and high-adhesion polyester powder coating. This product sets the benchmark in the domestic industry for environmental sustainability, aesthetics, structural innovation, safety, and extended service life.

FEATURES

Self-Supporting Structure

Designed with a heavy-duty anti-collision bottom beam capable of withstanding an impact force of 1108KJ.

Equipped with specialized high wear-resistant pulleys and 25kg-grade tracks, ensuring smooth and reliable gate operation.

The fully sealed structure of the door leaf enhances privacy and security.

Advanced Driving System

Powered by the FAAC imported drive system, delivering stable performance and offering adjustable speeds between 9-30m/min.

Supports remote control for convenient long-distance gate operation.

Includes delay automatic shutdown and activation, along with operational status indicators (open, close, run).

Switches seamlessly to manual mode during power outages, ensuring uninterrupted functionality.

Exceptional Anti-Corrosion Performance

Exceptional anti-corrosion performance, backed by a 10-year corrosion-resistance guarantee.

Base material is hot-dip galvanized with a zinc coating of ≥120g/m² (double-sided).

Undergoes a 19-step pre-treatment process for superior coating adhesion (rated Level 0).

Finished with Akzo Nobel outdoor powder coating, ensuring resistance to peeling, chipping, and weathering.

COMPONENTS & PARAMETERS

Panel

Name	Parameter
Mesh Height(mm)	1000-2430
Mesh Width(mm)	2500/3000
Wire Diameter(mm)	Ø4.5/Ø5.0/Ø6.0
Vertical Wire Spacing(mm)	50/55/65
Horizontal wire spacing (mm)	50/55/65
Material	Q195/Q235
Zn coating (g/㎡)	80-120
Color	RAL Color Series

Name	Parameter
Size(mm)	60 * 60/80 * 80
Thickness(mm)	1.5/2.0
Height(mm)	1000-3000
Material	Q235
Cap	Steel cap

Post

Remote Control

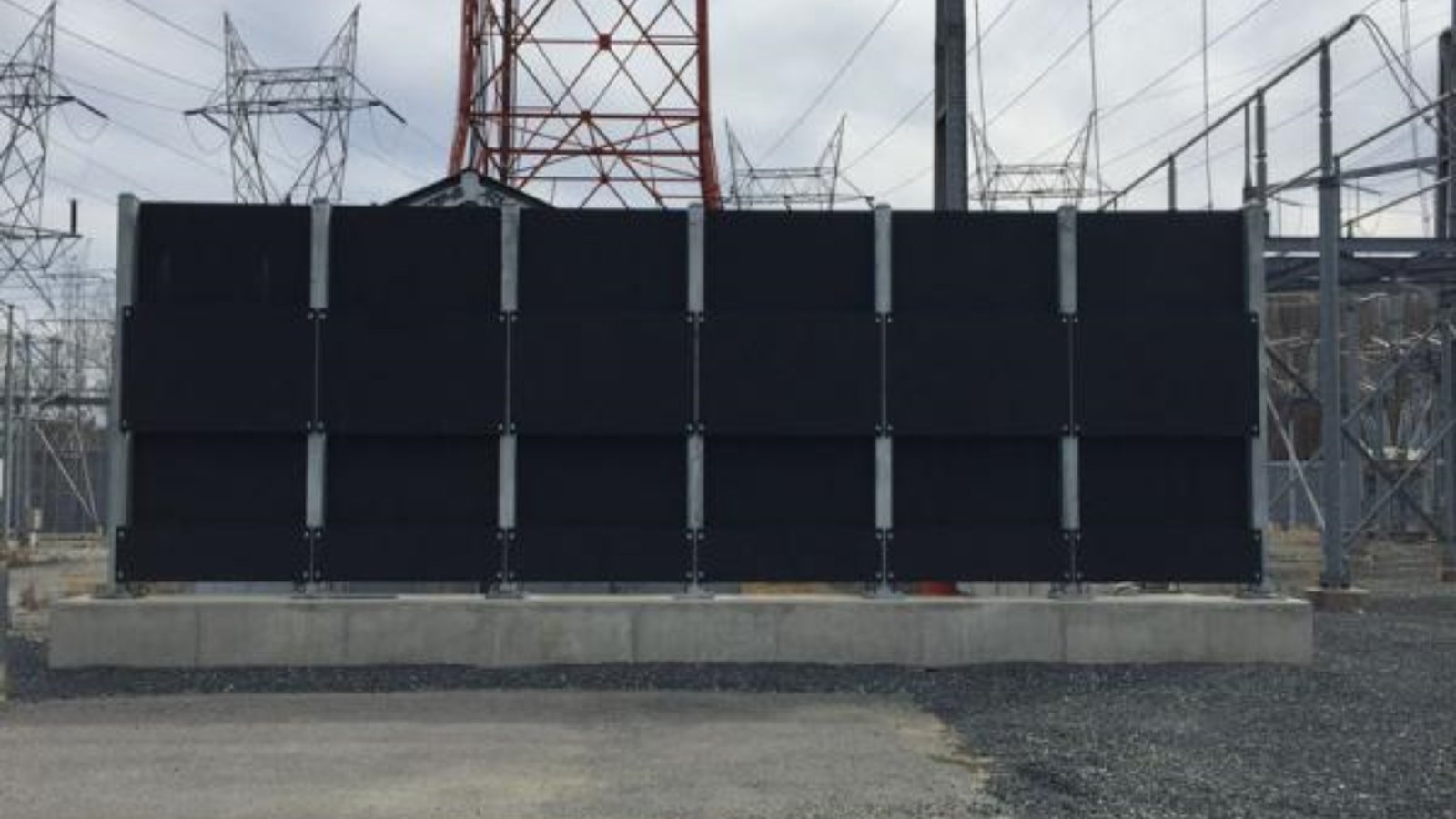

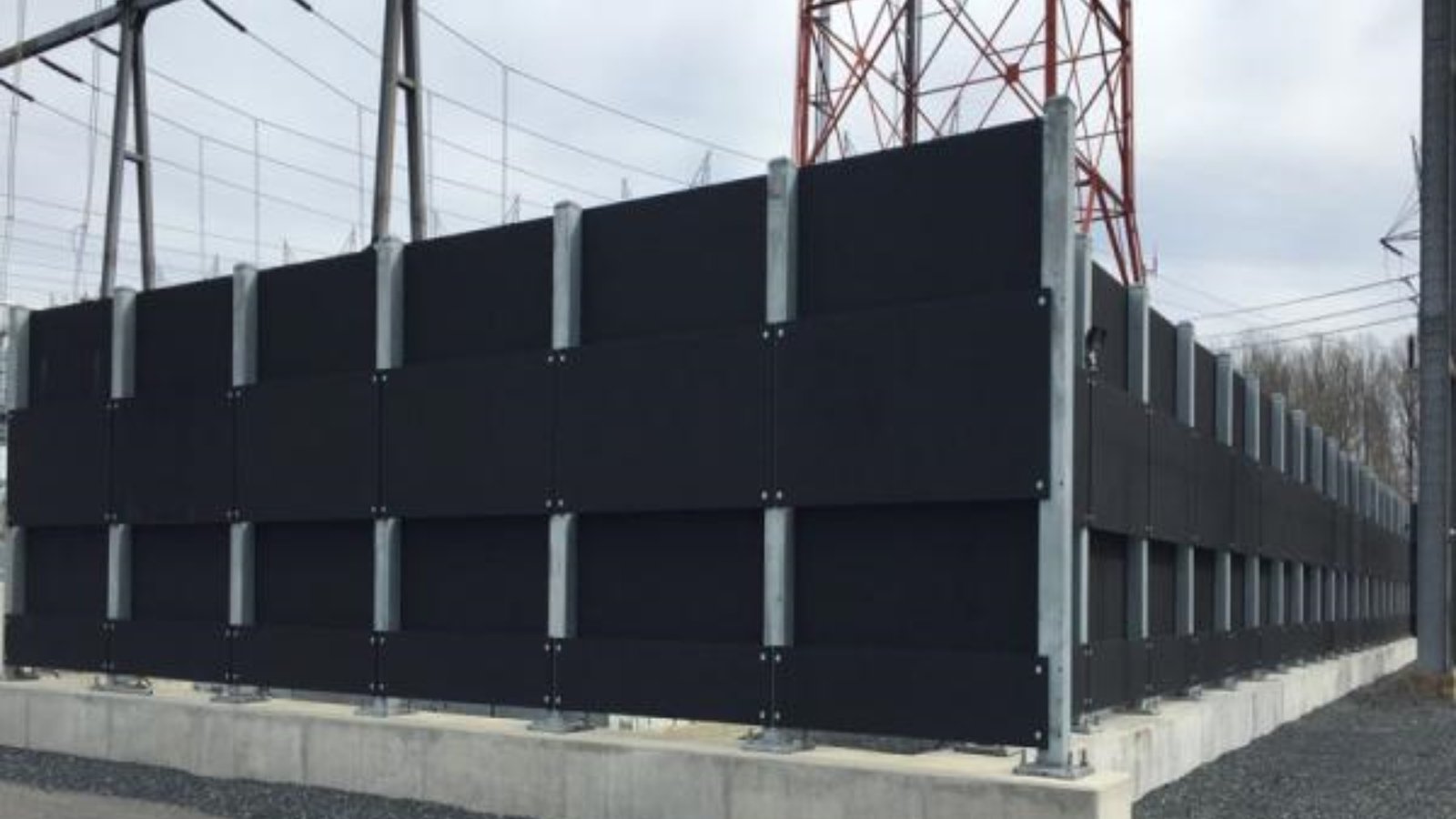

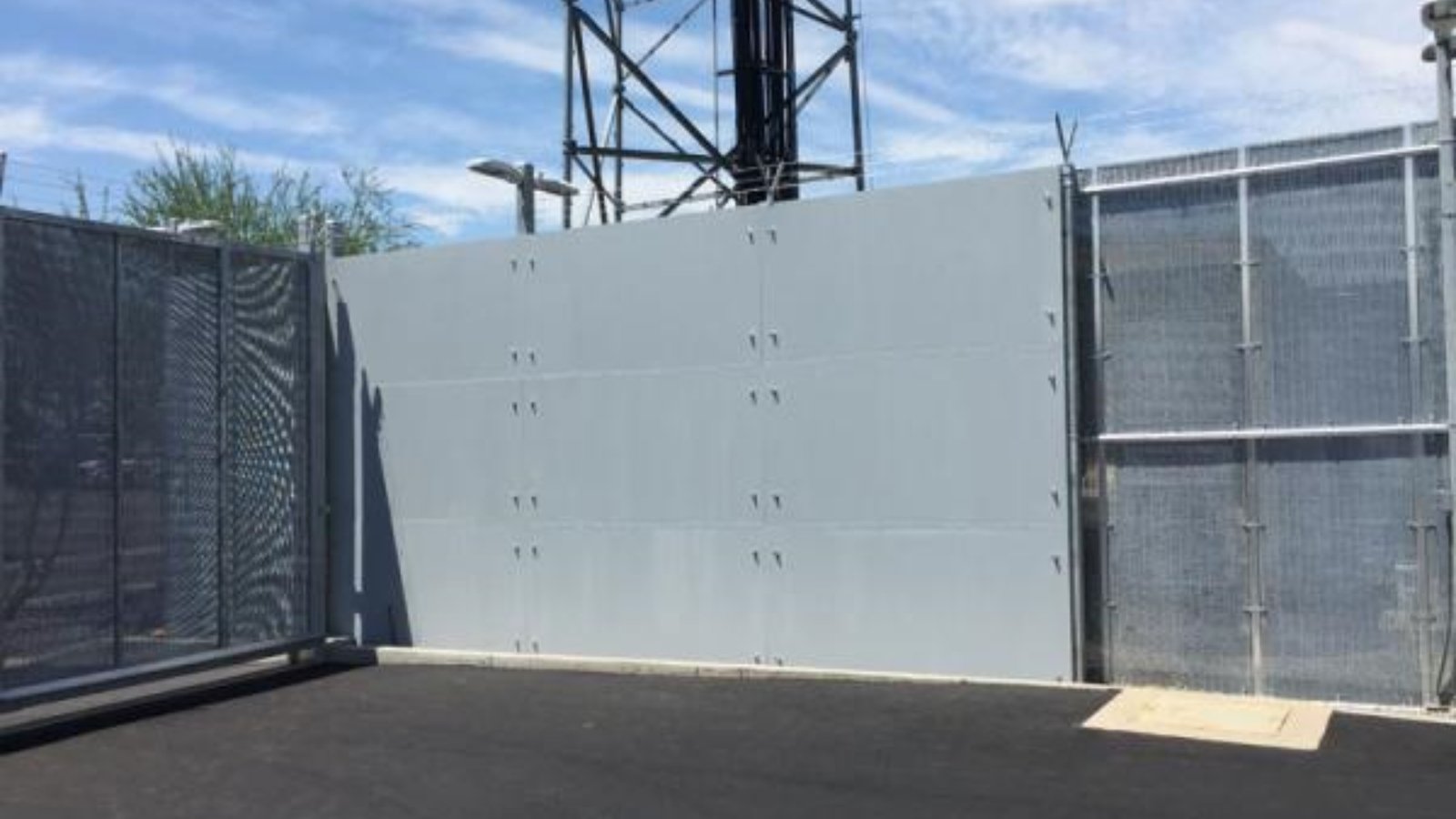

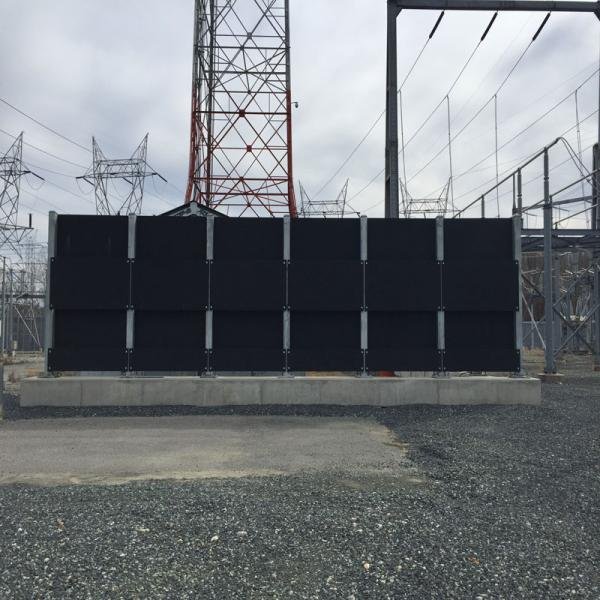

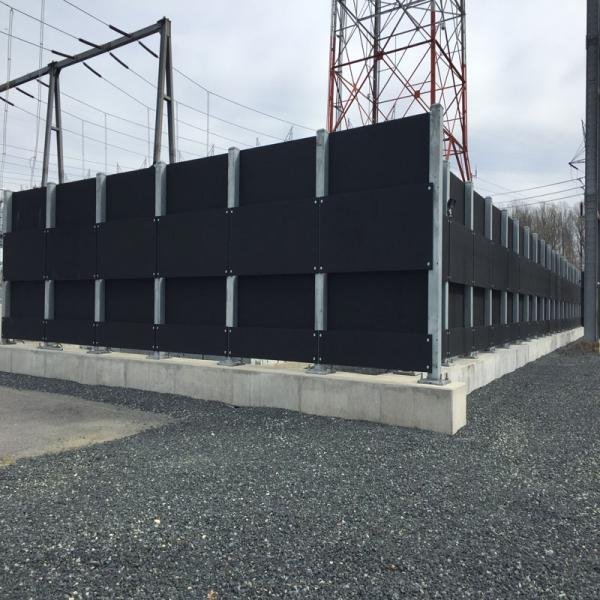

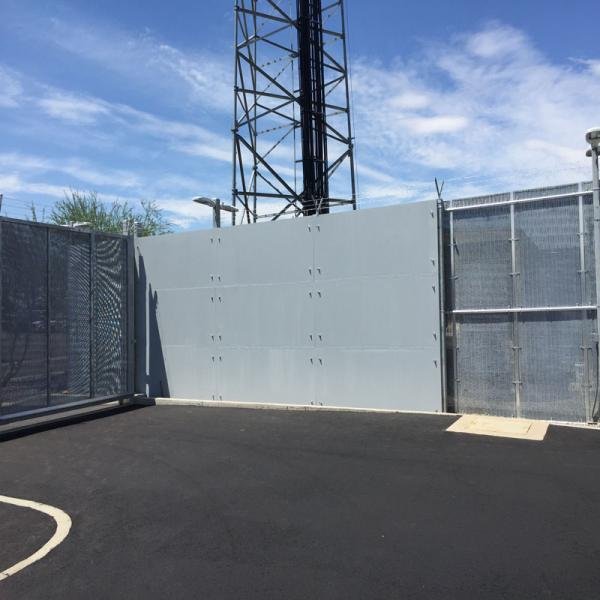

A complete fencing system

that can deliver high security protection
combined with tested and proven

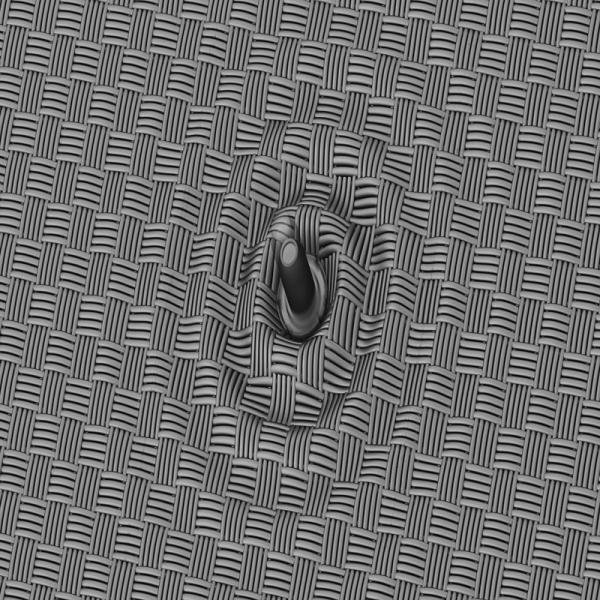

ballistic resistance.
– Resist and protect
– Superior quality
– Security integration
– Architectural mesh options

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m², while the outer coating is applied with polyester electrostatic powder, achieving a thickness of 100-120μm.

Available in over 200 RAL color options to suit diverse design preferences.

The ACG heavy-duty anti-collision gate delivers unparalleled security, durability, and functionality, making it the ideal solution for high-impact and high-security applications.
