358F 2D Double Horizontal Wires Metal Fence Mesh & Profiled Posts C
Introduction
Heavy-Duty Double Wire Security Mesh System

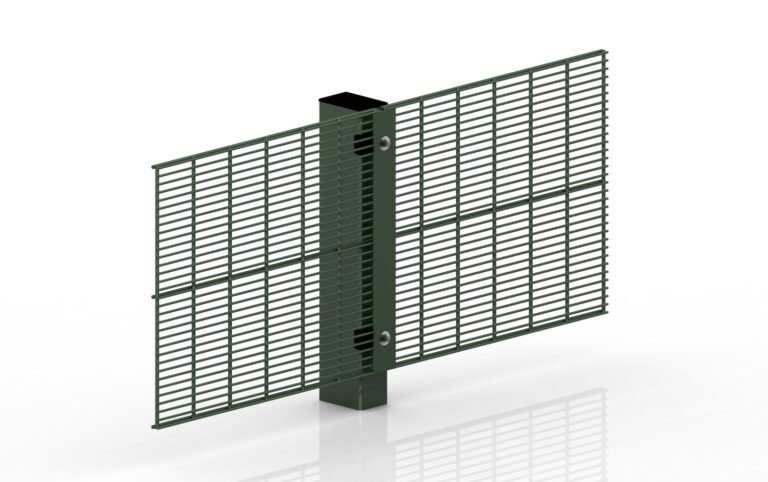

The 358F 2D Extra Cross Wires Metal Fence Mesh & Profiled Posts C is a premium-grade, heavy wire mesh fencing system engineered for high-security applications. Designed to deliver exceptional strength, rigidity, and durability, this fencing solution combines an attractive appearance with reinforced structural performance—making it ideal for locations where both security and aesthetics are critical.
This system features thicker vertical wires and double horizontal wires for enhanced resistance against cutting, climbing, and forced entry. Additional cross wires further increase rigidity, making it extremely difficult to breach. It is especially suited for sensitive or high-risk environments such as data centers, prisons, power stations, warehouses, and industrial zones.
Features
Maximum Strength & Security
Built with heavy-duty steel wires and extra cross wire reinforcement to withstand extreme impact and prevent intrusions.
Double Wire Construction
Dual horizontal wires add substantial rigidity and structural integrity to the fence panels.
Anti-Climb & Anti-Cut Design
Narrow aperture and high-density wire layout make it virtually impossible to scale or cut through.
Vandal-Resistant
Deters and delays attacks, vandalism, and unauthorized access attempts.
Profiled Posts (Type C)
Strong and sleek profiled steel posts ensure secure panel mounting and enhanced visual appeal.
Colors Available
Popular colors
All other colors
Gallery

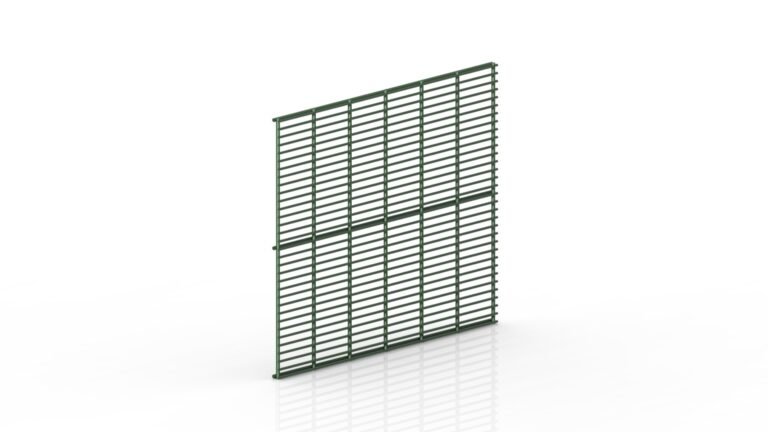

1, Single Horizontal Wire Mesh Panel
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2000/2500 |
| Wire Diameter(mm) | Ø4.0/Ø4.5 |
| Vertical Wire Spacing(mm) | 76.5/100 |
| Horizontal wire spacing (mm) | 12.5 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |

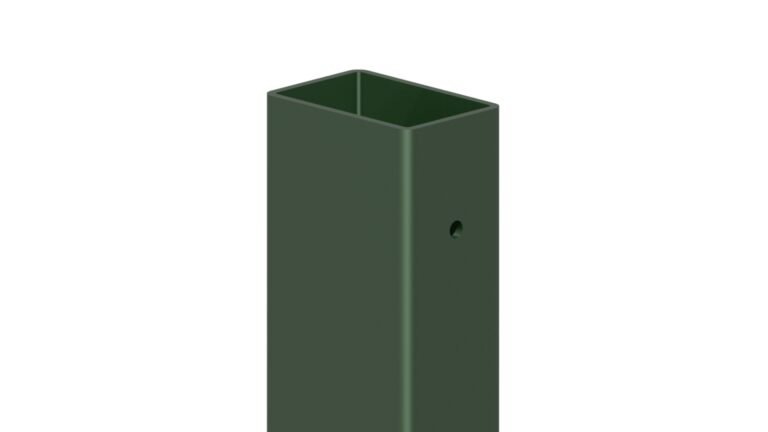

2, Post Parameters
| Name | Parameter |
|---|---|
| Size(mm) | 60 * 90 |
| Thickness(mm) | 1.5/2.0/3.0 |
| Material | Q235 |
| Height(mm) | 500-3000 |
| Zn coating(g/㎡) | ≥80 |
| Color | RAL Color Series |
| Cover | ABS |
3, Mesh Connection

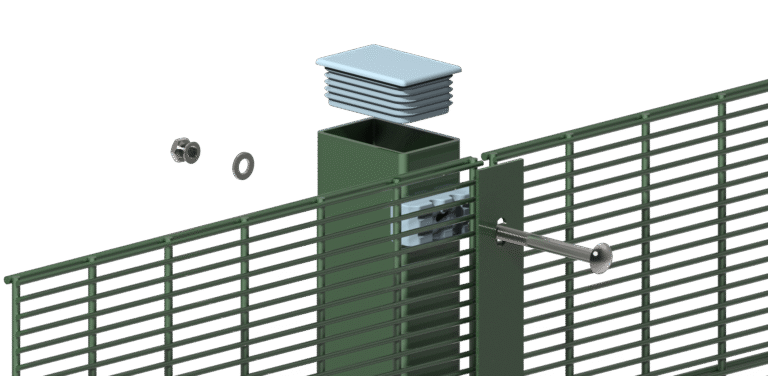

The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
4, Surface Treatment(Anti-rust Treatment)
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
