Introduction

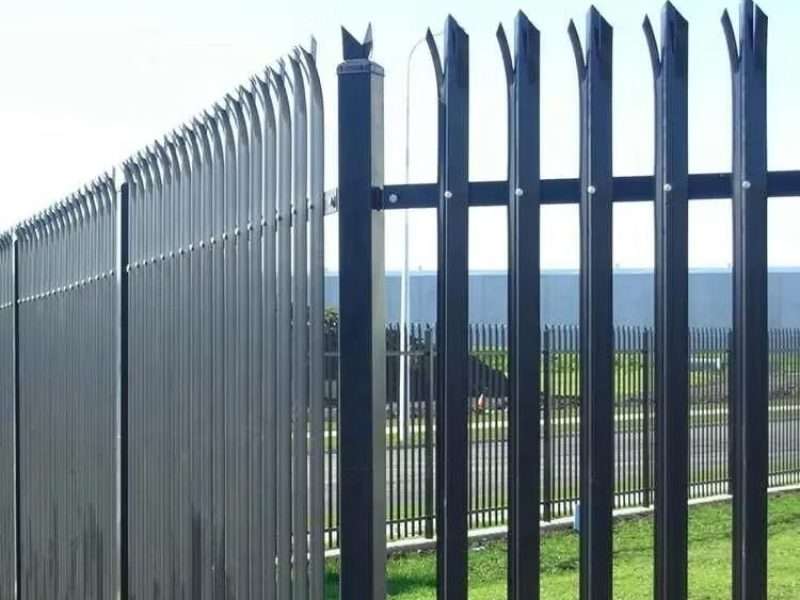

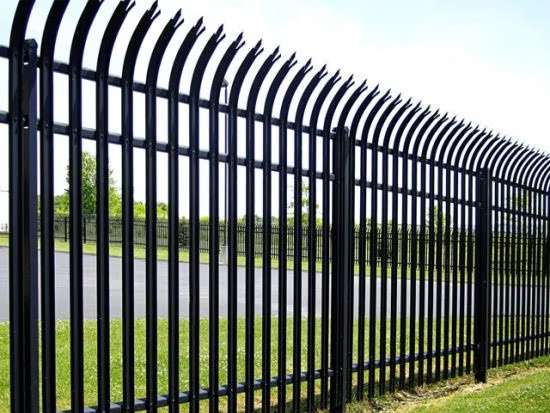

Palisade Security Fence – Durable, Customizable, and Anti-Climb Protection

Engineered for maximum perimeter protection, our Palisade Fencing offers a highly secure, durable, and visually strong solution for industrial, commercial, and high-risk residential applications.This fence system is composed of cold-formed square shaped posts and 358 welded mesh, offering exceptional resistance to riots, cutting, and disassembly. The integrated design of the posts connects securely to the mesh through dedicated interlocks and anti-theft bolts, ensuring adaptability to uneven terrain and versatile installation angles. The product supports flexible installation methods, including push-type assembly or sequential installation of posts followed by the mesh, providing a convenient and efficient setup process.

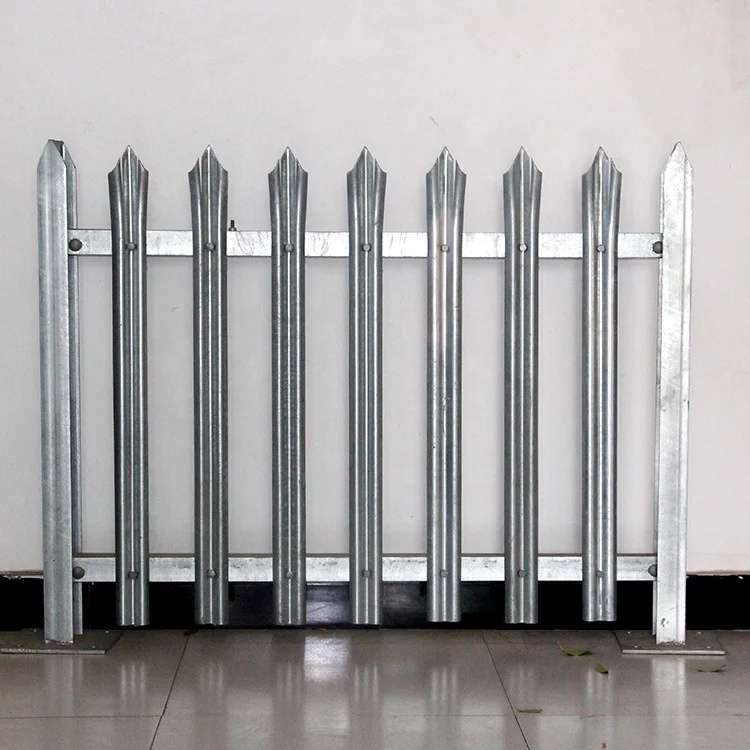

Featuring W-section or D-section steel pales, available with triple-pointed, rounded, or flat tops, our palisade fences are manufactured to match the aesthetic and safety preferences of UK, France, Germany, Belgium, Spain, and the Netherlands.

High-Security Design

Anti-climb profiles and spiked tops deter intruders

Weather-Resistant

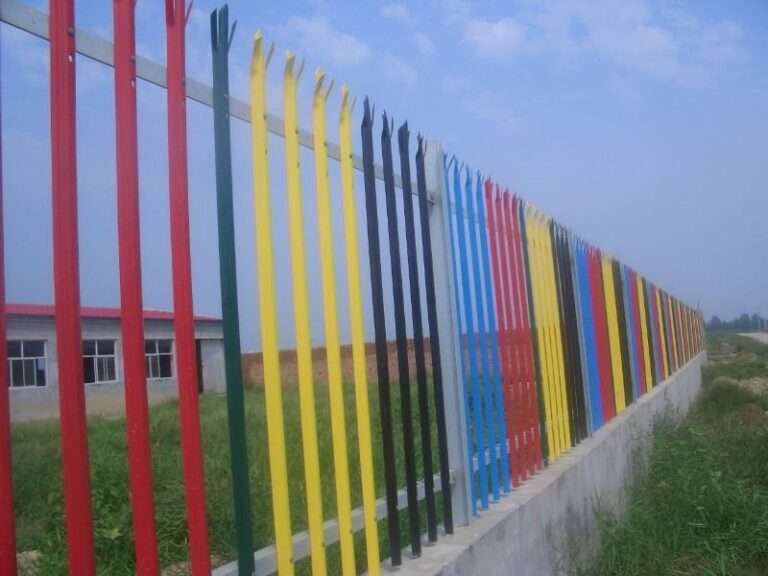

Hot-dip galvanized and optional RAL powder coating

Custom Heights & Colors

Tailored to local regulations and design needs

Ideal for:

Railways, factories, schools, infrastructure, private estates

Palisade Fence Pales		Posts, Rails & System
Item	Specification	Item	Specification
Fence Height (m)	1.8 / 2.0 / 2.4 / 3.0 (Custom heights available)	Post Type	RSJ / H-Section / SHS
Pale Profile	W-Section or D-Section	Post Size (mm)	102×44×3.0 / 127×76×3.0
Pale Thickness (mm)	2.0–3.0 (BS specification: 3.0 nominal)	Post Centres (m)	Standard 2.75 centres (Adjustable)
Pale Width (mm)	W-Section: approx. 62 top / 70 bottom D-Section: approx. 65	Rail Type & Size (mm)	RSJ / Angle Steel 50×50×6 or 65×50×6 (Customizable)
Pale Top Types	Triple Pointed / Single Pointed / Round Top / Round & Notched	Horizontal Rails Fence Height (m)	2 rails: up to 3.0 3 rails: above 3.0
Number of Pale Fixings	2 fixings per pale to each rail	Fixings	M8 anti-tamper bolts / cup square bolts with shear nuts / tamper-proof rivets
Material	Hot-rolled mild steel	Surface Finish	Hot-Dip Galvanized to BS EN ISO 1461 / ASTM A123 Optional Polyester Powder Coating, RAL colours available Polyester Powder Coating to BS EN 13438:2013
Standard	BS 1722-12:2016 Steel Palisade Fencing	Foundation	Set in-situ concrete C20/25 To BS 8500-1:2015

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.
