Fence Export Logistics Guide: Container Loading, Shipping Time & Cost Breakdown

·

·

Fence Export Logistics Guide: Container Loading, Shipping Time & Cost Breakdown

Latest Customs Data Update: According to China Customs statistics, China’s exports reached $656.58 billion in January-February 2026, a year-on-year increase of 21.8%. Exports to ASEAN grew by 29.4% and to the EU by 27.8% during this period.

Fence Export Logistics Guide: Container Loading, Shipping Time & Cost Breakdown

1. Official Customs Data & Market Overview

Based on the latest data from the General Administration of Customs of China, the export market for fence products remains strong despite global economic fluctuations. Key statistics include:

  • Overall Export Growth: China’s total exports grew by 21.8% year-on-year in January-February 2026
  • Regional Performance: ASEAN markets showed the strongest growth at 29.4%, followed by the EU at 27.8%
  • Mechanical & Electrical Products: Exports in this category increased by 27.1%, indicating strong demand for manufactured goods
  • Customs Data Sources: Official customs statistics are published monthly by the General Administration of Customs and can be accessed through their official channels

Reference Links:

2. Technical Specifications Table

Product Type Wire Diameter Mesh Size Panel Dimensions Coating Type HTS Code Container Loading Capacity
Chain Link Fence 3.5mm – 5.0mm 50×50mm, 60×60mm 1.8m × 30m (roll) Galvanized, PVC Coated 7314.41.00 520-600 rolls/40HQ
358 Security Fence 4.0mm – 6.0mm 76.2×12.7mm 2.2m × 2.5m (panel) Hot-dip Galvanized 7314.41.00 2200-2500 panels/40HQ
Welded Mesh Fence 3.0mm – 5.0mm 50×50mm, 75×75mm 1.8m × 3.0m (panel) Electro-galvanized 7314.41.00 1800-2000 panels/40HQ
Fence Posts 60×60mm, 80×80mm N/A 2.5m length Hot-dip Galvanized 7308.90.00 6000-7000 pcs/40HQ
Note: HTS Code 7314.41.00 refers to “Other woven wire fence” under the Harmonized System classification

3. Container Types & Loading Capacity

Container Type Internal Dimensions (L×W×H) Volume Max Payload Best For
20GP (Standard) 5.90m × 2.35m × 2.39m ~28 m³ 21-28 tons Small orders, LCL shipments
40GP (Standard) 12.03m × 2.35m × 2.39m ~60 m³ 26-28 tons Medium to large orders
40HQ (High Cube) 12.03m × 2.35m × 2.69m ~69 m³ 26-28 tons Bulky fence products (Recommended)

Loading Capacity Estimates

  • Chain Link Fence (1.8m height, 3.5mm wire, 50×50mm mesh, 30m/roll):
    • 20GP: 220-250 rolls
    • 40HQ: 520-600 rolls
  • 358 Security Fence Panels (2.2m × 2.5m, 4mm wire):
    • 20GP: 900-1000 panels
    • 40HQ: 2200-2500 panels
  • Fence Posts (60×60mm, 2.5m length):
    • 20GP: 2500-3000 pcs
    • 40HQ: 6000-7000 pcs

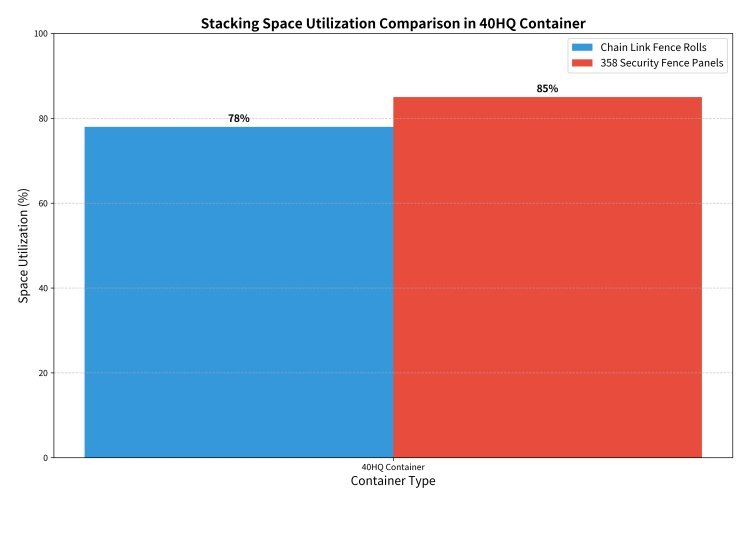

Stacking Space Utilization Comparison in 40HQ Container

Visual chart comparing stacking space utilization of Chain Link Fence rolls and 358 Fence panels in a 40HQ container.

Visual comparison of space efficiency between Chain Link Fence rolls and 358 Security Fence panels

4. Shipping Cost Breakdown

Sea freight costs consist of three main components:

Origin Charges (Hebei → Tianjin Port Example):

  • Trucking to port: ~4,000 RMB
  • Telex release fee: ~450 RMB
  • Port handling charges: ~3,000 RMB
  • Customs declaration: ~500 RMB
  • Documentation fee: ~300 RMB

Ocean Freight (Varies by route & season):

  • Major shipping lines: Maersk, MSC, CMA CGM, COSCO, Hapag-Lloyd
  • Charged by shipping lines based on market conditions

Destination Charges:

  • Port handling fees
  • Customs clearance
  • Import duties and taxes
  • Inland delivery to final destination

Export Tax Rebate Policy: According to the latest regulations from the State Taxation Administration, eligible export goods can apply for VAT rebates ranging from 9% to 13% depending on the product category. Proper documentation and compliance with customs procedures are essential for claiming these rebates.

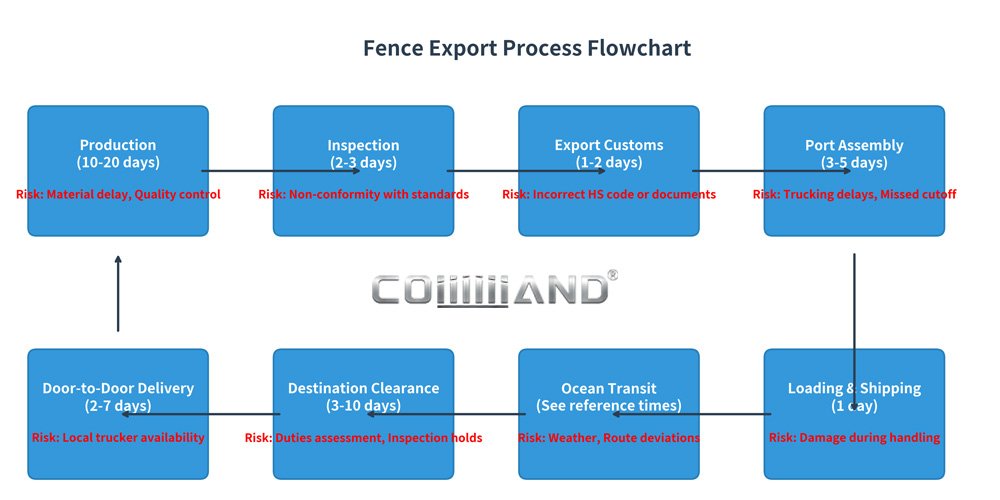

Fence Export Process Flowchart

Flowchart of the fence export process with time and risk indicators.

Complete export process with time estimates and risk indicators at each stage

5. Shipping Time from China (Reference)

Region Transit Time Key Ports Notes
Southeast Asia 10-15 days Singapore, Port Klang, Bangkok Direct services available
Middle East 17-22 days Jebel Ali, Dammam, Jeddah Transshipment may be required
Europe 30-40 days Rotterdam, Hamburg, Antwerp Via Suez Canal
Africa 30-45 days Durban, Mombasa, Lagos Transshipment common
South America 40-55 days Santos, Buenos Aires, Callao Longest transit times
North America 18-25 days Los Angeles, Long Beach, Vancouver West Coast direct services
Note: Actual transit times may vary due to port congestion, weather conditions, and transshipment requirements

6. How to Reduce Shipping Costs

Based on our 15+ years of export experience:

  1. Use 40HQ Containers: Higher volume means lower cost per unit
  2. Optimize Packaging: Custom packaging to maximize space utilization
  3. Product Mixing: Combine different fence products in one container
  4. Early Booking: Book shipping space 3-4 weeks in advance
  5. FCL vs LCL: Full container loads are more economical for large projects
  6. Consolidation: Group multiple orders going to same destination
  7. Seasonal Planning: Avoid peak seasons (Q4) for better rates

7. Customs Declaration & Documentation

Proper documentation is crucial for smooth customs clearance. Required documents include:

  • Commercial Invoice: Detailed description, quantity, and value
  • Packing List: Itemized list of contents
  • Bill of Lading: Issued by shipping line
  • Certificate of Origin: May be required for preferential tariffs
  • Export Declaration: Filed with Chinese customs
  • Inspection Certificates: Quality and compliance documents

Customs Compliance Note: According to the “Regulations of the People’s Republic of China on Import and Export Duties,” accurate HS code classification (7314.41.00 for woven wire fence) is essential for proper duty assessment and compliance with export regulations. Incorrect classification can lead to delays, fines, or seizure of goods.

8. Our Support Services

As a professional fence manufacturer in Hebei, China, we provide comprehensive export support:

Service Description Benefit
Production Planning Custom manufacturing to specifications Quality assurance & timely delivery
Loading Optimization 3D loading plans for maximum efficiency Reduced shipping costs
Export Documentation Complete paperwork preparation Smooth customs clearance
Shipping Arrangement Door-to-door logistics coordination Single point of contact
Real-time Tracking 24/7 shipment monitoring Complete visibility
After-sales Support Installation guidance & warranty Peace of mind

9. Market Trends & Opportunities

Based on customs data and market analysis:

  • ASEAN Growth: 29.4% export growth indicates strong demand in Southeast Asia
  • Infrastructure Development: Global infrastructure projects driving fence demand
  • Security Concerns: Increased security needs boosting security fence market
  • Sustainable Materials: Growing demand for eco-friendly fencing solutions
  • Smart Fencing: Integration of technology in perimeter security systems

Ready to Start Your Fence Export Project?

Contact us today for a customized quotation and logistics plan tailored to your specific requirements.

Professional logistics is not just about delivery — it’s about saving cost and avoiding risk.

Hebei Kemande Metal Product Co., Ltd.
WhatsApp: +974 6684 1365

References & Official Data Sources

  1. General Administration of Customs of China. (2026). January-February 2026 Import and Export Statistics. Retrieved from http://www.customs.gov.cn/customs/302249/302274/302276/index.html
  2. State Taxation Administration. (2026). Announcement on VAT and Consumption Tax Policies for Export Business. Announcement No. 11 of 2026. Retrieved from http://www.chinatax.gov.cn/
  3. State Taxation Administration. (2026). Administrative Measures for VAT and Consumption Tax Rebates on Export Business. Retrieved from http://www.chinatax.gov.cn/n810341/n810765/n1465116/n1465117/c1465352/content.html
  4. General Administration of Customs. (2024). Measures for the Administration of Export Supervision Warehouses and Goods Stored Therein. Decree No. 133. Retrieved from http://www.customs.gov.cn/
  5. State Council of China. (2022). Regulations of the People’s Republic of China on Import and Export Duties. Retrieved from http://www.gov.cn/zhengce/2022-12/30/content_5734591.htm
  6. World Customs Organization. (2026). HS Code Classification: 7314.41.00 – Other woven wire fence. Harmonized System Committee. Retrieved from https://www.wcoomd.org/en/topics/nomenclature/instrument-and-tools/hs-nomenclature-2027-edition/7314.aspx
  7. Ministry of Commerce of China. (2026). China’s Foreign Trade Development Report 2025-2026. Retrieved from http://www.mofcom.gov.cn/
  8. National Bureau of Statistics of China. (2026). Statistical Bulletin of National Economic and Social Development 2025. Retrieved from http://www.stats.gov.cn/

Disclaimer: The information provided in this guide is for reference purposes only. Shipping rates, transit times, and regulations are subject to change. Always consult with professional logistics providers and customs brokers for the most current information. Container loading capacities are estimates based on standard packing methods and may vary depending on specific product dimensions and packaging.
