Introduction
The YR Special Shaped Post Railing features special-type posts and welded square tube fence panels, assembled with universal die-cast aluminum connectors and post caps. Its streamlined design combines traditional Oriental aesthetics with modern stability, creating a visually elegant and stable structure. The unique universal hinge connection design between the posts and fence panels allows for flexible installation at various angles. The surface is treated with hot-dip galvanizing and electrostatic powder coating, offering superior anti-corrosion performance.
Aesthetic
Streamlined structural design, beautiful and three-dimensional;
Universal joint connection structure design, adaptable to installation at any angle;
Die cast aluminum column caps and connectors completely solve the problem of rusting in weak anti-corrosion areas;
Durable
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;
Practical
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
| Fence Panel | Fence Post | ||
|---|---|---|---|
| Name | Parameter | Name | Parameter |
| Width (mm) | 2500 / 3000 | Size (mm) | 50 * 75 |
| Height (mm) | 1000-2400 | Thickness (mm) | 1.5 / 2.0 |
| Horizontal Bar (mm) | 40 * 25 | Height (mm) | 1000-3000 |
| Bar Thickness (mm) | 1.2 / 1.5 | Material | Q235 |
| Vertical Pole (mm) | 20 / 25 | Cap | Die cast aluminum integrated structure |
| Pole Thickness (mm) | 1.0 / 1.2 | ||
| Number of the Bars | 2 / 3 pieces | ||
| Pole Spacing (mm) | 110 | ||
| Material | Q235 | ||
| Pole Decoration | Stamping / Cast aluminum spear head / ABS | ||
Product Visual

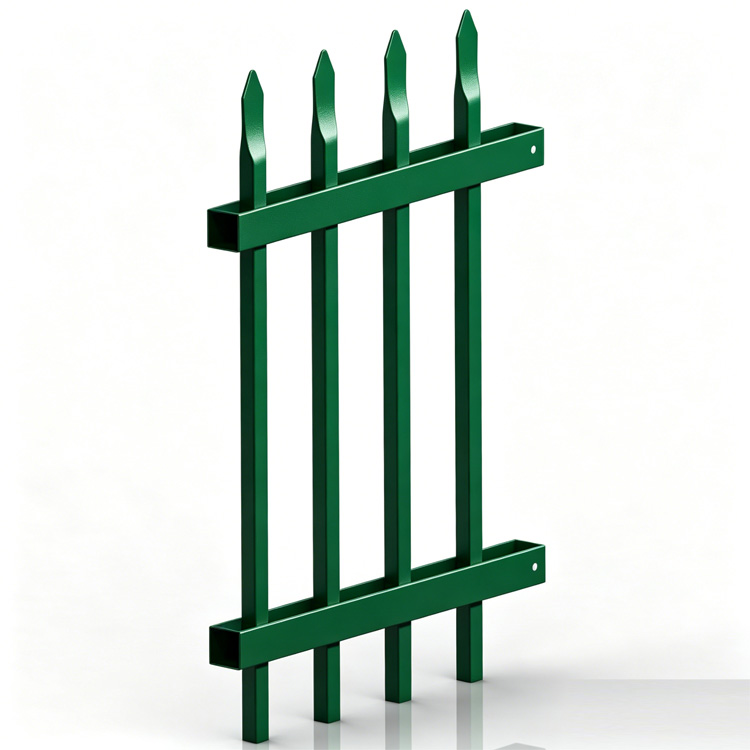

Railing Panels

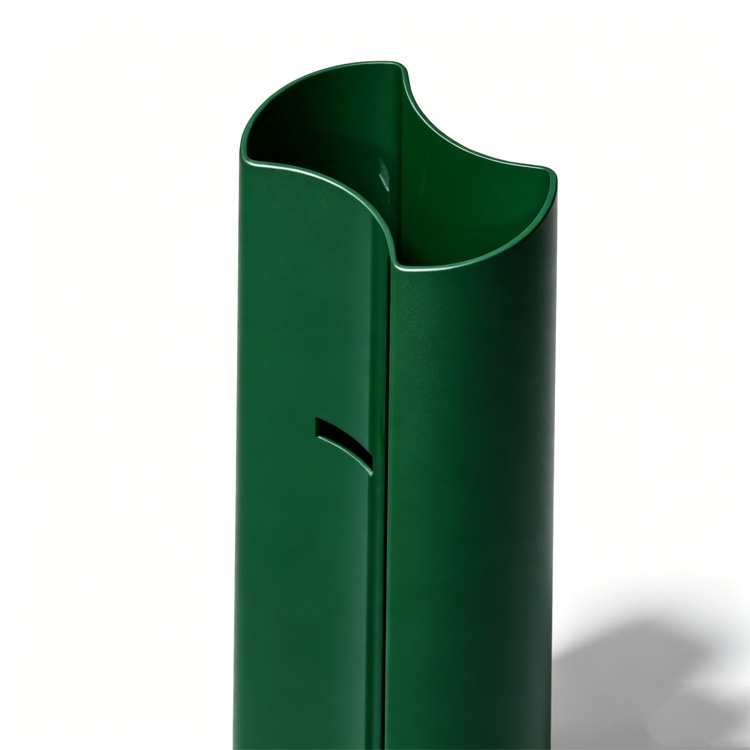

Posts

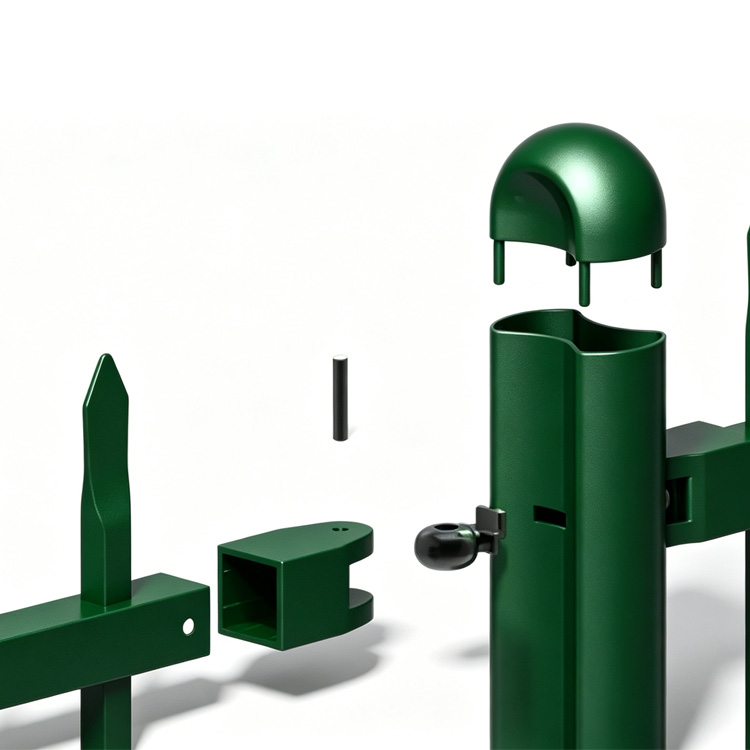

Connection structure
Anti-rust Treatment
Why Choose Us
Our quality compare with others
Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.
Gallery
Colors Available
Moss Green
CMYK 100 60 90 20
Anthracite Grey
CMYK 60 30 30 80
Signal Blue
CMYK 100 40 0 40
Rapeseed Yellow
CMYK 0 10 100 0
Signal White
CMYK 0 0 0 0
