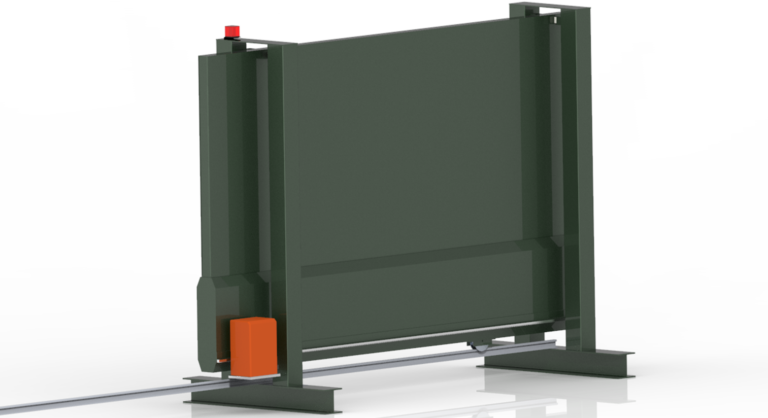

ACG Heavy Duty Anti-collision Gate
INTRODUCTION
The ACG Heavy-Duty Anti-Collision Gate combines advanced industrial design and state-of-the-art manufacturing technology. Featuring a robust anti-collision structure, a high-strength impact-resistant bottom beam, a premium sliding gate motor, and a versatile control system, it incorporates multiple anti-corrosion processes and high-adhesion polyester powder coating. This product sets the benchmark in the domestic industry for environmental sustainability, aesthetics, structural innovation, safety, and extended service life.
FEATURES
Self-Supporting Structure
Designed with a heavy-duty anti-collision bottom beam capable of withstanding an impact force of 1108KJ.
Equipped with specialized high wear-resistant pulleys and 25kg-grade tracks, ensuring smooth and reliable gate operation.
The fully sealed structure of the door leaf enhances privacy and security.
Advanced Driving System
Powered by the FAAC imported drive system, delivering stable performance and offering adjustable speeds between 9-30m/min.
Supports remote control for convenient long-distance gate operation.
Includes delay automatic shutdown and activation, along with operational status indicators (open, close, run).
Switches seamlessly to manual mode during power outages, ensuring uninterrupted functionality.
Exceptional Anti-Corrosion Performance
Exceptional anti-corrosion performance, backed by a 10-year corrosion-resistance guarantee.
Base material is hot-dip galvanized with a zinc coating of ≥120g/m² (double-sided).
Undergoes a 19-step pre-treatment process for superior coating adhesion (rated Level 0).
Finished with Akzo Nobel outdoor powder coating, ensuring resistance to peeling, chipping, and weathering.
COMPONENTS & PARAMETERS
Gate
| Item | Parameter |
|---|---|
| Width(mm) | 4000/5000/6000 |
| Height(mm) | 3000/3500 |
| Bottom Beam Size(mm) | 200 * 450 * 10.0 |
| Bottom beam material | Q235 |
| Track | 25 kg standard track |
| Drive system | FAAC844ER-3P |
| Control mode | Remote control/line control |
| Item | Parameter |
|---|---|
| Brand | FAAC Italy |
| Type | 844ER-3P |
| Authentication | Conformité Européenne |
| Transmission mode | Rack and pinion |
| Limiting method | Magnetic induction limit |
| Clutch | Oil immersed double disc |
| Running speed（m/min） | 9～12 |
| Voltage(Vac +6% -10%; 50-60Hz) | 400 (3ph + N) |
| Absorbed power(W) | 950 |
| Protection grade | IP44 |
| Ambient temperature（℃） | -20 ～ +55 |
| Maximum thrust(daN) | 250 |
Electric Motor
Remote Control
Control System Functions
- Supports multiple operation modes, including remote control, button switch, and long-range control.
- Includes advanced safety features, such as collision prevention during gate closure and operation warning signals.
- Equipped with overheating and overload protection for enhanced reliability.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m², while the outer coating is applied with polyester electrostatic powder, achieving a thickness of 100-120μm.
Available in over 200 RAL color options to suit diverse design preferences.
The ACG heavy-duty anti-collision gate delivers unparalleled security, durability, and functionality, making it the ideal solution for high-impact and high-security applications.
