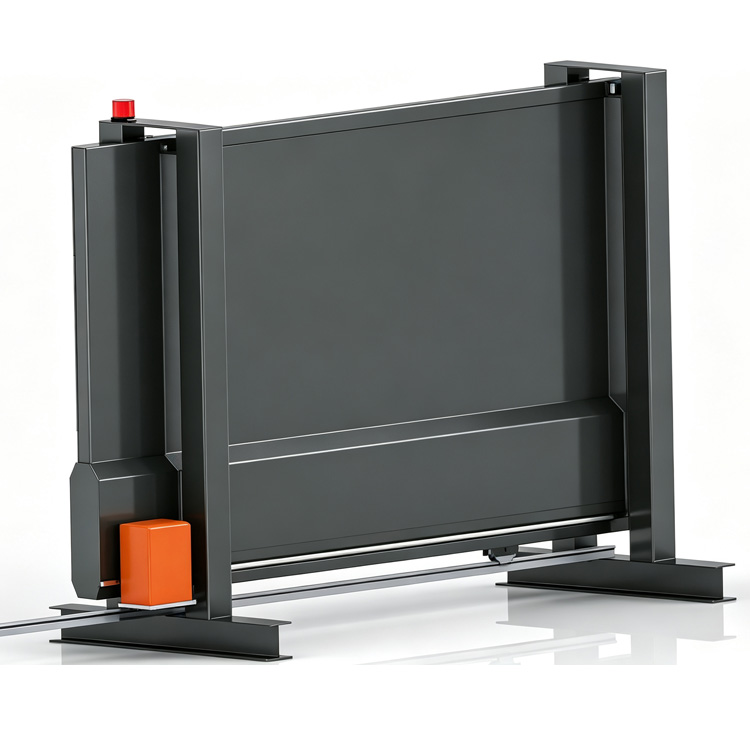

ACGHeavy Duty Anti-collision Gate - Command Fencing-China Fence Company Heavy Duty Anti-collision Gate

Introduction

The ACG Heavy-Duty Anti-Collision Gate combines advanced industrial design and state-of-the-art manufacturing technology. Featuring a robust anti-collision structure, a high-strength impact-resistant bottom beam, a premium sliding gate motor, and a versatile control system, it incorporates multiple anti-corrosion processes and high-adhesion polyester powder coating. This product sets the benchmark in the domestic industry for environmental sustainability, aesthetics, structural innovation, safety, and extended service life.

Self-Supporting Structure

Designed with a heavy-duty anti-collision bottom beam capable of withstanding an impact force of 1108KJ.
Equipped with specialized high wear-resistant pulleys and 25kg-grade tracks, ensuring smooth and reliable gate operation.
The fully sealed structure of the door leaf enhances privacy and security.

Advanced Drive System

Powered by the FAAC imported drive system, delivering stable performance and offering adjustable speeds between 9-30m/min.
Supports remote control for convenient long-distance gate operation.
Includes delay automatic shutdown and activation, along with operational status indicators (open, close, run).
Switches seamlessly to manual mode during power outages, ensuring uninterrupted functionality.

Gate Specifications		Electric Motor
Item	Parameter	Item	Parameter
Width (mm)	4000 / 5000 / 6000	Brand	FAAC Italy
Height (mm)	3000 / 3500	Type	844ER-3P
Bottom Beam Size (mm)	200 × 450 × 10.0	Authentication	Conformité Européenne
Bottom Beam Material	Q235	Transmission Mode	Rack and pinion
Track	25 kg Standard Track	Limiting Method	Magnetic induction limit
Drive System	FAAC 844ER-3P	Clutch	Oil-immersed double disc
Control Mode	Remote control / Line control	Running Speed (m/min)	9–12
		Voltage	400 Vac (3ph + N), +6% / −10%, 50–60 Hz
		Absorbed Power (W)	950
		Protection Grade	IP44
		Ambient Temperature (°C)	−20 to +55
		Maximum Thrust (daN)	250

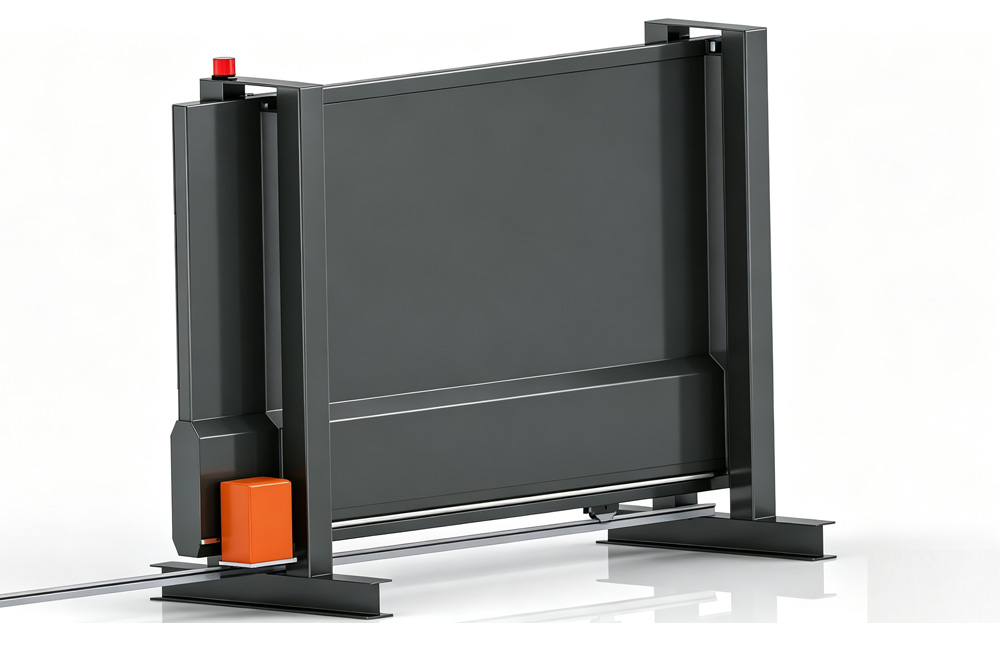

Product Visual

Anti-rust Treatment

Item	Specification
Class 1	HDG after fabrication,Zinc coating mass ≥ 275 g/m²
Class 2	HDG after fabrication,Zinc coating mass ≥ 505 g/m²
Class 3	Pre-galvanized + PE powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 80 μm
Class 4	Pre-galvanized + PVC powder coating,Zinc coating mass of steel wire ≥ 120 g/m²,Zinc coating mass of posts ≥ 275 g/m²,Coating thickness ≥ 150 μm
Class 5	HDG after fabrication + PVC powder coating,Zinc coating mass of steel wire ≥ 220 g/m²,Zinc coating mass of posts ≥ 505 g/m²,Coating thickness ≥ 300 μm

Why Choose Us

Our quality compare with others

Our welded mesh fences feature heavy galvanizing that outperforms rust-prone alternatives. Made with high-grade steel wires, our fences deliver superior strength and durability. Unlike others you may see in the market—often breaking or corroding within a short time—our products are built to last.
