3DF Metal Fence Mesh & Profiled Posts C

3DF Metal Fence Mesh & Profiled Posts C

Introduction

Constructed with square steel posts and equipped with dedicated anti-theft connectors, the 3DF Wire Mesh Fence features 3D single wire welded mesh. Its design is simple yet elegant, offering dynamic and smooth lines that can adapt to uneven terrain and accommodate installations from different angles. The fence utilizes a push-type installation method, ensuring convenience and efficiency.

Features

Secure

Using specialized connectors and anti disassembly bolts to fix the mesh, which has strong anti-theft function; The overall design of the fence has no focal points, providing excellent anti climbing performance;

Durable

The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;

Practical

Adapt to uneven terrain and installation from different angles;

Easy to master, simple and fast, and cost-effective.

Colors Available

Popular colors
All other colors

Gallery

Download Documents

3D Metal Fence Mesh &
Profiled Posts B​–PXN&GP-1630

3D Metal Fence Mesh &
Profiled Posts B​–PXN&GP-1730

3D Metal Fence Mesh &
Profiled Posts B​–PXN&GP-1930

3D Metal Fence Mesh &
Profiled Posts B​–PXN&GP-2130

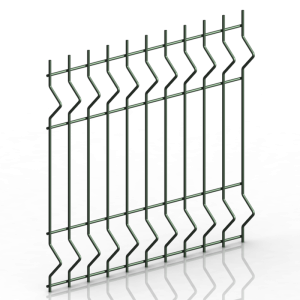

1, Single Horizontal Wire Mesh Panel

NameParameter
Mesh Height(mm)1430/1630/1830/2030/2230/2430
Mesh Width(mm)2500/3000
Wire Diameter(mm)Ø4.5/Ø5.0/Ø6.0
Vertical Wire Spacing(mm)50/55/65
Horizontal Wire Spacing (mm)100/200
MaterialQ195
Zn Coating (g/㎡)≥80
Coating Thickness(μm)≥100
ColorRAL Color Series

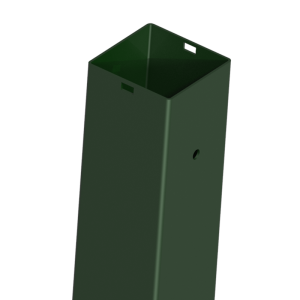

2, Post specification

NameParameter
Size(mm)50 * 50/60 * 60/60 * 90
Thickness(mm)1.5/2.0/3.0
MaterialQ235
Height(mm)500-3000
Zn coating(g/㎡)≥80
ColorRAL Color Series
CoverABS/Q235

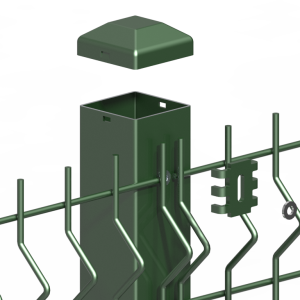

3, Mesh Connection

The post buckle groove structure is connected with a mesh, without external connectors, that has strong anti disassembly function.

4, Surface Treatment(Anti-rust Treatment)

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

 The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

5, Optional Accessaries

razor wire tape

Reference

What Our Clients Say

As one of the popular fences, we sold 10000m welded mesh fence to our distributor every month.

2023,40000m welded wire mesh fence for Thailand

2024,10000m welded wire mesh fence for Chancay Port Lima,Peru

2025,50000m welded mesh fence for Rwanda

Frankly speaking, I was looking for a stable supplier in China, and I was very satisfied with the quality of the supplier with its own factory owned by ChinaFenceCompany. Especially after we met in China I decided to have longer partnership with them. They are very very professional and have solved all my doubts about product technology, packaging and shipping information. They are very professional compared with other suppliers. And because of that,the ChinaFenceCompany team is more confident and proud of the high end products. There is a 12 hour time difference between my country and China, but I can still get online services every day. It’s awesome!
-Jason (Distributor)
I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name “O”), and the second is ChinaFenceCompany. I like to work with “O” because they can not customize high end fencing products. I like working with ChinaFenceCompany because ChinaFenceChina is professional and dedicated and can tailor make products. In 2024, I got a larger order, which was very difficult to fabricate, so I divided it into 2 parts for “O” and ChinaFenceCompany. One day, I came to China. According to the schedule, I met company “O” on the first day, and at 9:00 AM the next day I planned to meet ChinaFenceCompany. On the first day I had dinner with company “O”. It was late at night about 12:30 when I returned to the hotel, and I sent ChinaFenceCompany a message that the meeting would be postponed until the afternoon at 1:30 instead of the morning time. And I got a reply immediately surprisingly. I feel so sorry that I disturbed ChinaFenceCompany’s sleep at 12:30am. In the next day learned: In order to ensure quality, ChinaFenceCompany sales team has been in factory for 2 days and 1 night. Since then ChinaFenceCompany has become my only supplier.
-Mark (Distributor)
My name is Danial from South Africa and we were a very small trader a few years ago moved from America. We buy fences from locals.One day I saw ChinaFenceCompany website www.chinafencecompany.com . Their prices are very good and the quality is super good. We talked a lot with each other. I am very satisfied with the team.
-Danial (Trader)
I ‘m Muhammad from Dubai. I met ChinaFenceCompany at the Canton Fair a few years ago. At that time I was bidding for a military high security project. A very large nation level project. In fact, I am not professional with fencing industry. But the team are so patient to give me sufficient information ,it is like training ,so when had a chance to bid for the large project, and I came back to ChinaFenceCompany again. ChinaFenceCompany helped me find the best solution, we got tender together and cooperated happily. I am very grateful to ChinaFenceCompany.
-Mohammed (Contractor)

Packaging and Shipping
