2DF Metal Fence Mesh & Profiled Posts C
INTRODUCTION
Crafted from a seamlessly formed all-steel curved post and a 2D double horizontal wire welded mesh, this fence boasts a simple yet elegant appearance, offering a dynamic and smooth aesthetic. The integrated design features a post buckle groove connection that eliminates the need for connectors, allowing for easy adaptation to uneven terrain and versatile installation from various angles. The innovative push-type installation ensures quick and hassle-free setup.
FEATURES
Security
Using specialized connectors and anti disassembly bolts to fix the mesh, which has strong anti-theft function; The overall design of the fence has no focal points, providing excellent anti climbing performance;
Durability
Practicality
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1430/1630/1830/2030/2230/2430 |
| Mesh Width(mm) | 2500/3000 |
| Wire Diameter(mm) | Ć5.0+Ć4.5+Ć5.0/Ć6.0+Ć5.0+Ć6.0/Ć8.0+Ć6.0+Ć8.0 |
| Vertical Wire Spacing(mm) | 50/55/65 |
| Horizontal wire spacing (mm) | 200 |
| Material | Q195/Q235 |
| Zn coating(g/ć”) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 70 * 100 |
| Thickness(mm) | 1.0/1.2/1.5 |
| Material | Q235/DC51D |
| Height | 1000-3000 |
| Material | Q235/DC51D |
| Zn coating | 80-120 g/ć” |
| Color | RAL Color Series |
| Cover | ABS |
Post

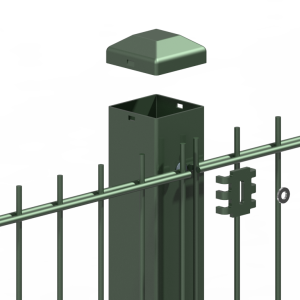

Connection
The integrated design of the column is connected to the mesh with dedicated cards and anti-theft bolts, which has strong anti-theft function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m Ā², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m Ā².
Surface Technology

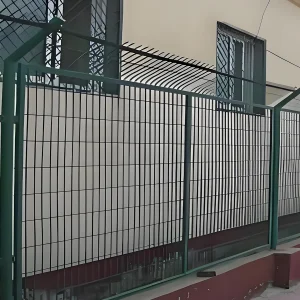

PROJECTS OF APPLICATION SCENARIOS
