CLY Chain Link Metal Fence Mesh & Profiled Posts D
INTRODUCTION
The CLY Chain Link Wire Mesh Fence is a versatile fencing solution composed of steel posts, reinforced crossbars, and woven steel wire mesh. The posts and crossbars are secured with specialized connectors, ensuring easy installation and adaptability to various angles and slopes.
COMPONENTS & PARAMETERS
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 2000/2500/3000 |
| Mesh Width(mm) | 2000/3000 |
| Wire Diameter Before Coating(mm) | Ø3.55/Ø4.75 |
| Wire Diameter After Coating(mm) | Ø5.00/Ø6.40 |
| Tensile Strength(MPa) | 375/500 |
| Mesh Size(mm) | 50 |
| Material | Q195 |
| Zn coating (g/㎡) | ≥80 |
| Color | RAL Color 6005(blackish green) |
| Name | Parameter |
|---|---|

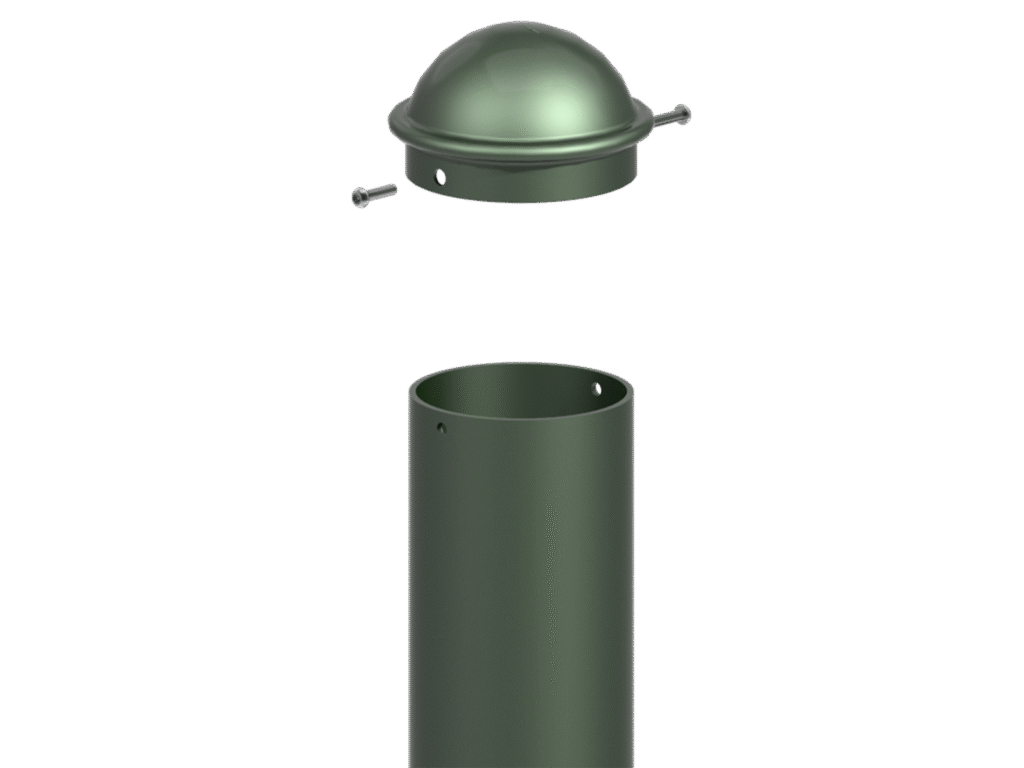

| End Post Size(mm) | Ø70 /Ø100 |
| Central Post Size(mm) | Ø56 /Ø60 |
| Thickness(mm) | 3.0/4.0 |
| Height(mm) | 500-3000 |
| Material | Q235 |
| Zn coating(g/㎡) | ≥80 |
| Coating Thickness(μm) | ≥100 |
| Color | RAL 6005(blackish green) |
| Cover | Q235 |
Post
Connection
The post substrate is hot-dip galvanized with a zinc coating of ≥80g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of ≥100μm. The steel wire is hot-dip galvanized on the substrate, with a galvanizing amount of ≥ 80g/m ², and the outer coating is PVC coated with a layer thickness of ≥ 0.5mm.
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Surface Technology
