The qualitative and alternately twisted barbed wire
Introduction
Barbed wire (also known as barb wire) is a type of wire commonly used to add extra deterrence to fences. It features sharp metal points, called barbs, which make climbing over it difficult and painful. Invented in 1867 in the United States by Lucien B. Smith, barbed wire has since been widely used for various applications.
Features

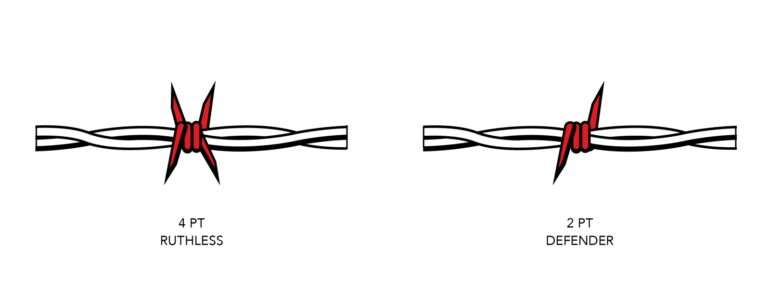

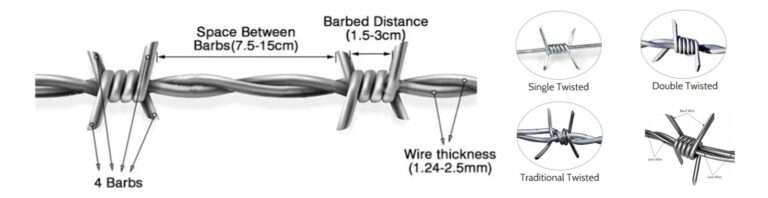

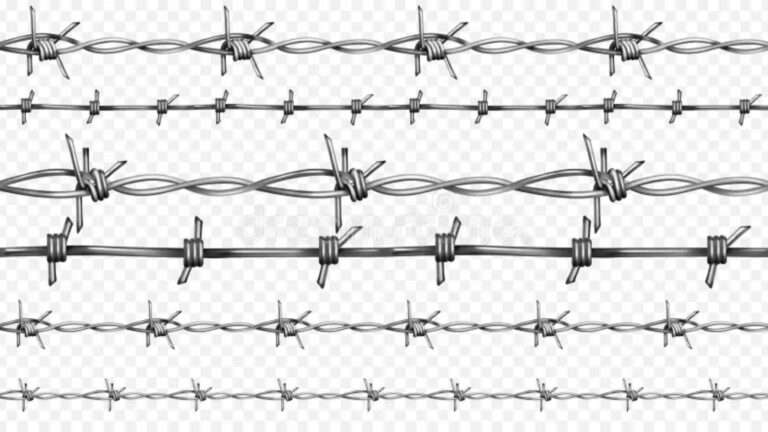

Barbed wire consists of line wires (support), barbs (deterrence), and a twisting structure (strength). With different barb spacing and surface treatments, it can be adapted for farms, boundaries, prisons, military, or other high-security applications.Barbs are the key component of barbed wire. Strong and sharp, they resist bending, deter intruders, and safely contain animals on farms and ranches. Barbs come in two main types: single barbs (2-point), where one barb wire is twisted on the line wire—suitable for general use and open farms; and double barbs (4-point), where two barb wires are twisted together for higher deterrence—ideal for heavy-duty applications or areas with herd pressure.
| Specification (Line × Barb BMG) | Line × Barb Dia. (mm) | Barb Spacing 3″ (76.2mm) m/kg | Barb Spacing 4″ (101.6mm)m/kg | Barb Spacing 5″ (127mm)m/kg | Barb Spacing 6″ (152.4mm)m/kg |
|---|---|---|---|---|---|
| 12 × 12 BMG | 2.64×2.64 | 6.5 | 6.8 | 7 | 7.5 |
| 12 × 14 BMG | 2.64×2.03 | 7.5 | 7.7 | 8.0 | 8.5 |
| 12 × 15 BMG | 2.64×1.83 | 7.8 | 8.0 | 8.3 | 8.8 |
| 13 × 13 BMG | 2.34×2.34 | 7.5 | 7.8 | 8.1 | 8.6 |
| 13 × 14 BMG | 2.34×2.03 | 8.2 | 8.4 | 9.7 | 9.2 |
| 14 × 14 BMG | 2.03×2.03 | 9.5 | 9.8 | 10.2 | 10.8 |
| 14 × 15 BMG | 2.03×1.83 | 9.8 | 10.1 | 10.5 | 11 |
| 15 × 15 BMG | 1.83×1.83 | 11 | 11.4 | 11.8 | 12.5 |
| 16 × 16 BMG | 1.63×1.63 | 13 | 13.5 | 14 | 14.8 |

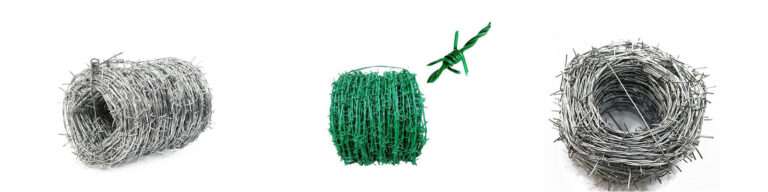

Barbed wires can be galvanized with different coating weights according to your requirements, or hot-dip PVC coated in customized colors to meet your specific needs.
🌟 Colors Available 🌟
Our recommended colors are Green RAL 6005, Black RAL 7016,and those are also the most popular colors for our clients.
🌟 Product Advantages 🌟
Stylish & Practical – Designed with both beauty and functionality in mind, our fencing is easy to transport and install.
Strong & Durable – Made from high-quality steel with excellent anti-damage performance, ensuring long service life with reliable protection.
Custom Colors & Design – Available with PVC or plastic coating in a wide range of colors; different column and mesh combinations create a modern, eye-catching look.
Flexible & Customizable – Offered in various sizes and specifications to perfectly match your project needs.
Safe & Refined – Manufactured with advanced machinery for uniform mesh, smooth edges, and no burrs—safe to handle and visually pleasing.
🌟 Product Packaging 🌟

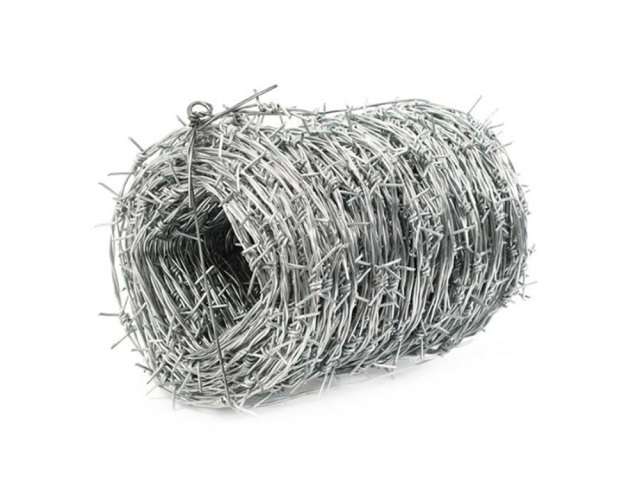

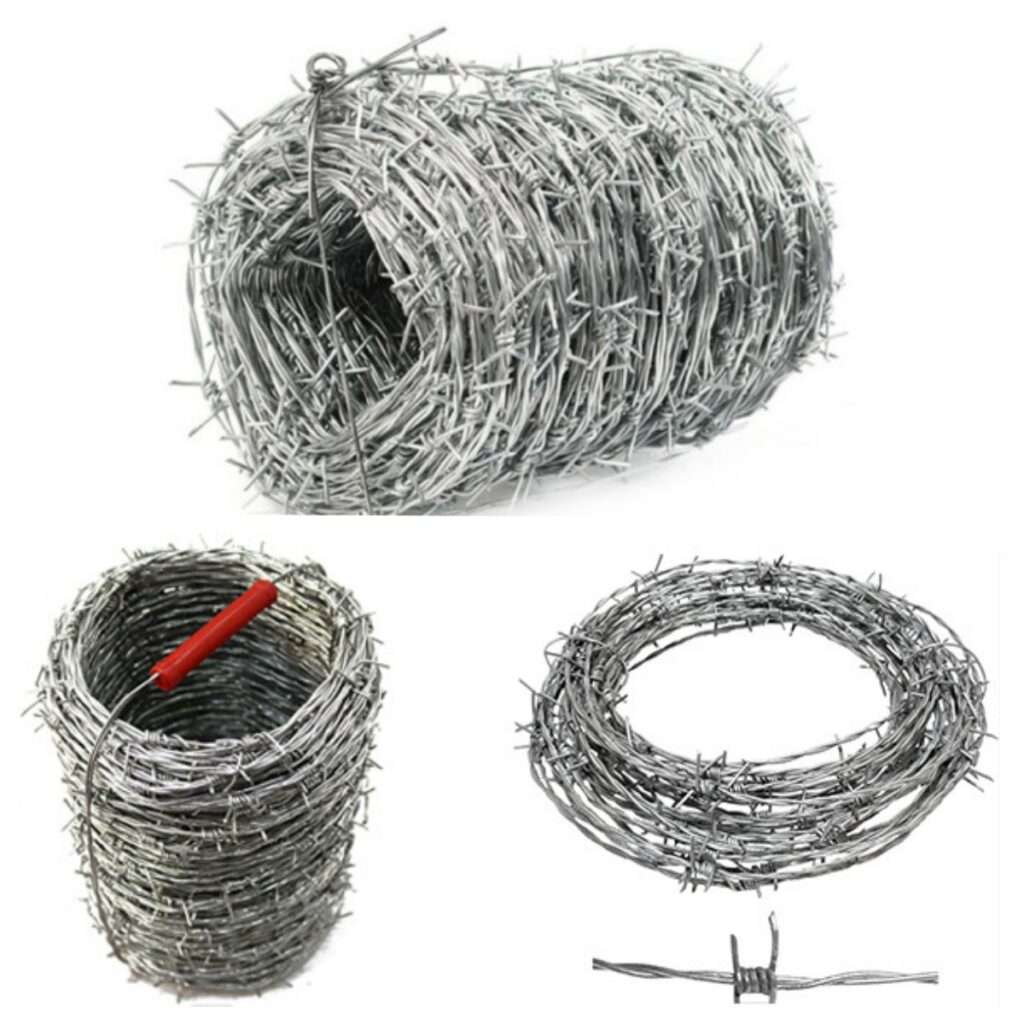

Barbed wire is typically supplied in rolls, with numerous barbs along the surface.
For easier loading, handling, and transportation, we provide different handle options for you to choose from. These handles ensure safe manual operation and help prevent injury during use.
Available handle types:
Steel wire roller with steel wire handle
Steel wire roller with plastic handle
Steel wire roller with wooden handle
Wooden roller with rope handle
Packaging:
The barbed wire can be packaged according to your specific requirements.

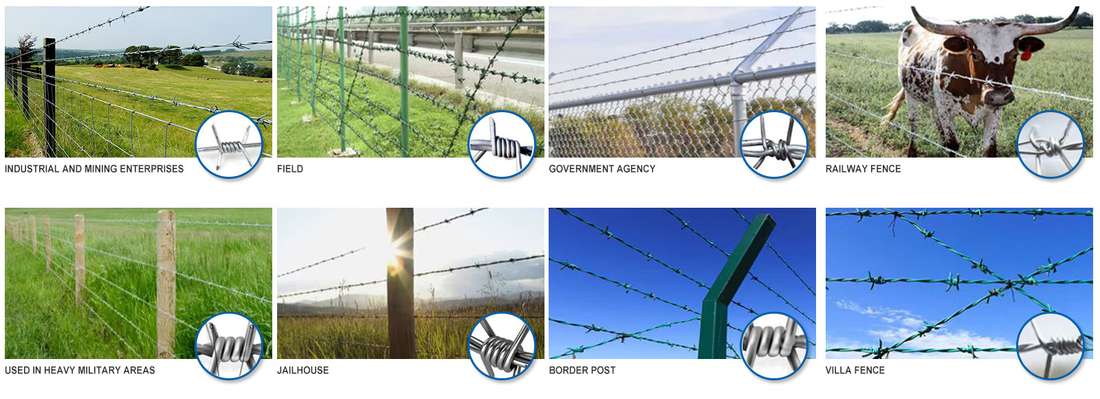

🌟 Product Applications 🌟

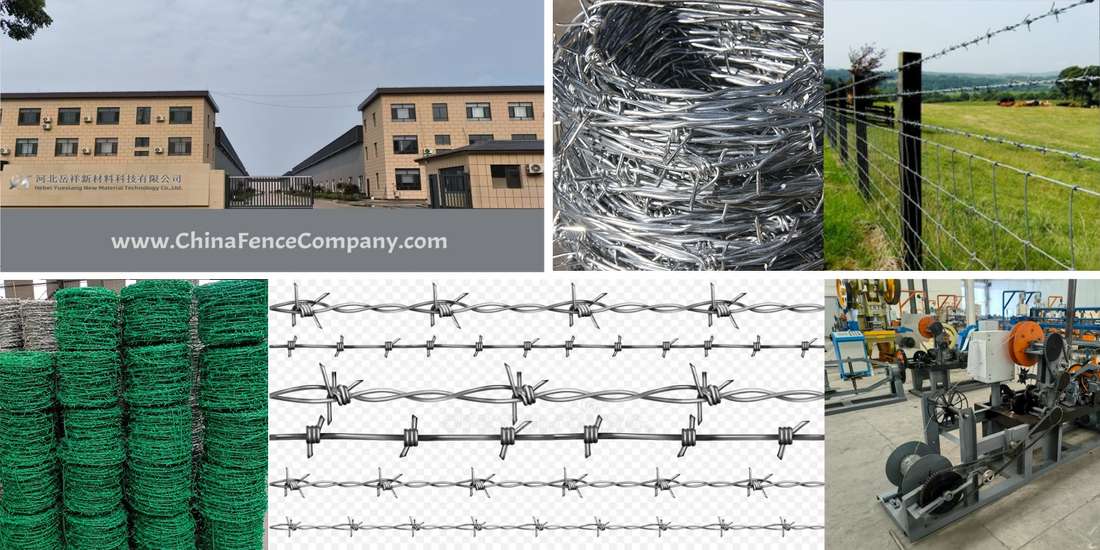

🌟 Barbed Wire Manufacturer 🌟

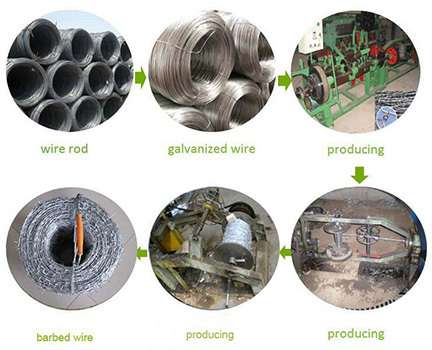

As a barbed wire manufacturer, we operate our own workshop equipped with advanced barbed wire production machines and an in-house zinc coating tank. This allows us to produce high-quality barbed wire as well as a full range of premium fencing products.
🌟 Our Qualifications 🌟
We adhere to the principle of “quality first”, leveraging advanced equipment and technology to ensure superior products. In service, we uphold the values of honesty, cooperation, and open communication. With our own production workshop, China Fence Company strictly follows ISO management standards throughout procurement, production, sales, and after-sales service.
Below are our certifications:
🌟 Our business worldwide 🌟
China Fence Company conducts business worldwide, supplying barbed wire, concertina razor wire, and a wide range of fencing products in partnership with clients across the globe.
1.Galvanized barbed wire
| Name | Parameter |
|---|---|
| Meter/ Roll | 50-450 |
| Kg/Roll | 18-40 |
| Wire Diameter(mm) | 1.63-2.64 |
| Roll Diameter(mm) | 400-500 |
| Material | Q195/AISI 304 |
| Class 1: Zn Coating (g/㎡) | ~185–190 |
| Class 2: Zn Coating (g/㎡) | ~275 |
| Class 3: Zn Coating (g/㎡) | ~350–366 |
2.What can you do with barbed wire?
Barbed wire is a cost-effective and versatile fencing solution widely used for security, agriculture, and industrial purposes. It serves as a strong deterrent against trespassers when installed on walls, fences, or gates, making it ideal for prisons, military areas, borders, warehouses, and construction sites. In agriculture, it effectively contains livestock such as cattle and sheep while preventing wild animals from damaging crops or entering ranches. Barbed wire is also useful for temporary or emergency setups in disaster zones or remote areas, thanks to its quick and easy installation. With its durability and adaptability, barbed wire remains one of the most reliable choices for boundary control and protection.
3, Surface Treatment(Anti-rust Treatment)
The substrate is hot-dip galvanized with a zinc coating of 185-366g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Reference
What Our Clients Say
As one of the popular fences, we sold 10000m welded mesh fence to our distributor every month.
2023,40000m welded wire mesh fence for Thailand
2024,10000m welded wire mesh fence for Chancay Port Lima,Peru
2025,50000m welded mesh fence for Rwanda
Frankly speaking, I was looking for a stable supplier in China, and I was very satisfied with the quality of the supplier with its own factory owned by ChinaFenceCompany. Especially after we met in China I decided to have longer partnership with them. They are very very professional and have solved all my doubts about product technology, packaging and shipping information. They are very professional compared with other suppliers. And because of that,the ChinaFenceCompany team is more confident and proud of the high end products. There is a 12 hour time difference between my country and China, but I can still get online services every day. It’s awesome!
-Jason (Distributor)
I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name “O”), and the second is ChinaFenceCompany. I like to work with “O” because they can not customize high end fencing products. I like working with ChinaFenceCompany because ChinaFenceChina is professional and dedicated and can tailor make products. In 2024, I got a larger order, which was very difficult to fabricate, so I divided it into 2 parts for “O” and ChinaFenceCompany. One day, I came to China. According to the schedule, I met company “O” on the first day, and at 9:00 AM the next day I planned to meet ChinaFenceCompany. On the first day I had dinner with company “O”. It was late at night about 12:30 when I returned to the hotel, and I sent ChinaFenceCompany a message that the meeting would be postponed until the afternoon at 1:30 instead of the morning time. And I got a reply immediately surprisingly. I feel so sorry that I disturbed ChinaFenceCompany’s sleep at 12:30am. In the next day learned: In order to ensure quality, ChinaFenceCompany sales team has been in factory for 2 days and 1 night. Since then ChinaFenceCompany has become my only supplier.
-Mark (Distributor)
My name is Danial from South Africa and we were a very small trader a few years ago moved from America. We buy fences from locals.One day I saw ChinaFenceCompany website www.chinafencecompany.com . Their prices are very good and the quality is super good. We talked a lot with each other. I am very satisfied with the team.
-Danial (Trader)
I ‘m Muhammad from Dubai. I met ChinaFenceCompany at the Canton Fair a few years ago. At that time I was bidding for a military high security project. A very large nation level project. In fact, I am not professional with fencing industry. But the team are so patient to give me sufficient information ,it is like training ,so when had a chance to bid for the large project, and I came back to ChinaFenceCompany again. ChinaFenceCompany helped me find the best solution, we got tender together and cooperated happily. I am very grateful to ChinaFenceCompany.
-Mohammed (Contractor)
Packaging and Shipping
