The anti intrusion protection razor wire
Introduction

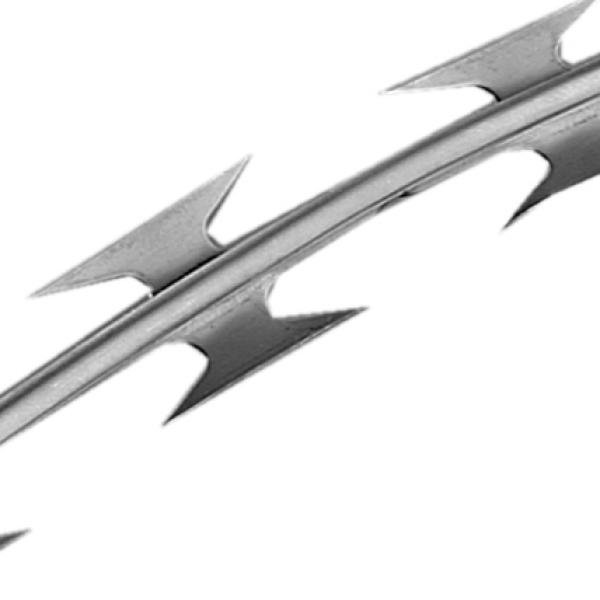

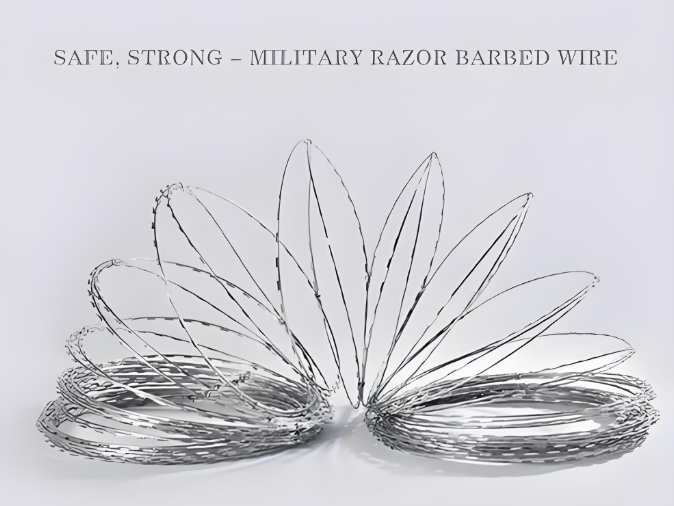

Razor Barbed Wire (Concertina Razor Wire) is a high-security fencing solution made from hot-dip galvanized or stainless steel. Its sharp blades and strong core wire provide maximum protection, devided into 2 types as CBT and BTO,easy installation, and excellent weather resistance — perfect for industrial, military, and high-security perimeters.
CBT stands for Concertina Barbed Tape, which refers to razor wire that is formed into concertina (spiral) coils and connected with clips to create a spring-like barrier. It typically features long, sharp blades and is widely used for high-security applications requiring maximum deterrence. BTO stands for Barbed Tape Obstacle, which refers to razor barbed tape used as straight lines, cross obstacles, or flat-wrap barriers. BTO usually has shorter or medium-length blades and is suitable for general perimeter security where moderate protection is needed.

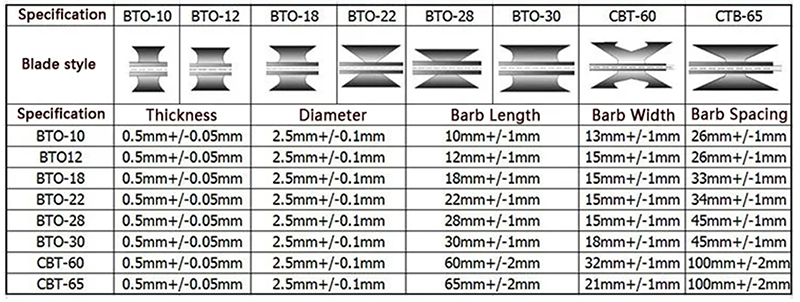

| Type | Blade Profile | Outside Diameter (OD)mm | No. of Loops per Coil | Standard Length per Coil |
|---|---|---|---|---|
| CBT-60 | Long Blade | 450 / 600/ 700 | 33 / 45 / 55 | 8 – 15 m |
| CBT-65 | Long Blade | 730/ 800 / 960 | 56 / 60 / 72 | 10 – 20 m |
| BTO-12 | Short Blade | 450/ 600 | 33 / 45 | 8 – 15 m |
| BTO-22 | Medium Blade | 600/ 730/ 800 | 45 / 56 / 60 | 10 – 18 m |
| BTO-25 | Medium-Long Blade | 730/ 800 | 56 / 60 | 12 – 20 m |
| BTO-30 | Long Blade | 730/ 960 | 56 / 72 | 15 – 22 m |
Material: Manufactured from high-quality low- or medium-carbon steel strip or stainless-steel strip, fitted with razor-sharp steel blades and reinforced with high-tensile core wire for maximum strength and durability.
Product Types:

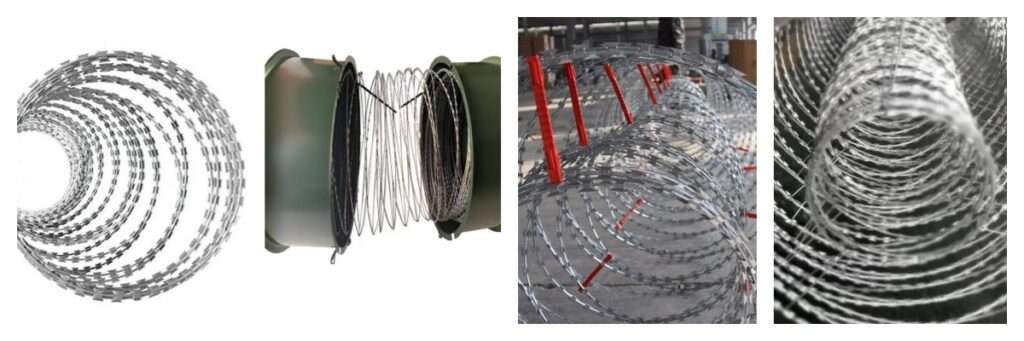

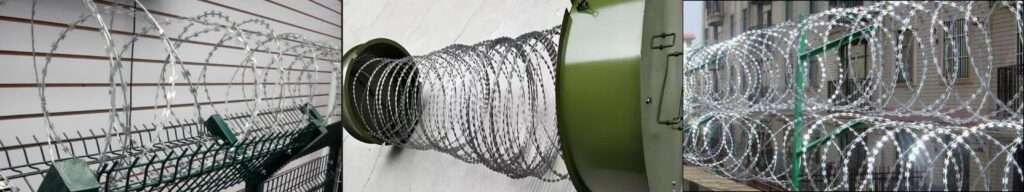

Single Coil Concertina Wire is installed without clips and expands naturally into loops when mounted on walls. It is cost-effective, easy to install, and widely used for general perimeter security.
Crossed Razor Wire consists of two concertina coils clipped together, creating an intersecting spiral pattern when deployed. This design increases strength, enhances security, and provides an effective yet visually striking barrier.

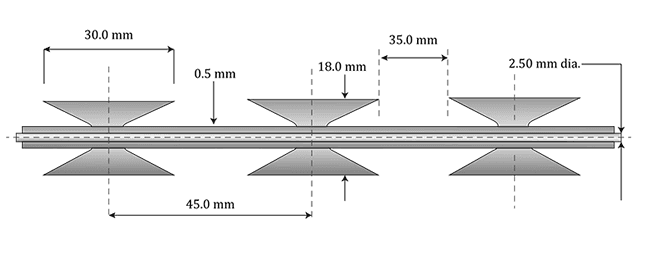

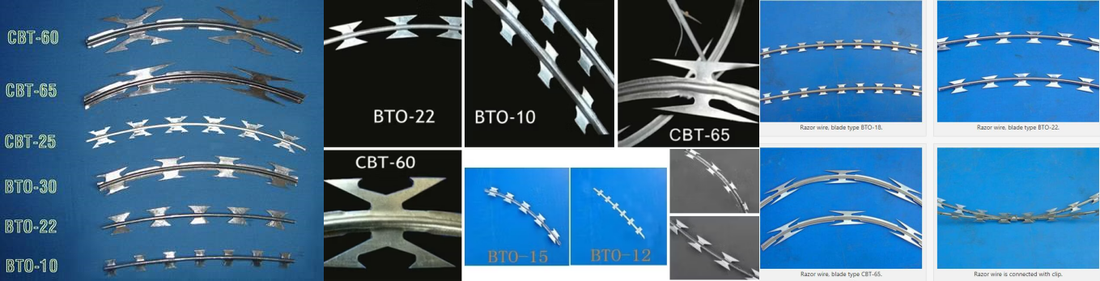

Razor wire is available in BTO-12, BTO-15, BTO-22, BTO-30, CBT-60, and CBT-65, with 0.5–0.6 mm thick steel and blades 10–65 mm long. It offers high strength, corrosion resistance, and excellent security. Options include single coil (cost-effective and easy to install), crossed coil (extra strength and deterrence), flat wrap (compact and space-saving), and welded razor mesh fence (high-security, customizable panels for fences, gates, and military use)..
Flat Wrap Razor Wire is a modern form of razor wire where loops are pressed into a flat panel and then expanded. It is commonly combined with straight-line razor wire to form a continuous defense wall or used independently as a compact, space-saving barrier.
Welded Razor Mesh Fence is an innovative security solution made by welding razor wire into a mesh panel. It combines high security with an attractive appearance and is ideal for fencing, gate protection, windows, and high-security military applications. Specifications can be customized according to customer requirements.
🌟 Colors Available 🌟
Our recommended colors are Green RAL 6005, Black RAL 7016,and those are also the most popular colors for our clients.
🌟 Product Advantages 🌟
🌟 Product Packaging 🌟

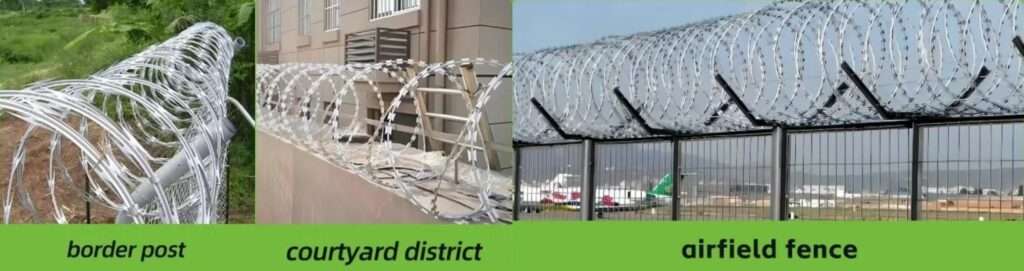

🌟 Product Applications 🌟
🌟 Razor Wire Manufacturer 🌟

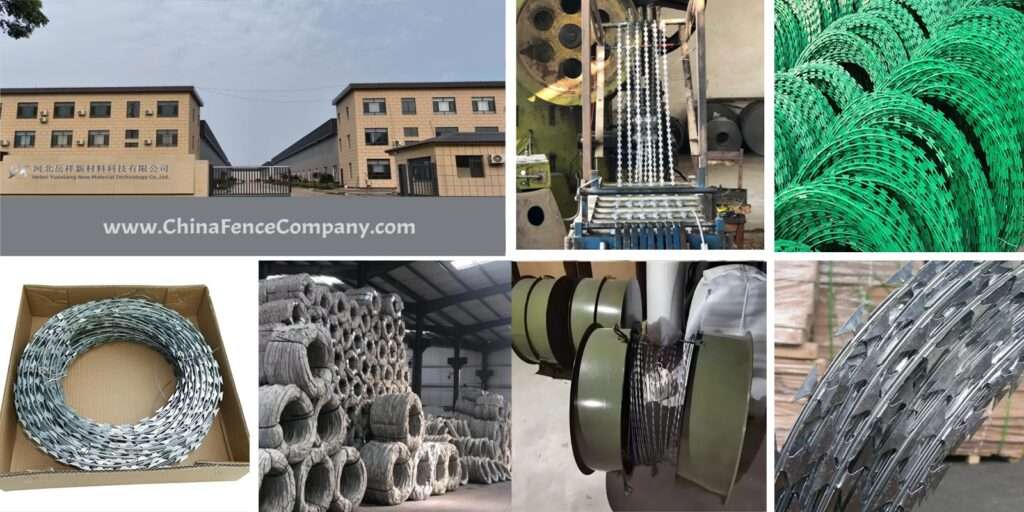

As a razor wire manufacturer, we operate our own workshop equipped with advanced razor wire production machines and an in-house zinc coating tank. This allows us to produce high-quality razor wire as well as a full range of premium fencing products.
🌟 Our Qualifications 🌟
We adhere to the principle of “quality first”, leveraging advanced equipment and technology to ensure superior products. In service, we uphold the values of honesty, cooperation, and open communication. With our own production workshop, China Fence Company strictly follows ISO management standards throughout procurement, production, sales, and after-sales service.
Below are our certifications:
🌟 Our business worldwide 🌟
China Fence Company conducts business worldwide, supplying barbed wire, concertina razor wire, and a wide range of fencing products in partnership with clients across the globe.
1, Single Horizontal Wire Mesh Panel
| Name | Parameter |
|---|---|
| Meter/ Roll | 7–15 m (depending on coil diameter & loops) |
| Kg/Roll | 8-15 |

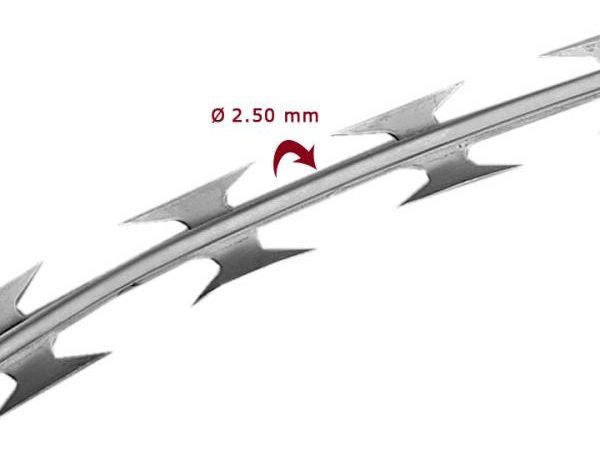

| Wire Diameter(mm) | 2.5 mm ± 0.1 mm |
| Roll Diameter(mm) | 450 mm, 500 mm, 700 mm, 960 mm |
| Material | Q195/AISI 304 |
| Class 1: Zn Coating (g/㎡) | ≥ 60 |
| Class 2: Zn Coating (g/㎡) | ≥ 100 |
| Class 3: Zn Coating (g/㎡) | ≥ 200–275 |
2,Galvanized razor wire
Galvanized Razor Wire Features & Benefits
High Security – Sharp blades provide a strong physical and visual deterrent against intruders.
Durable Construction – Made of high-tensile galvanized steel for superior strength.
Corrosion Resistant – Zinc coating ensures long service life even in harsh environments.
Safe & Reliable – Designed to maintain structural integrity under pressure or cutting attempts.
Versatile Applications – Widely used in military bases, prisons, borders, factories, warehouses, and other high-security sites.
3, Surface Treatment(Anti-rust Treatment)
The substrate is hot-dip galvanized with a zinc coating of 60-275g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Reference
What Our Clients Say
As one of the popular fences, we sold 10000m welded mesh fence to our distributor every month.
2023,40000m welded wire mesh fence for Thailand
2024,10000m welded wire mesh fence for Chancay Port Lima,Peru
2025,50000m welded mesh fence for Rwanda
Frankly speaking, I was looking for a stable supplier in China, and I was very satisfied with the quality of the supplier with its own factory owned by ChinaFenceCompany. Especially after we met in China I decided to have longer partnership with them. They are very very professional and have solved all my doubts about product technology, packaging and shipping information. They are very professional compared with other suppliers. And because of that,the ChinaFenceCompany team is more confident and proud of the high end products. There is a 12 hour time difference between my country and China, but I can still get online services every day. It’s awesome!
-Jason (Distributor)
I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name “O”), and the second is ChinaFenceCompany. I like to work with “O” because they can not customize high end fencing products. I like working with ChinaFenceCompany because ChinaFenceChina is professional and dedicated and can tailor make products. In 2024, I got a larger order, which was very difficult to fabricate, so I divided it into 2 parts for “O” and ChinaFenceCompany. One day, I came to China. According to the schedule, I met company “O” on the first day, and at 9:00 AM the next day I planned to meet ChinaFenceCompany. On the first day I had dinner with company “O”. It was late at night about 12:30 when I returned to the hotel, and I sent ChinaFenceCompany a message that the meeting would be postponed until the afternoon at 1:30 instead of the morning time. And I got a reply immediately surprisingly. I feel so sorry that I disturbed ChinaFenceCompany’s sleep at 12:30am. In the next day learned: In order to ensure quality, ChinaFenceCompany sales team has been in factory for 2 days and 1 night. Since then ChinaFenceCompany has become my only supplier.
-Mark (Distributor)
My name is Danial from South Africa and we were a very small trader a few years ago moved from America. We buy fences from locals.One day I saw ChinaFenceCompany website www.chinafencecompany.com . Their prices are very good and the quality is super good. We talked a lot with each other. I am very satisfied with the team.
-Danial (Trader)
I ‘m Muhammad from Dubai. I met ChinaFenceCompany at the Canton Fair a few years ago. At that time I was bidding for a military high security project. A very large nation level project. In fact, I am not professional with fencing industry. But the team are so patient to give me sufficient information ,it is like training ,so when had a chance to bid for the large project, and I came back to ChinaFenceCompany again. ChinaFenceCompany helped me find the best solution, we got tender together and cooperated happily. I am very grateful to ChinaFenceCompany.
-Mohammed (Contractor)

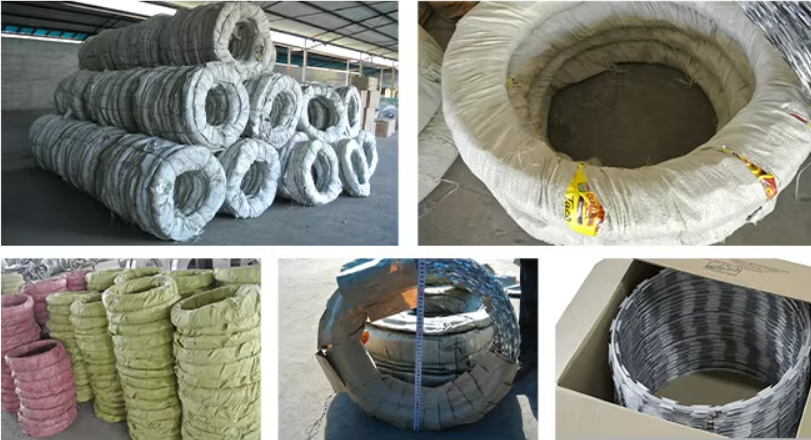

Packaging and Shipping
