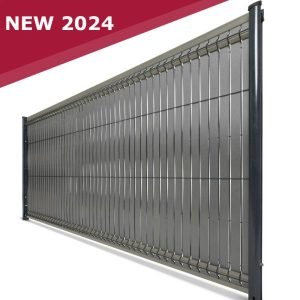

3DF Privacy Fence Panel & Profiled Posts C

3DF Metal Fence Mesh & Profiled Posts C

Introduction

Upgrade your fencing system with the 3DF Privacy Fence Panel & Profiled Posts C, a cutting-edge composite slats kit designed to fit standard 3D welded mesh fencing panels. This innovative privacy solution combines functionality with style—ideal for residential, commercial, and industrial applications.

Features

Eco-Friendly & Sustainable

– Made from high-quality recycled composite materials, this system is a greener alternative to traditional fencing.

UV-Resistant & Weatherproof

 – Built to withstand Australia’s harsh sun and varying climate without fading, cracking, or warping.

Quick & Easy Installation

– Designed for hassle-free assembly with minimal tools required—perfect for DIY or professional use.

Modern Aesthetic & Clean Finish

– The premium wood-like texture and sleek design add privacy and curb appeal to any property.

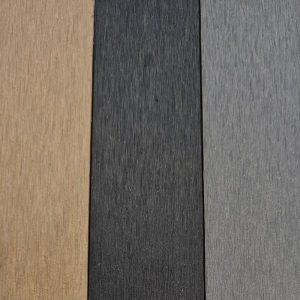

Colors Available

Popular colors
All other colors

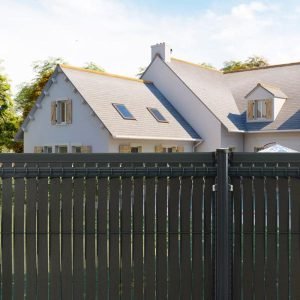

Gallery

1, Single Horizontal Wire Mesh Panel

Mesh Height(mm)1000-2430,Mesh Width(mm) 2000/2500,Wire Diameter(mm)
Ø4.0/Ø4.5,Vertical Wire Spacing(mm) 76.5/100,Horizontal wire spacing (mm) 12.5 Material Q195 Cover ABS Zn coating (g/㎡) 80-120ColorRAL Color Series

NameParameter
Mesh Height(mm)1000-2430
Mesh Width(mm)2000/2500
Wire Diameter(mm)Ø4.0/Ø4.5
Vertical Wire Spacing(mm)76.5/100
Horizontal wire spacing (mm)12.5
Material Q195
CoverABS
Zn coating (g/㎡)80-120
ColorRAL Color Series

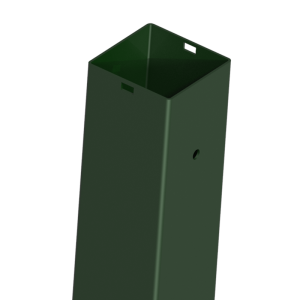

2, Post Parameters

Post specifications

NameParameter
Size(mm)54.4 * 100
Thickness(mm)1.5/2.0
Height1000-3000
Zn coating80-120 g/㎡
MaterialQ235
ColorRAL Color Series
CoverABS

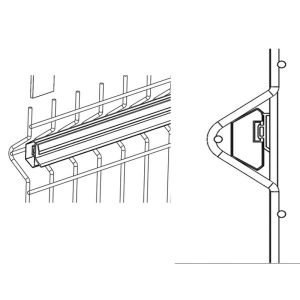

3, Mesh Connection

Connection method:

The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.

4, Surface Treatment(Anti-rust Treatment)

A. Hot Dipped galvanized(60-120g/m²) + Polyester Powder Coated (All colors in Ral)

B. Hot Dipped galvanized(121-550g/m²):

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

 The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

Reference

What Our Clients Say

As one of the popular fences, we sold 10000m welded mesh fence to our distributor every month.

2023,40000m welded wire mesh fence for Thailand

2024,10000m welded wire mesh fence for Chancay Port Lima,Peru

2025,50000m welded mesh fence for Rwanda

Frankly speaking, I was looking for a stable supplier in China, and I was very satisfied with the quality of the supplier with its own factory owned by ChinaFenceCompany. Especially after we met in China I decided to have longer partnership with them. They are very very professional and have solved all my doubts about product technology, packaging and shipping information. They are very professional compared with other suppliers. And because of that,the ChinaFenceCompany team is more confident and proud of the high end products. There is a 12 hour time difference between my country and China, but I can still get online services every day. It’s awesome!
-Jason (Distributor)
I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name “O”), and the second is ChinaFenceCompany. I like to work with “O” because they can not customize high end fencing products. I like working with ChinaFenceCompany because ChinaFenceChina is professional and dedicated and can tailor make products. In 2024, I got a larger order, which was very difficult to fabricate, so I divided it into 2 parts for “O” and ChinaFenceCompany. One day, I came to China. According to the schedule, I met company “O” on the first day, and at 9:00 AM the next day I planned to meet ChinaFenceCompany. On the first day I had dinner with company “O”. It was late at night about 12:30 when I returned to the hotel, and I sent ChinaFenceCompany a message that the meeting would be postponed until the afternoon at 1:30 instead of the morning time. And I got a reply immediately surprisingly. I feel so sorry that I disturbed ChinaFenceCompany’s sleep at 12:30am. In the next day learned: In order to ensure quality, ChinaFenceCompany sales team has been in factory for 2 days and 1 night. Since then ChinaFenceCompany has become my only supplier.
-Mark (Distributor)
My name is Danial from South Africa and we were a very small trader a few years ago moved from America. We buy fences from locals.One day I saw ChinaFenceCompany website www.chinafencecompany.com . Their prices are very good and the quality is super good. We talked a lot with each other. I am very satisfied with the team.
-Danial (Trader)
I ‘m Muhammad from Dubai. I met ChinaFenceCompany at the Canton Fair a few years ago. At that time I was bidding for a military high security project. A very large nation level project. In fact, I am not professional with fencing industry. But the team are so patient to give me sufficient information ,it is like training ,so when had a chance to bid for the large project, and I came back to ChinaFenceCompany again. ChinaFenceCompany helped me find the best solution, we got tender together and cooperated happily. I am very grateful to ChinaFenceCompany.
-Mohammed (Contractor)

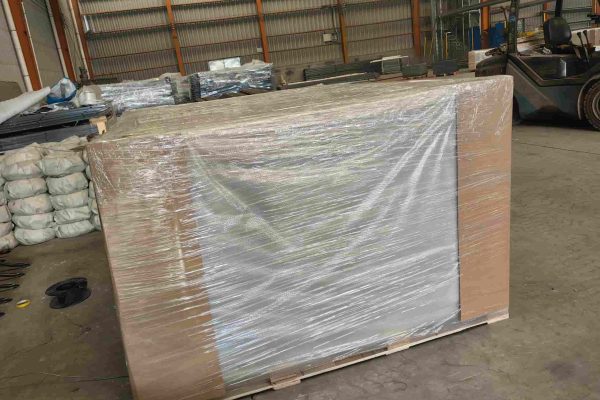

Packaging and Shipping
