2DF Gabion Wall Fence Panel & Profiled Posts C

INTRODUCTION

Crafted from a seamlessly formed all-steel curved post and a 2D double horizontal wire welded mesh, this fence boasts a simple yet elegant appearance, offering a dynamic and smooth aesthetic. The integrated design features a post buckle groove connection that eliminates the need for connectors, allowing for easy adaptation to uneven terrain and versatile installation from various angles. The innovative push-type installation ensures quick and hassle-free setup.

FEATURES

Security

Using specialized connectors and anti disassembly bolts to fix the mesh, which has strong anti-theft function; The overall design of the fence has no focal points, providing excellent anti climbing performance;

Durability

FAAC imported drive system, stable performance, optional speed of 9-30m/min; Remote control can achieve convenient remote door opening over a long distance; Delay automatic shutdown and activation; On, off, run display; When there is a power outage, the electric mode can be switched to manual mode to ensure smooth opening and closing of the door.

Practicality

Adapt to uneven terrain and installation from different angles;

Easy to master, simple and fast, and cost-effective.

COMPONENTS & PARAMETERS

Mesh

Name	Tubing
Zinc Coating:	80/120 g/m²
Coating Thickness:	≥100 µm
Wall Thickness:	2.5/3.0 mm

Item	Parameter
Width(mm)	6000/8000/10000/12000/15000
Height(mm)	1600/1800/2000
Bottom Beam Size(mm)	200 * 280 * 5.0
Bottom beam material	Q355 manganese steel
Drive system	FAAC844ER
Control mode	Remote control/line control

Post

Connection

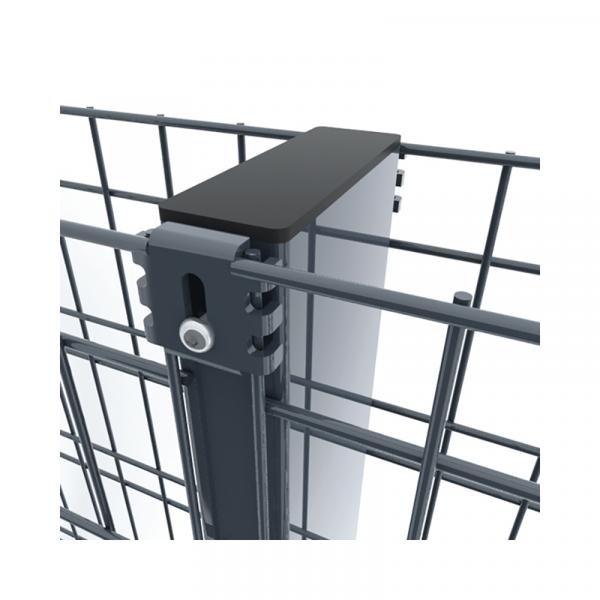

The integrated design of the column is connected to the mesh with dedicated cards and anti-theft bolts, which has strong anti-theft function.

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
