2DF High Security Mesh Fence System B & Profiled Posts C

INTRODUCTION

Crafted from a seamlessly formed all-steel square post and a 2D wire welded mesh, this fence the super modular steel security fence solution, providing higher strength protection than the best chain link fencing.

– Easy installation, upgrade, repair and maintenance

– Seamless security integration

– Modular design

– Anti-cut and anti-climb

Notice:This product is the sample for your referernce, we are the fence maufacturer and we can make it based on the showcase and your specific requirements.The actual

products are way more better than this primitive design.

FEATURES

Security

Easy installation, upgrade, repair and maintenance

– Seamless security integration

– Modular design

– Anti-cut and anti-climb

Durability

The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;

Practicality

Adapt to uneven terrain and installation from different angles;

Easy to master, simple and fast, and cost-effective.

COMPONENTS & PARAMETERS

Mesh

Name	Parameter
Mesh Height(mm)	1000-2430
Mesh Width(mm)	2500/3000
Wire Diameter(mm)	Ø4.5/Ø5.0/Ø6.0
Vertical Wire Spacing(mm)	50/55/65
Horizontal wire spacing (mm)	50/55/65
Material	Q195/Q235
Zn coating (g/㎡)	80-120
Color	RAL Color Series

Name	Parameter
Size(mm)	60 * 60/80 * 80
Thickness(mm)	1.5/2.0
Height(mm)	1000-3000
Material	Q235
Cap	Steel cap

Post

Connection

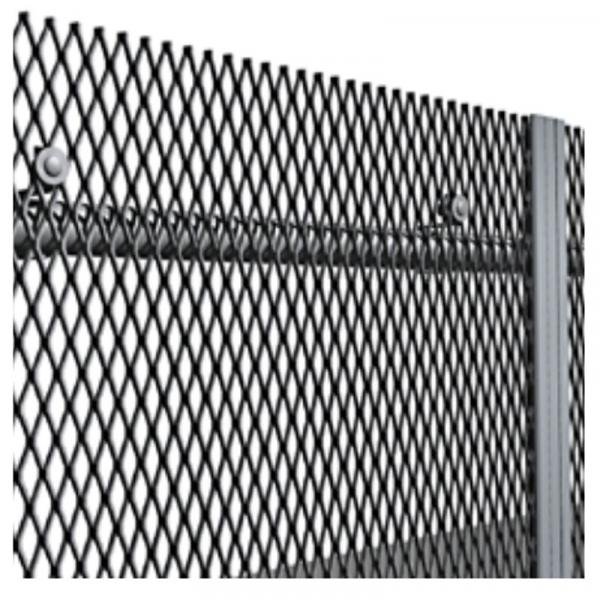

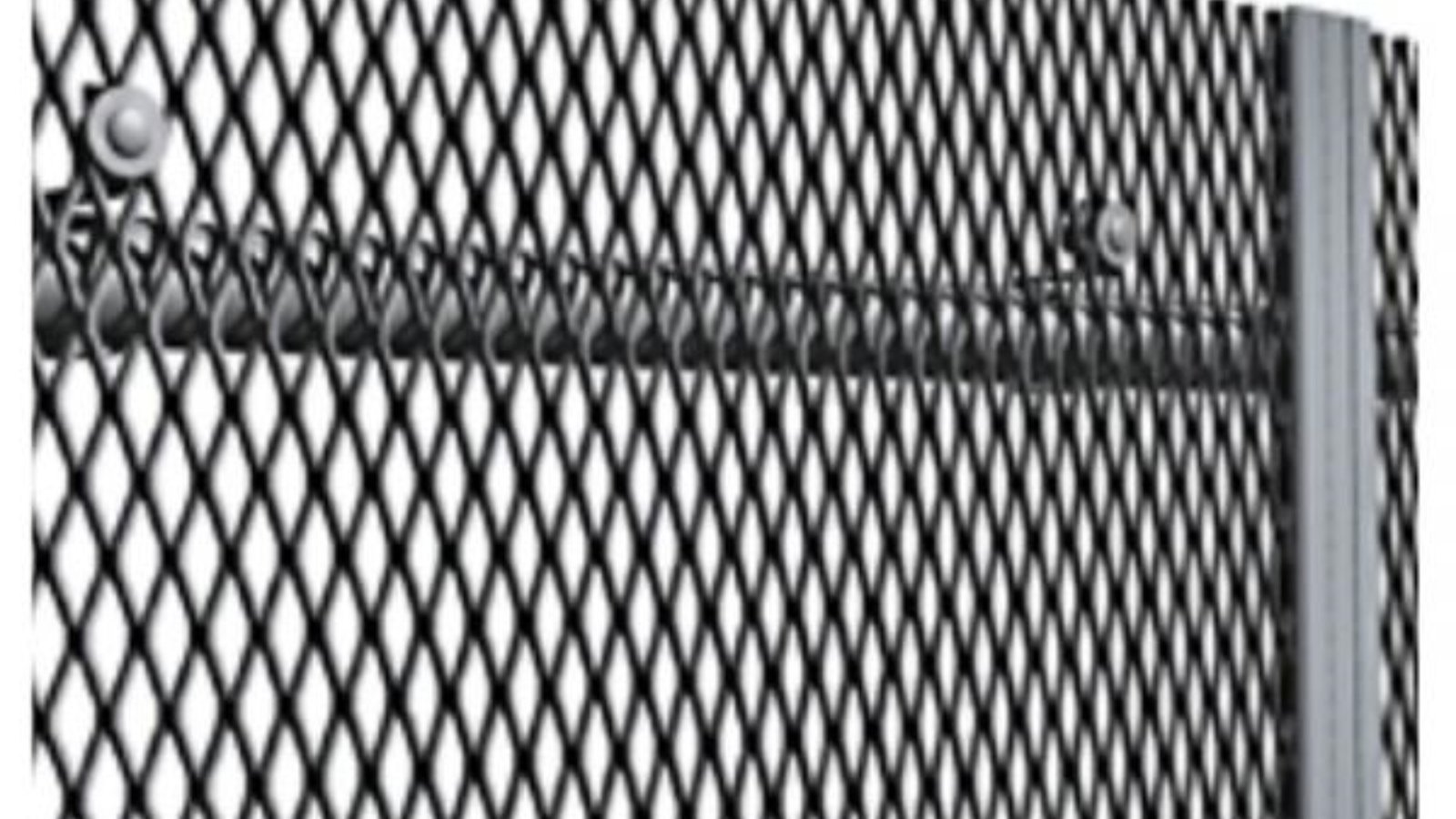

The integrated design of the column is connected to the mesh with dedicated cards and anti-theft bolts, which has strong anti-theft function.

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
