Small wire mesh size clear view security fence with two coating options

Small Mesh Size ClearView 3DG Metal Fence Mesh & Profiled Posts B

INTRODUCTION

Constructed with square steel posts and equipped with dedicated anti-theft connectors, the 3DF ClearView Wire Mesh Fence features 3D single wire welded mesh. Its design is simple yet elegant, offering reliable and aesthetic medium-security through ChinaFenceCompany’s trusted quality welded wire mesh with small apertures of 12.7 mm,the dynamic and smooth lines that can adapt to uneven terrain and accommodate installations from different angles. The fence utilizes a push-type installation method, ensuring convenience and efficiency.This fencing product of ours is the leading aesthetic security system in South Africa.This small mesh size 3DG clear view fence is an affordable solution with optimized coatings for low(50mm-to-medium 25mm) corrosive and inland environments. Clearview (standard) offers superior corrosive protection in high-to-extreme corrosive environments.

FEATURES

Safety

Using specialized connectors and anti disassembly bolts to fix the mesh, which has strong anti-theft function; The small mesh size design of the fence has no focal points, providing excellent anti climbing performance;

durable-icon.svg

Durability

The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;

Practicalily

Adapt to uneven terrain and installation from different angles;fence delivers a clear view of your surroundings.Two coating versions to suit different corrosive environments. Easy to master, simple and fast, and cost-effective system alternative to palisade.

COMPONENTS & PARAMETERS

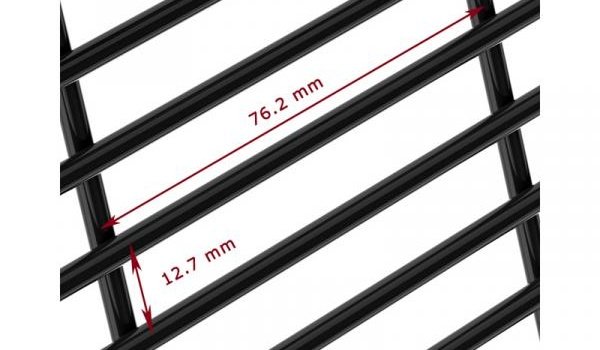

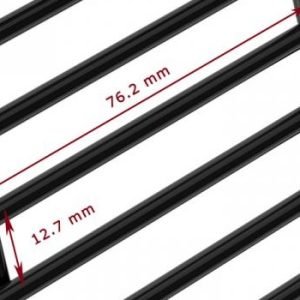

Mesh Size

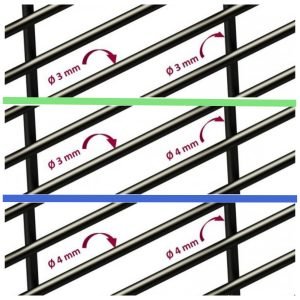

Wire Diameters

NameParameter
Mesh Height(mm)1000-2430
Mesh Width(mm)2500/3000
Wire Diameter(mm)Ø3.0+Ø3.0/Ø3.0+Ø4.0/Ø4.0+Ø4.0
Vertical Wire Spacing(mm)76.2
Horizontal wire spacing (mm)12.7
Material Q195/Q235
Zn coating(g/㎡)80-120
ColorRAL Color Series
NameParameter
Size(mm)70 * 100
Thickness(mm)1.0/1.2/1.5
MaterialQ235/DC51D
Height1000-3000
MaterialQ235/DC51D
Zn coating80-120 g/㎡
ColorRAL Color Series
CoverABS

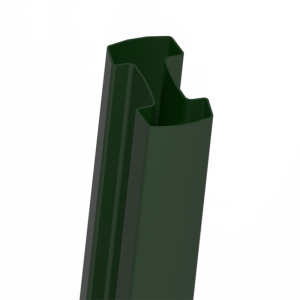

Post

Connection

The post buckle groove structure is connected with a mesh, without external connectors, that has strong anti disassembly function.

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

 The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

Surface Technology

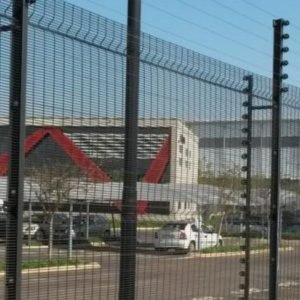

PROJECTS OF APPLICATION SCENARIOS
