ClearView 25 Fencing System

ClearView 3DG 25 Metal Fence Mesh & Profiled Posts B

INTRODUCTION

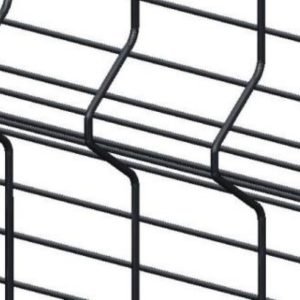

Constructed with square steel posts and equipped with dedicated anti-theft connectors, the 3DF ClearView Wire Mesh Fence features 3D single wire welded mesh. Its design is simple yet elegant, offering reliable and aesthetic medium-security through ChinaFenceCompany’s trusted quality welded wire mesh with larger apertures of 25 mm,the dynamic and smooth lines that can adapt to uneven terrain and accommodate installations from different angles. The fence utilizes a push-type installation method, ensuring convenience and efficiency.

FEATURES

Safety

Using specialized connectors and anti disassembly bolts to fix the mesh, which has strong anti-theft function; The overall design of the fence has no focal points, providing excellent anti climbing performance;

Durability

The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;

Practicalily

Adapt to uneven terrain and installation from different angles;

Easy to master, simple and fast, and cost-effective system alternative to palisade.

COMPONENTS & PARAMETERS

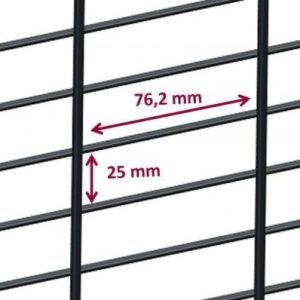

Mesh Size

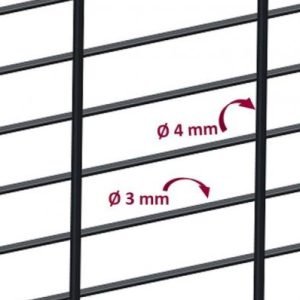

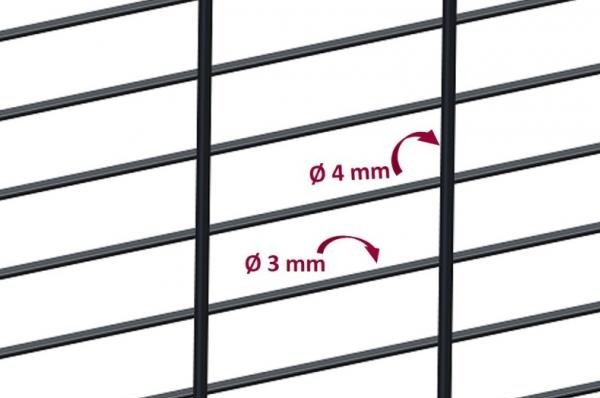

Wire Diameter

Name	Parameter
Mesh Height(mm)	1000-2430
Mesh Width(mm)	2500/3000
Wire Diameter(mm)	Ø4.0+Ø3.0/Ø6.0+Ø5.0
Vertical Wire Spacing(mm)	76.2
Horizontal wire spacing (mm)	25
Material	Q195/Q235
Zn coating(g/㎡)	80-120
Color	RAL Color Series

Name	Parameter
Size(mm)	70 * 100
Thickness(mm)	1.0/1.2/1.5
Material	Q235/DC51D
Height	1000-3000
Material	Q235/DC51D
Zn coating	80-120 g/㎡
Color	RAL Color Series
Cover	ABS

Post

Connection

The post buckle groove structure is connected with a mesh, without external connectors, that has strong anti disassembly function.

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
