4D 358 High Security Alternative Cross Wire Fence Panel & Profiled Posts C
INTRODUCTION
This alternative cross wire fence system is composed of cold-formed square shaped posts and 358 welded mesh, offering exceptional resistance to riots, cutting, and disassembly. 4D engineered for high-security installations, proven to delay forced entry and proven to be over 750% more rigid than traditional flat panels.The integrated design of the posts connects securely to the mesh through dedicated interlocks and anti-theft bolts, ensuring adaptability to uneven terrain and versatile installation angles. The product supports flexible installation methods, including push-type assembly or sequential installation of posts followed by the mesh, providing a convenient and efficient setup process.
FEATURES
Security
The reinforced post is connected to the mesh through anti disassembly connectors, which has strong anti-theft function;extreme rigidity;
358 high-density mesh, anti riot, anti cutting, and anti disassembly;adequate delay time;
The overall design of the fence has no focal points, providing excellent anti climbing performance;
Durability
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;excellent visibility and 10 year warranty;
Superior Corrosion Resistance.
Practicality
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS

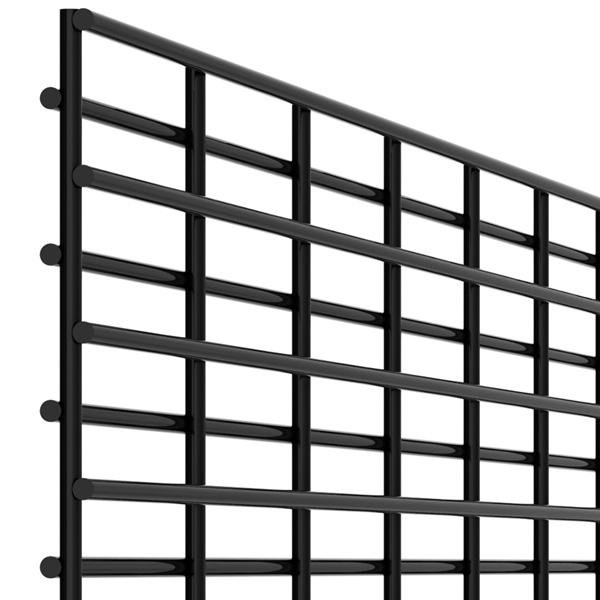

Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 2500-5200 |
| Mesh Width(mm) | 2500-3000 |
| Wire Diameter(mm) | Ø4.0+Ø6.0 |
| Vertical Wire Spacing(mm) | 76.5/100 |
| Horizontal wire spacing (mm) | 12.5 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 50 * 75 |
| Thickness(mm) | 1.5/2.0 |
| Height(mm) | 1000-3000 |
| Material | Q235 |
| Cap | die cast aluminum integrated structure |
Post

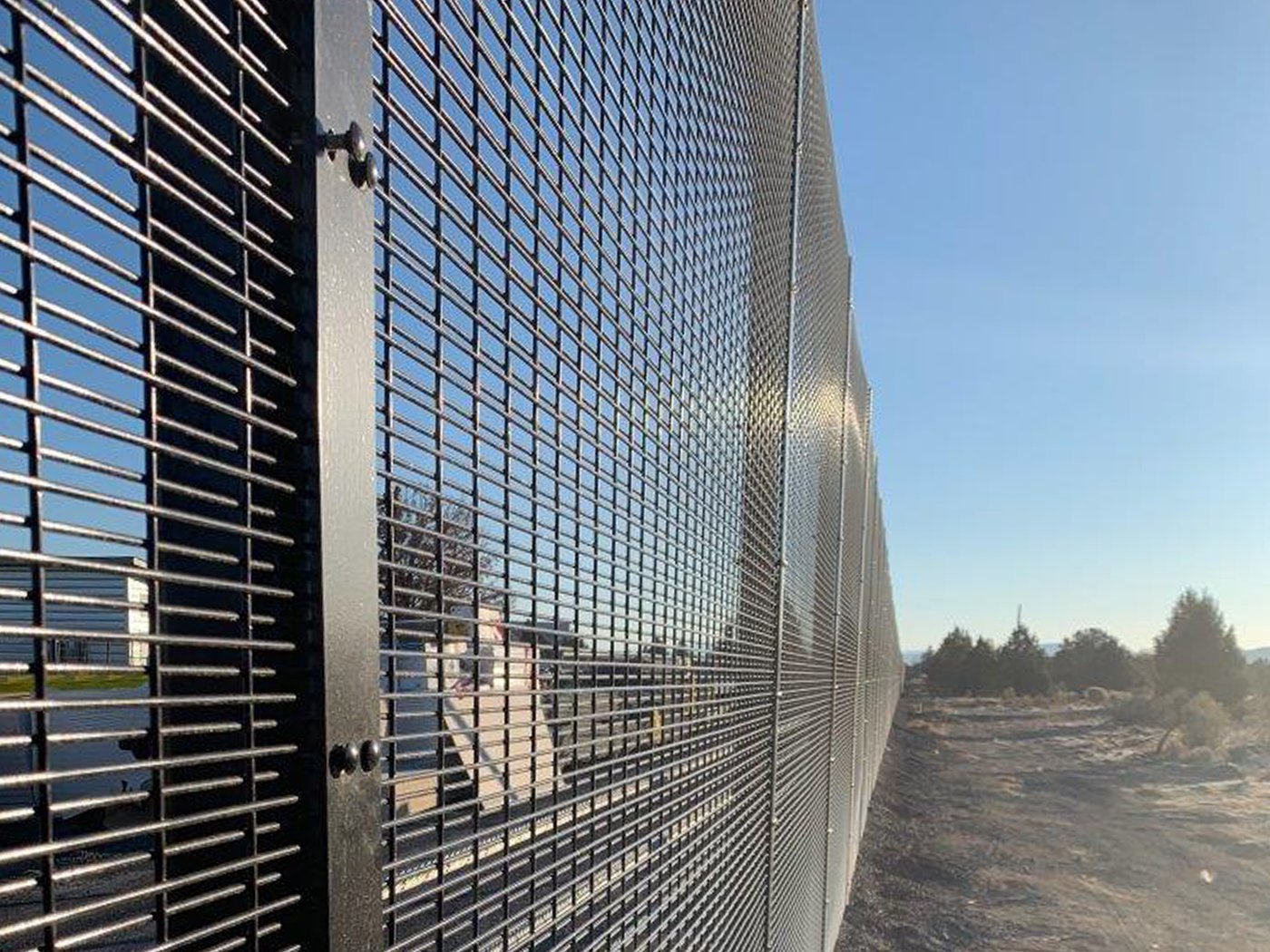

Connection
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Surface Technology

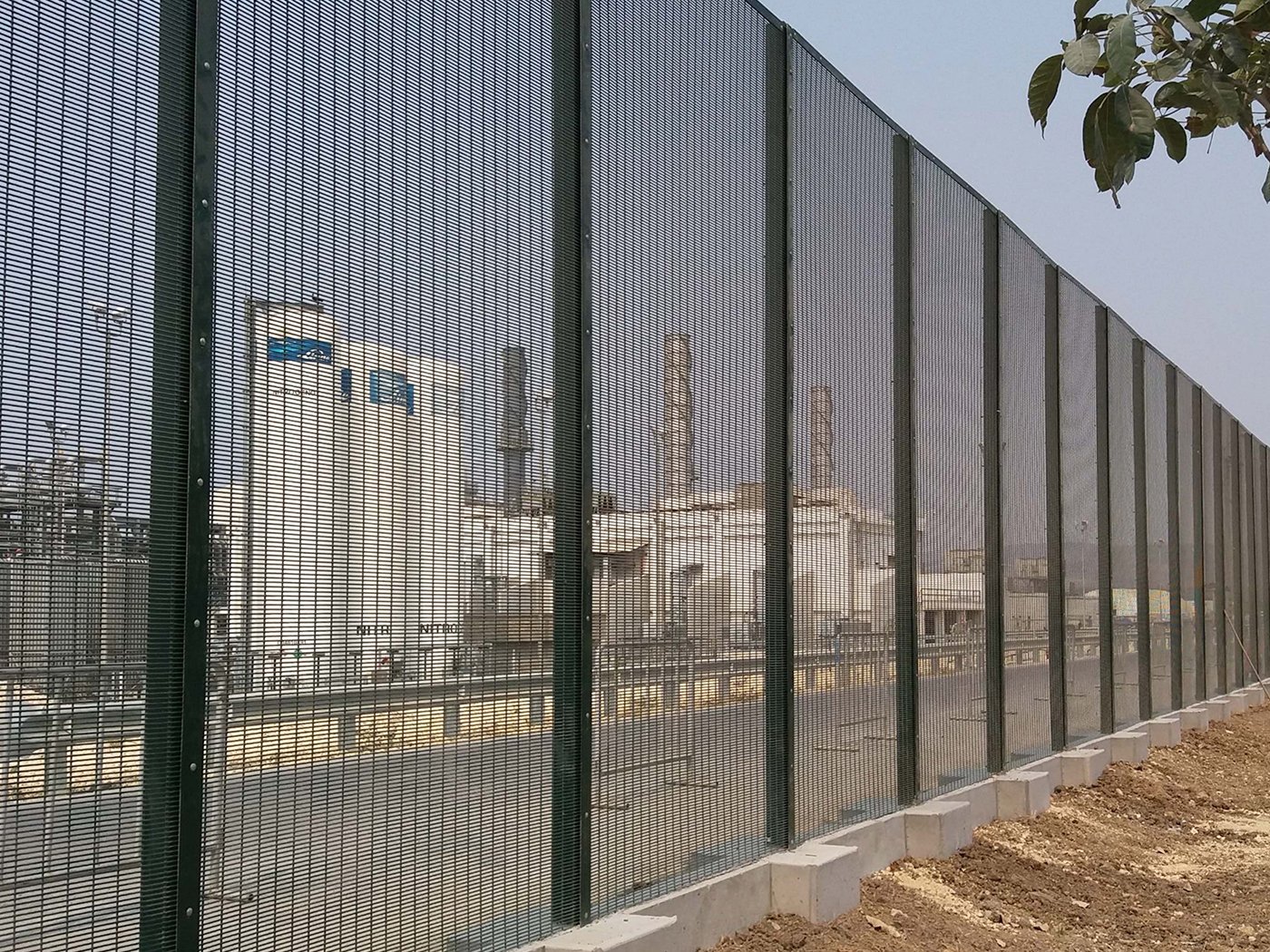

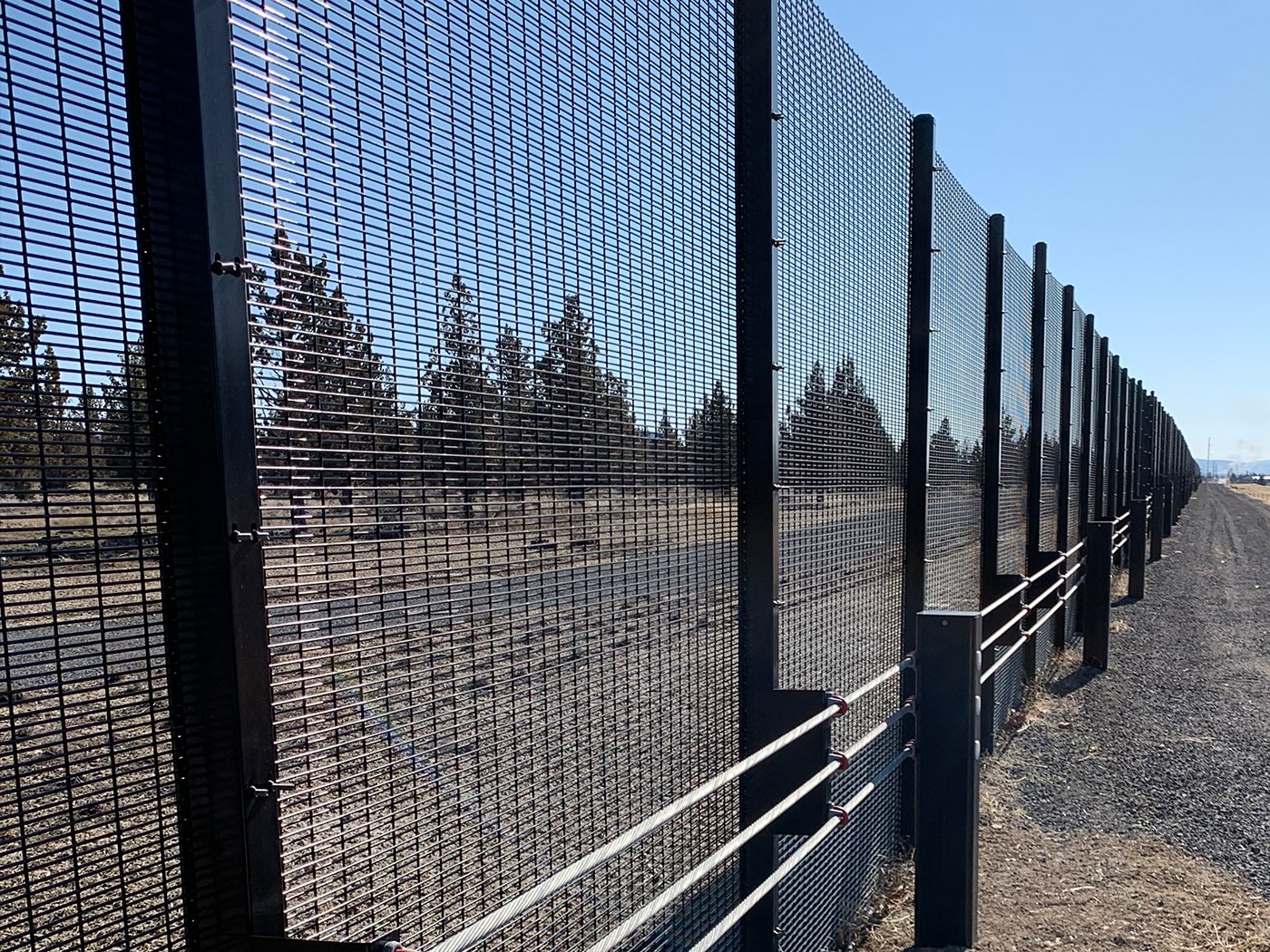

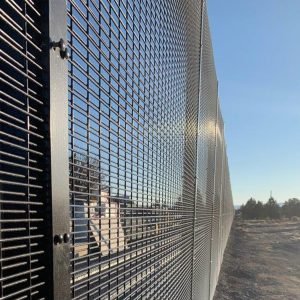

PROJECTS OF APPLICATION SCENARIOS
