3D 358 wire mesh fence with added welded strips profiled posts B
INTRODUCTION
Crafted from cold-formed I-shaped posts and 3D 358 wire welded mesh with added welded strips, the fence is using a reinforced wire mesh panel designed to deliver longer resistance against breach attempts through added wire mesh strips welded on across the panel. The posts, designed with an integrated structure, connect to the mesh using dedicated interlocks and anti-theft bolts. This system accommodates uneven terrain and allows for installation from various angles. The product supports both push-type installation and a two-step process where the posts are installed first, followed by the mesh, ensuring convenience and efficiency.
FEATURES
Secure
The reinforced post is connected to the mesh through anti disassembly connectors, which has strong anti-theft function;
3D 358 high-density mesh, anti riot, anti cutting, and anti disassembly;
The overall design of the fence has no focal points, providing excellent anti climbing performance and extra protection and reinforcement.
Durable
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;
Practical
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS

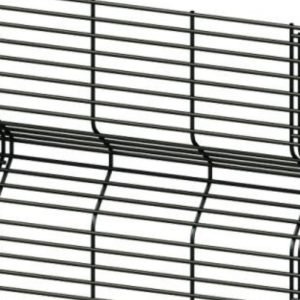

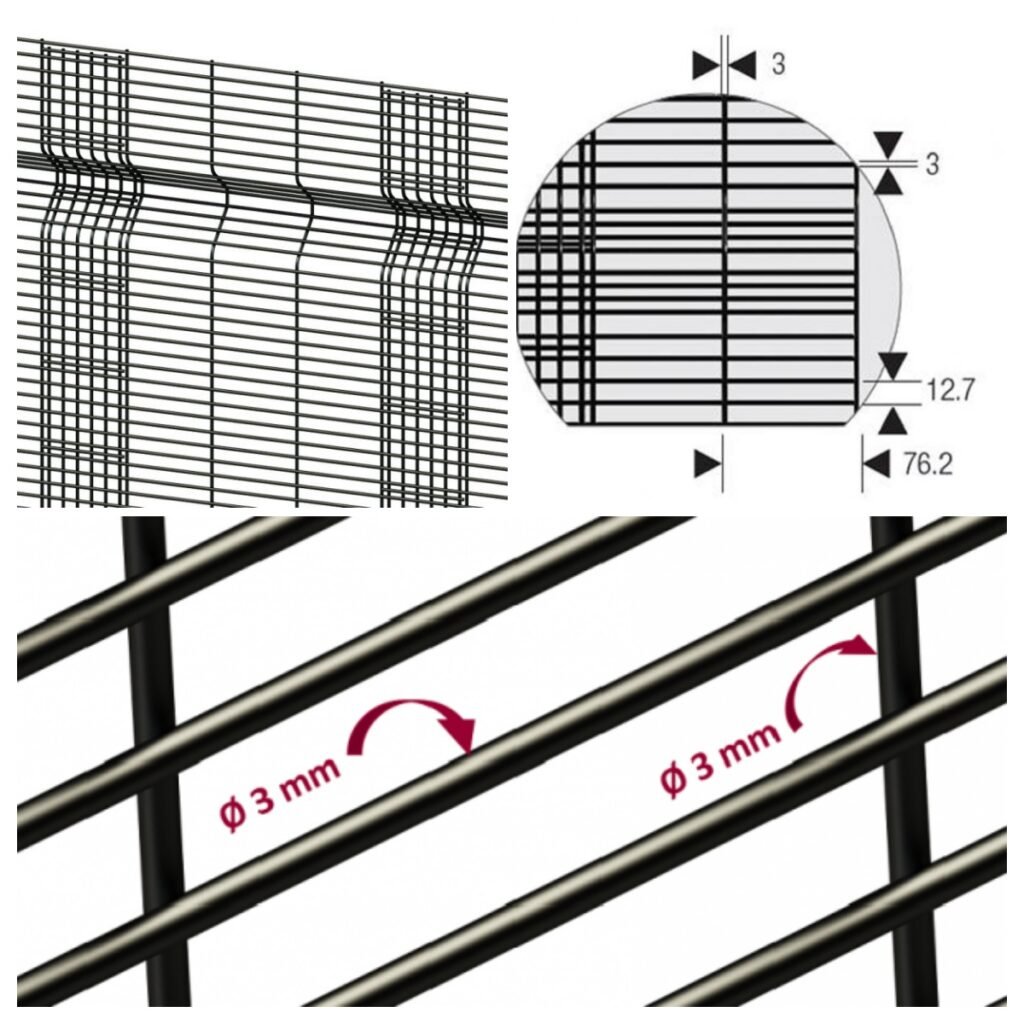

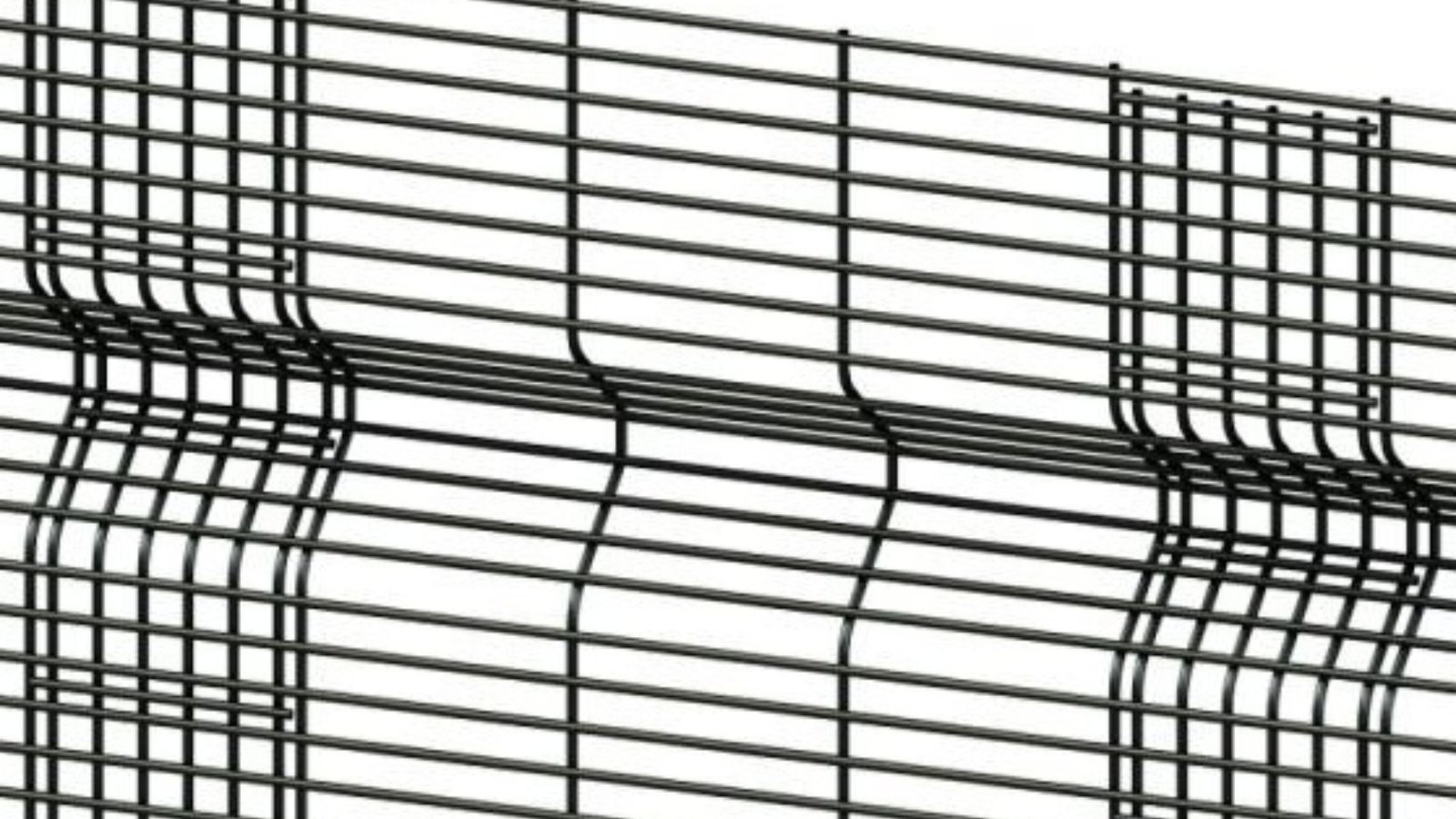

Mesh panel&size
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2000/2500 |

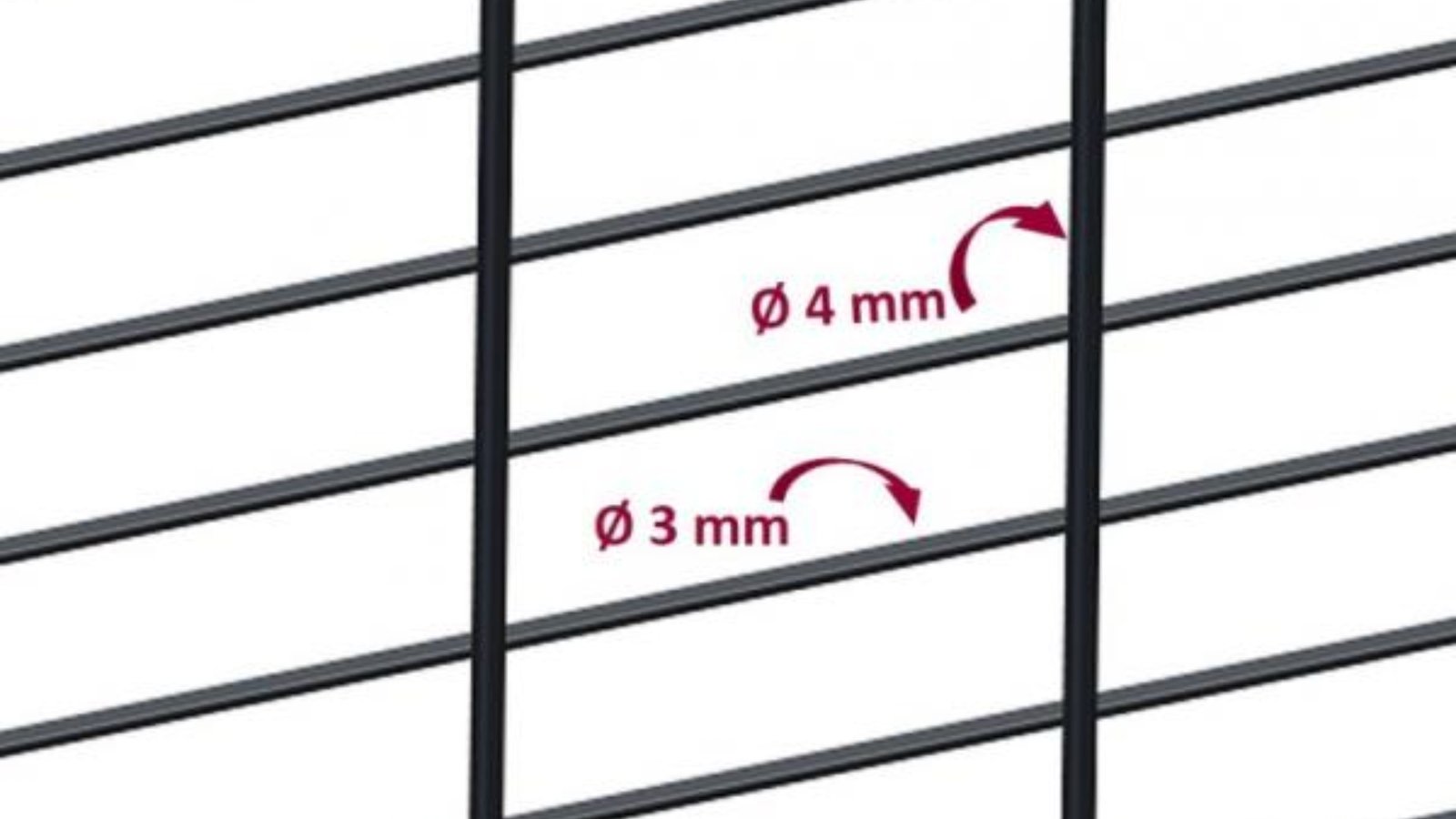

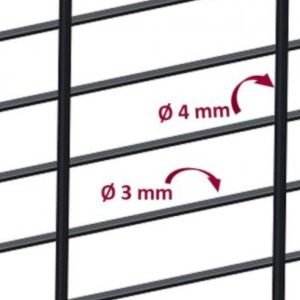

| Wire Diameter(mm) | Ø3.0*Ø3.0/Ø4.0*Ø4.0 |
| Vertical Wire Spacing(mm) | 76.2/100 |
| Horizontal wire spacing (mm) | 12.7 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 70 * 100 |
| Thickness(mm) | 1.0/1.2/1.5 |
| Material | Q235/DC51D |
| Height | 500-3000 |
| Zn coating | 80-120 g/㎡ |
| Color | RAL Color Series |
| Cover | ABS |
Post
Ref.Connection
The integrated design of the column is connected to the mesh with dedicated cards and anti-theft bolts, which has strong anti-theft function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Surface Technology

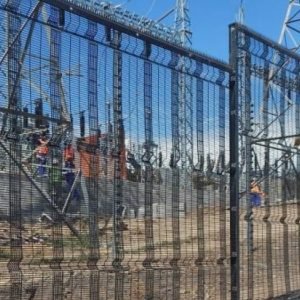

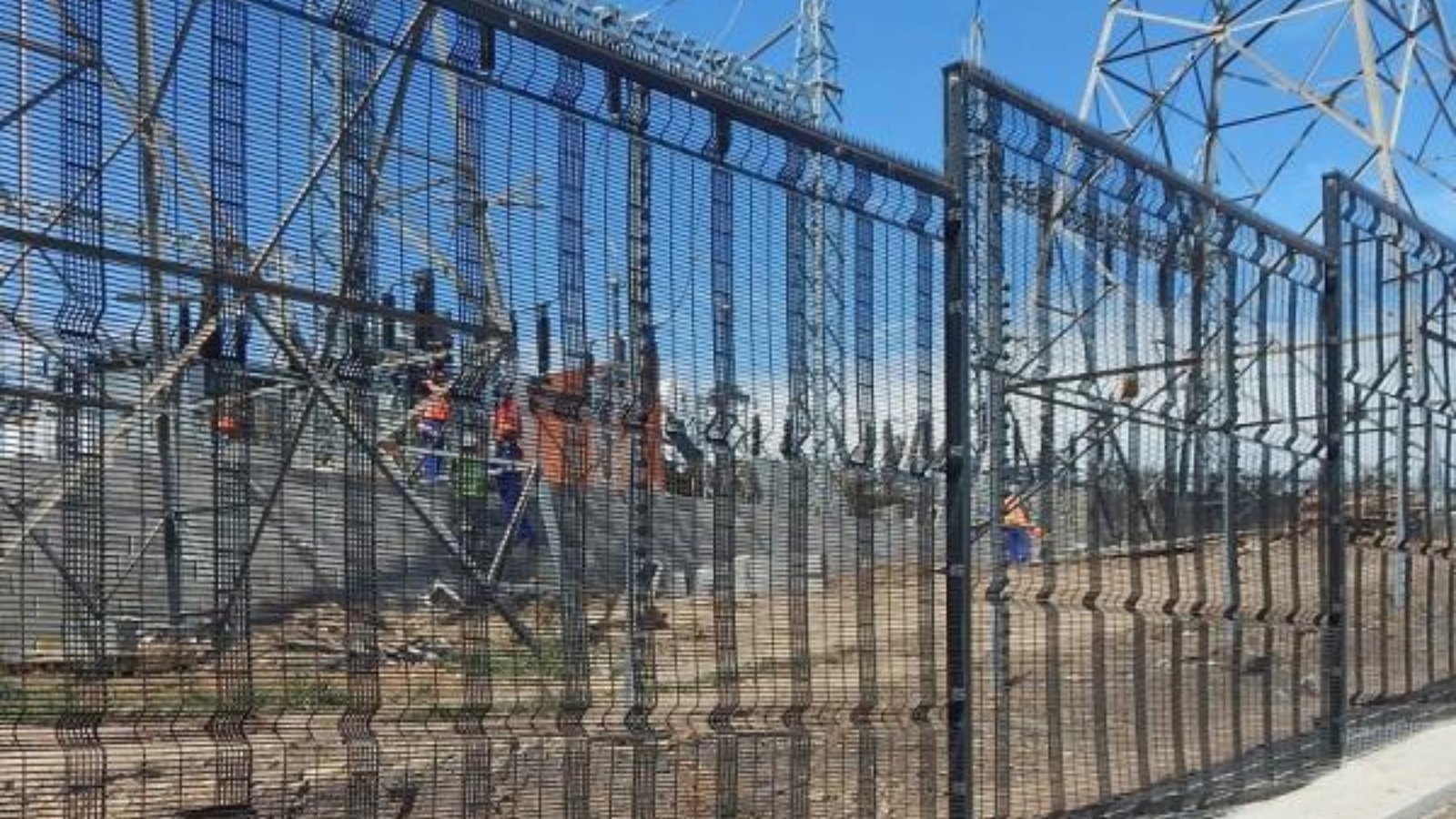

PROJECTS OF APPLICATION SCENARIOS
