Workshop Equipment Fence

Workshop Equipment Fence

INTRODUCTION

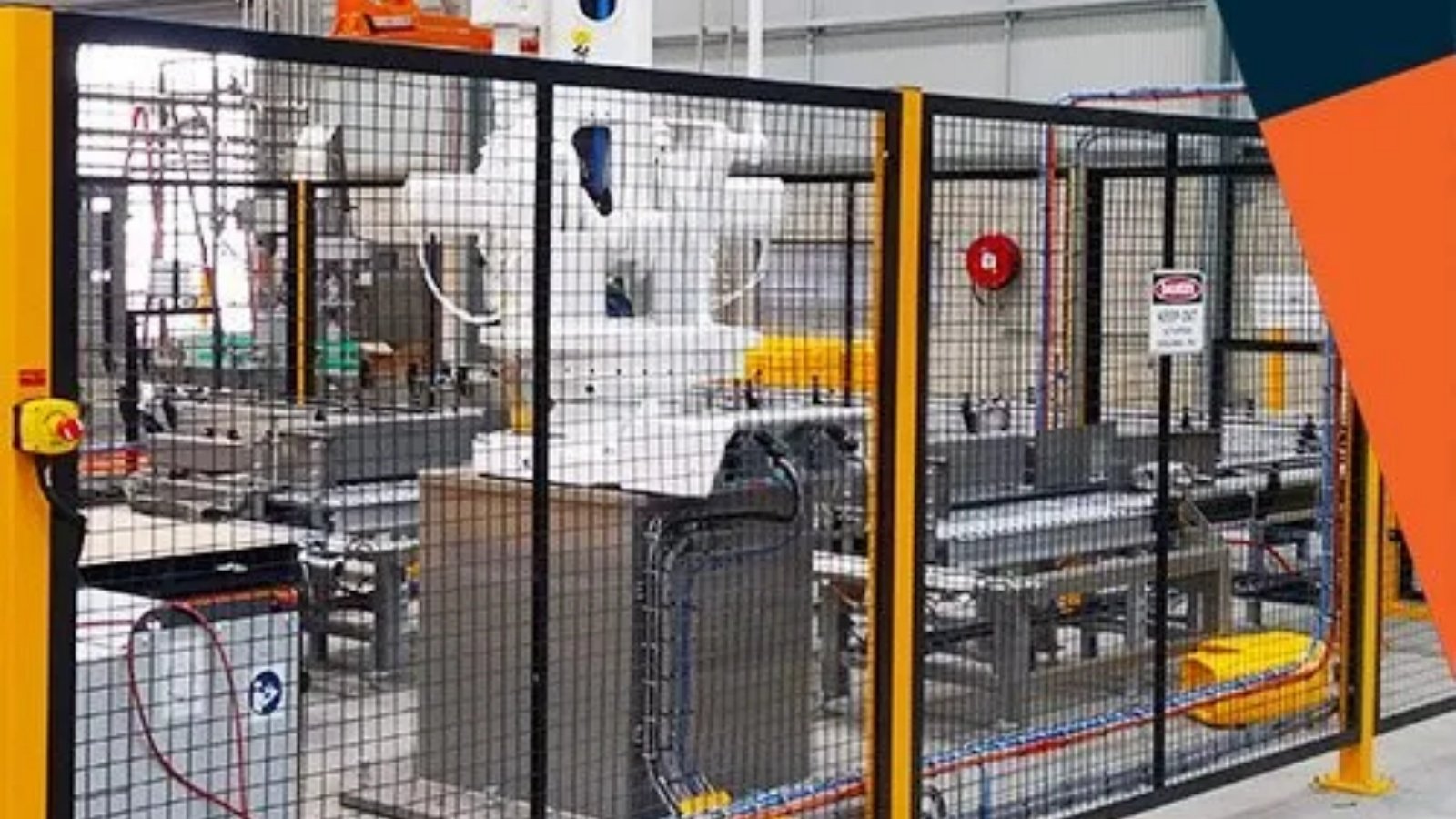

The Equipment Safety Fence is specifically designed for industrial equipment protection, aiming to safeguard personnel, machinery, and production lines. The fence system is composed of H-shaped steel posts and panels, offering a lightweight yet robust structure that can be flexibly assembled into customized safety solutions. Its uniquely engineered connectors ensure a secure and precise connection between panels and posts, delivering superior safety performance, easy installation, and convenient maintenance. Optional intelligent configurations further enhance the system’s safety level to the highest standard.

FEATURES

Aesthectic

Sleek structural design with an elegant and attractive appearance, providing a uniform visual effect from both inside and outside the fence.  Surface coating treatment offers a wide range of color options.

Durability

With advanced surface treatments such as galvanization and electrostatic powder coating, the product offers corrosion resistance, rust prevention, and anti-aging properties, ensuring a service life of ≥10 years.  The exceptional design of the connection structure and the high-quality selection of accessories ensure outstanding anti-corrosion performance.

Practicality

Modular design allows for DIY installation, adapting to various application scenarios.  Easy to learn, simple and quick to install, effectively reducing costs.

COMPONENTS & PARAMETERS

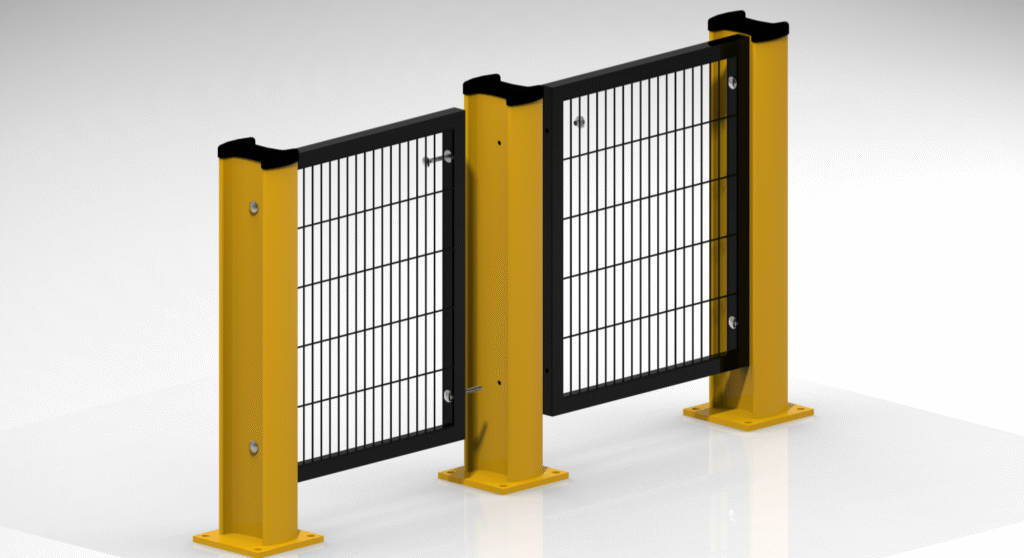

Workshop Fence

Standard colorPost:Yellow (RAL 1023) Panel:Black (RAL9005)
Height(mm)1600/2200
Bottom gap(mm)150
Panel height(mm)1450/2050
Panel width(mm)800/1000/1200/1500
Mesh size(mm)20*100/12.5*100/25*100
Frame size(mm)20*20*1.5
Wire diameter(mm)Ø3.0+Ø3.0

Panel

COMPONENTS & PARAMETERS

Post

Post size(mm)“H“ shaped 44*70*1.5
Post height(mm)1600/2220
Fixing methodAssembly-type flange

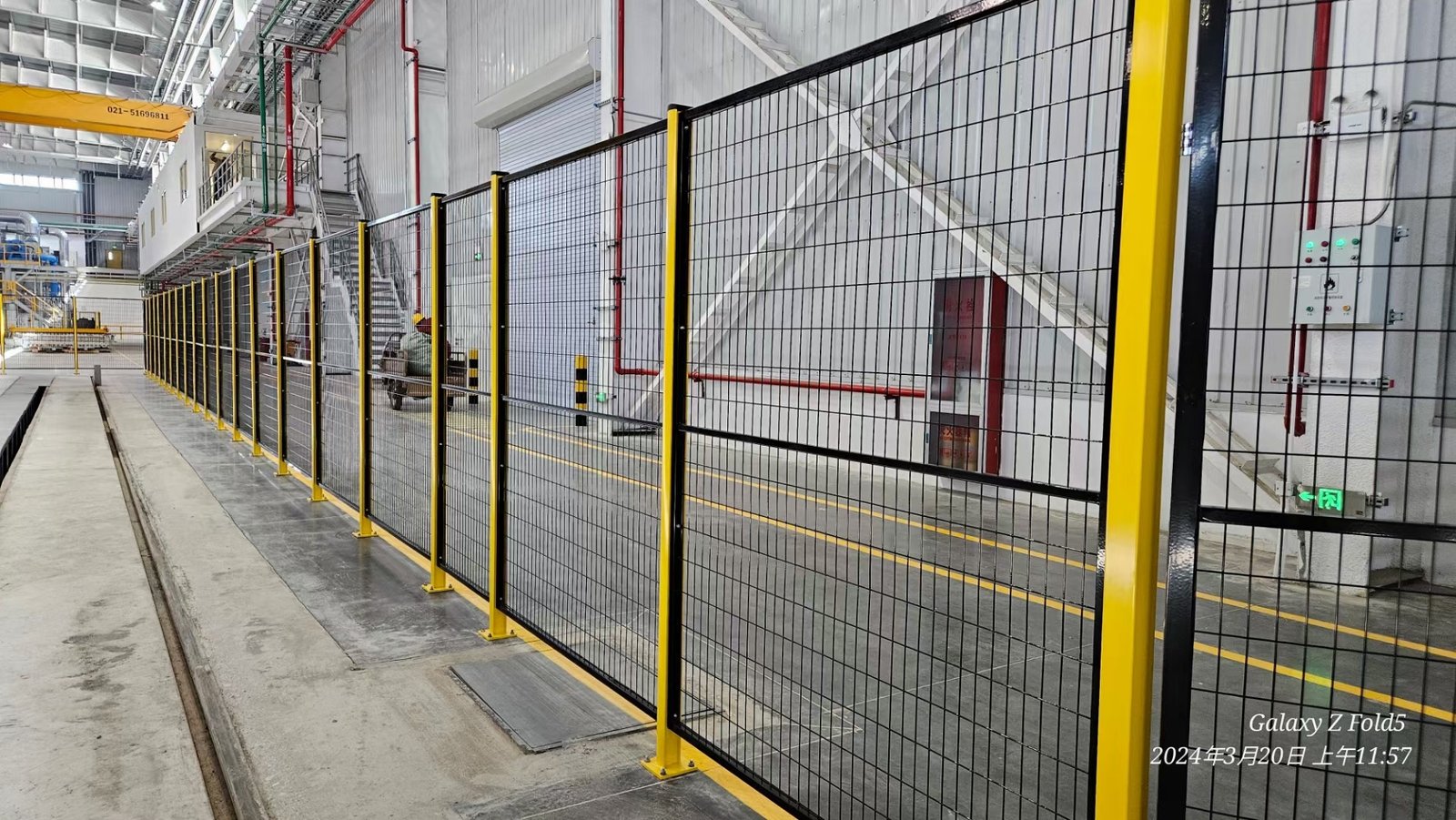

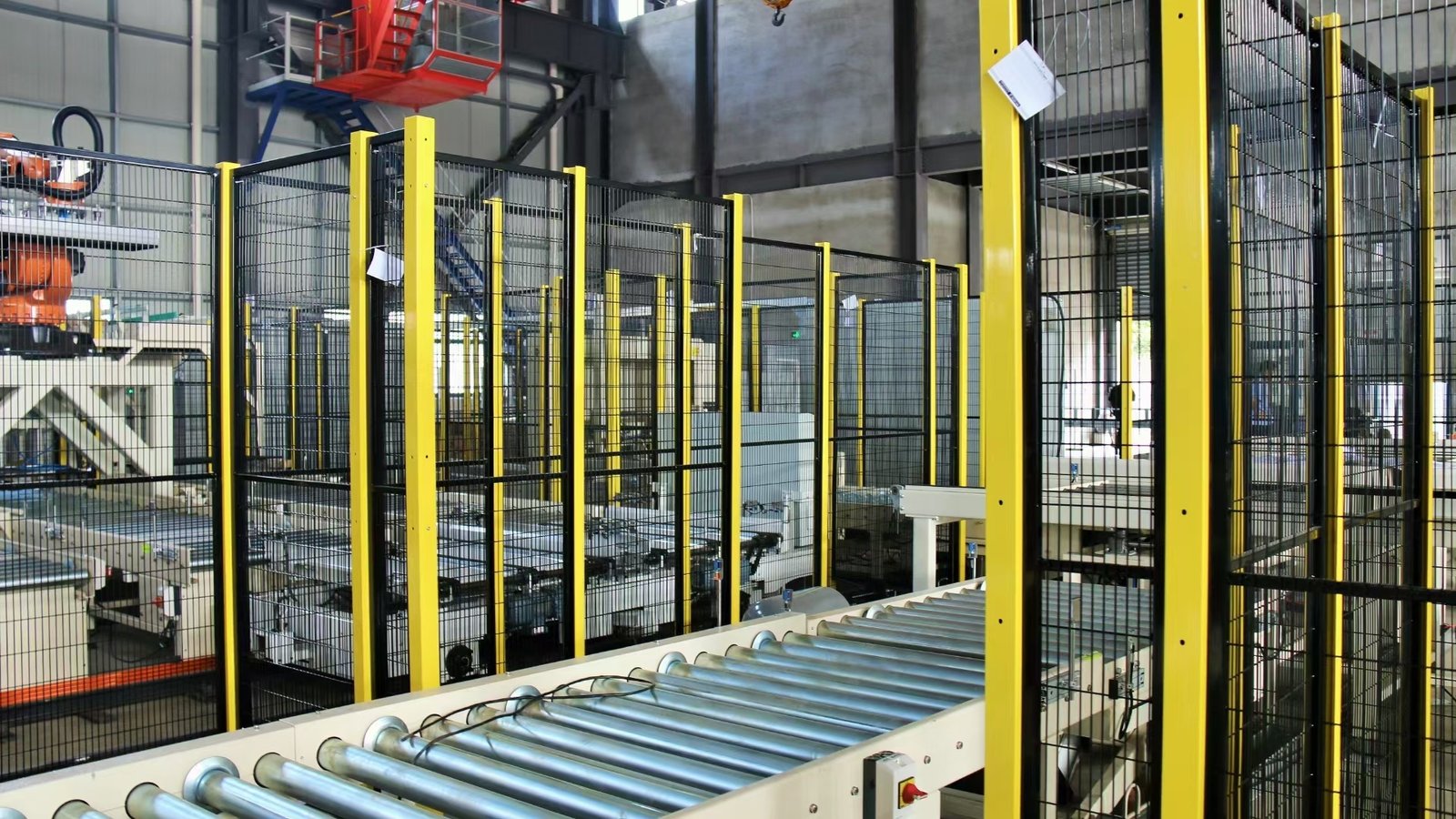

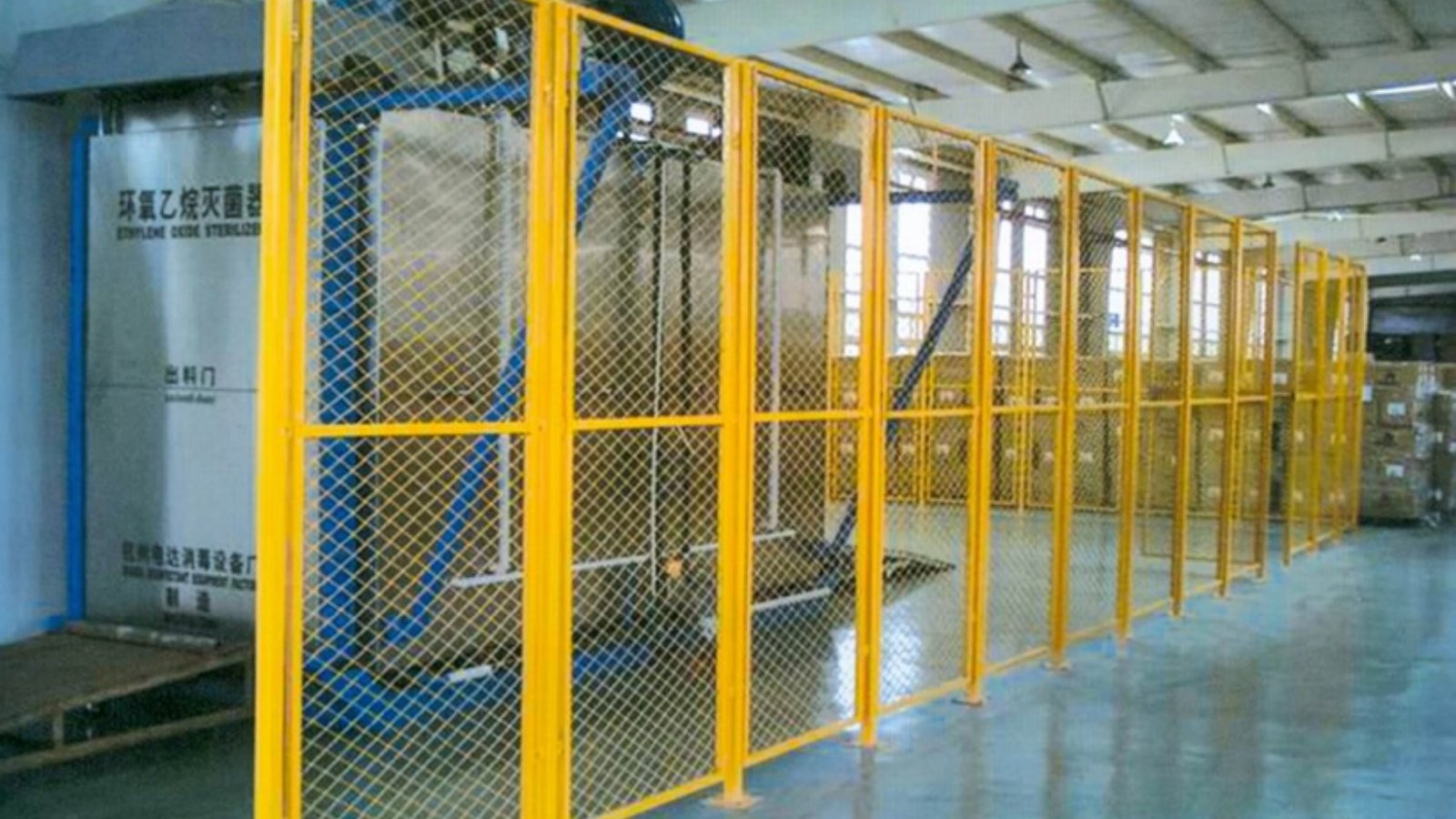

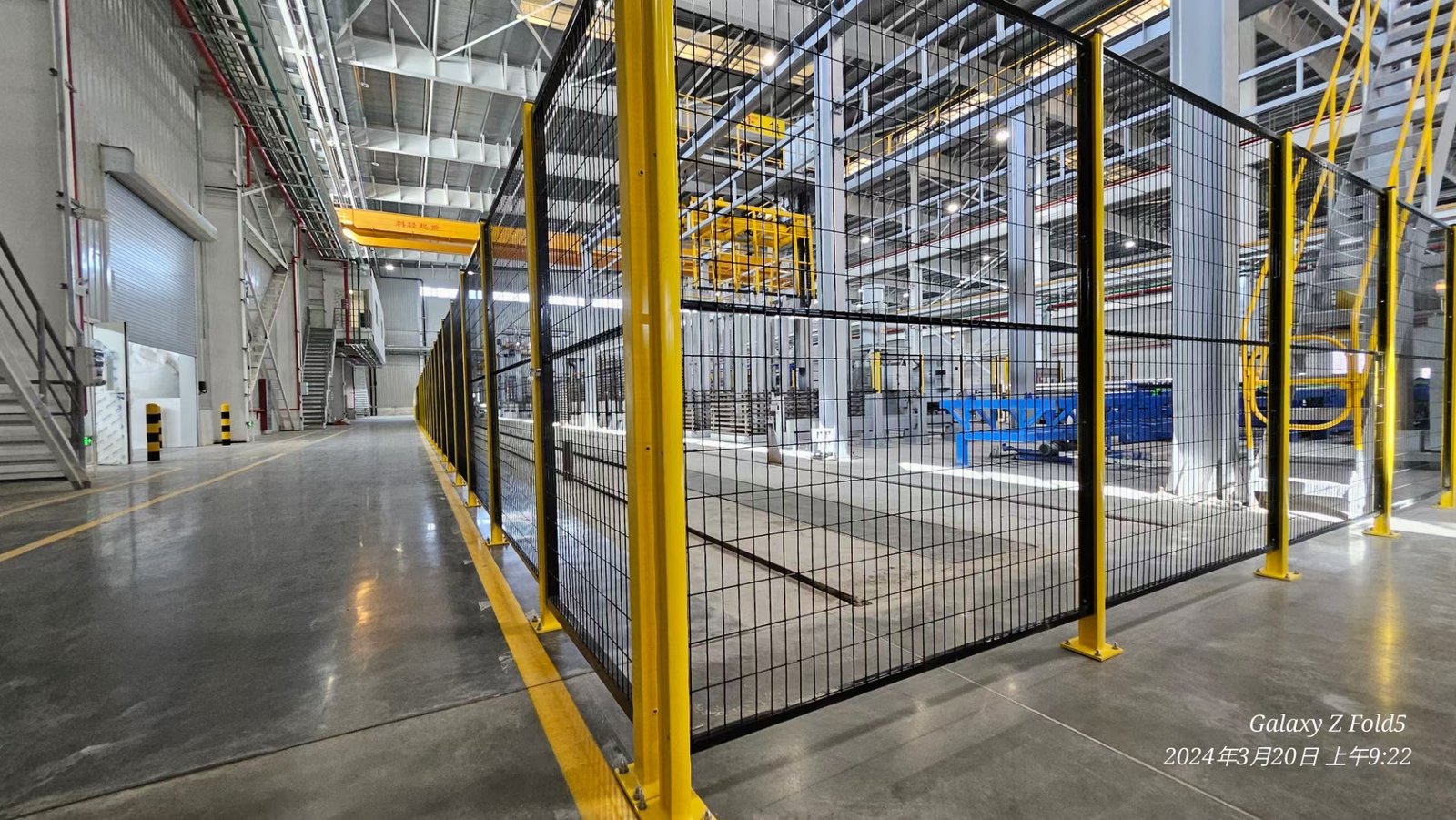

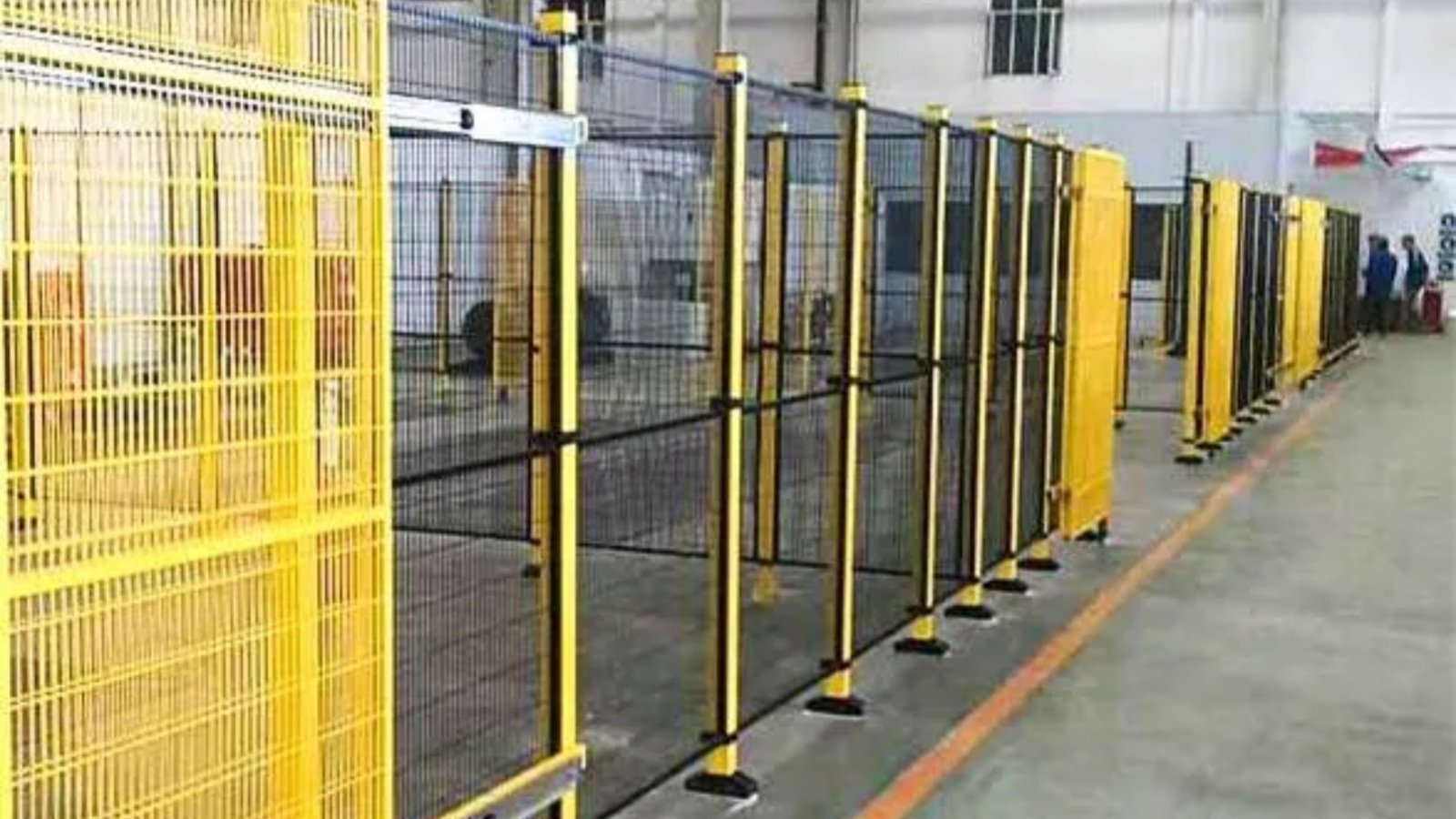

PROJECTS OF APPLICATION SCENARIOS
