PDN&TP-3D Metal Fence Mesh & Profiled Posts A
INTRODUCTION
Composed of a one-time formed seamless, all steel curved post and a 3D single horizontal wire welded mesh, the appearance is simple and elegant, with a dynamic and smooth flow. The post buckle groove connecting mesh with integrated design does not require any connectors; which can adapt to uneven terrain and installation from different angles; the product adopts a push type installation, which is convenient and fast.
FEATURES
Secure
The post buckle groove structure is connected with a mesh, which has strong anti disassembly function;
The overall design of the fence has no focal points, providing excellent anti climbing performance;
Durable
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray of anti-corrosion coating technology ensures the extraordinary service life of the product;
Practical
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS

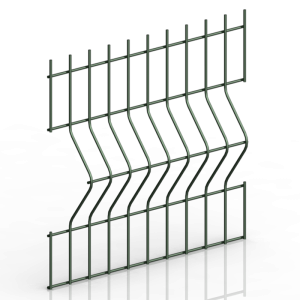

Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2500/3000 |
| Wire Diameter(mm) | Ć5.0+Ć4.5+Ć5.0/Ć6.0+Ć5.0+Ć6.0/Ć8.0+Ć6.0+Ć8.0 |
| Vertical Wire Spacing(mm) | 50/55/65 |
| Horizontal wire spacing (mm) | 200 |
| Material | Q195/Q235 |
| Zn coating(g/ć”) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 70 * 100 |
| Thickness(mm) | 1.0/1.2/1.5 |
| Material | Q235/DC51D |
| Height | 1000-3000 |
| Material | Q235/DC51D |
| Zn coating | 80-120 g/ć” |
| Color | RAL Color Series |
| Cover | ABS |

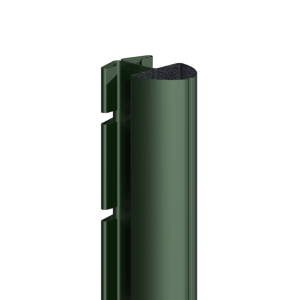

Post

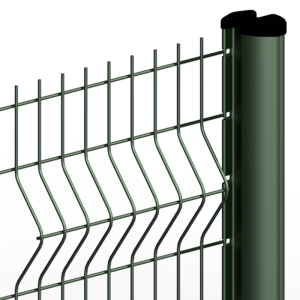

Connection
The post buckle groove structure is connected with a mesh, without external connectors, that has strong anti disassembly function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m Ā², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m Ā².
Surface Technology

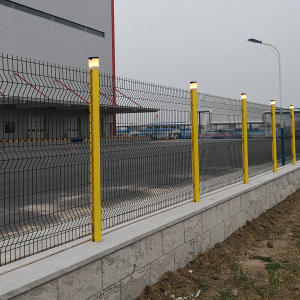

PROJECTS OF APPLICATION SCENARIOS
