Clear View Fence-358G 3D/2D Metal Fence Mesh & Profiled Posts B
FEATURES
Secure
The reinforced post is connected to the mesh through anti disassembly connectors, which has strong anti-theft function;
358 high-density mesh, anti riot, anti cutting, and anti disassembly;
The overall design of the fence has no focal points, providing excellent anti climbing performance;
Durable
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;
Practical
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2000/2500 |
| Wire Diameter(mm) | Ø4.0/Ø4.5 |
| Vertical Wire Spacing(mm) | 76.5/100 |
| Horizontal wire spacing (mm) | 12.5 |
| Material | Q195 |
| Cover | ABS |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 54.4 * 100 |
| Thickness(mm) | 1.5/2.0 |
| Height | 1000-3000 |
| Zn coating | 80-120 g/㎡ |
| Material | Q235 |
| Color | RAL Color Series |
| Cover | ABS |
Post
Connection
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Surface Technology

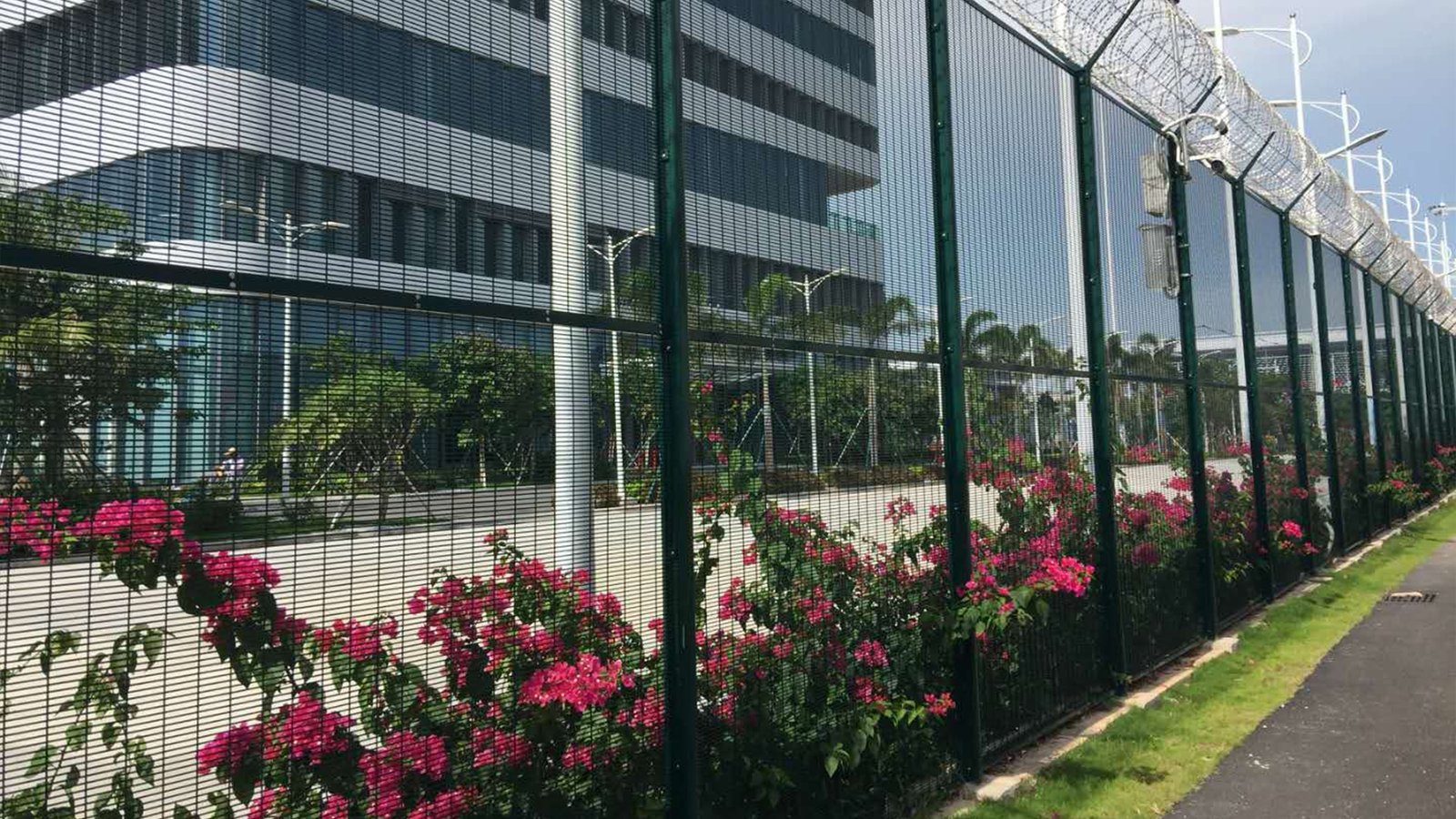

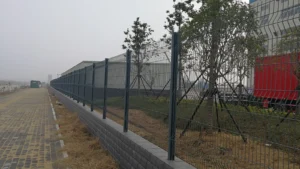

PROJECTS OF APPLICATION SCENARIOS
DOWNLOAD DOCUMENT
 | 358 Metal Fence Mesh & Profiled Posts B-PGN&GP-1510 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-1810 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-2010 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-2500 |
| 358 Metal Fence Mesh & Profiled Posts B-PSN&GP-3010 |
