2DG Metal Fence Mesh & Profiled Posts B
FEATURES
Secure
The visual effects inside and outside the boundary are consistent.The reinforced post is connected to the mesh through anti disassembly connectors, which has strong anti-theft function;
The overall design of the fence has no focal points, providing excellent anti climbing performance;
Durable
The combination of hot-dip galvanized steel and high adhesion electrostatic polyester powder spray anti-corrosion coating technology ensures the extraordinary service life of the product;
Practical
Adapt to uneven terrain and installation from different angles;
Easy to master, simple and fast, and cost-effective.
COMPONENTS & PARAMETERS
Mesh
| Name | Parameter |
|---|---|
| Mesh Height(mm) | 1000-2430 |
| Mesh Width(mm) | 2500/3000 |
| Wire Diameter(mm) | Ø6.0+Ø5.0+Ø6.0/Ø8.0+Ø6.0+Ø8.0 |
| Vertical Wire Spacing(mm) | 50/55/65 |
| Horizontal wire spacing (mm) | 200 |
| Material | Q195 |
| Zn coating (g/㎡) | 80-120 |
| Color | RAL Color Series |
| Name | Parameter |
|---|---|
| Size(mm) | 54.4 * 100 |
| Thickness(mm) | 1.5/2.0 |
| Height | 1000-3000 |
| Material | Q235/DC51D |
| Zn coating | 80-120 g/㎡ |
| Color | RAL Color Series |
| Cover | ABS |
Post
Connection
The integrated design of the post is connected to the mesh with dedicated interlocks and anti-theft bolts, which has strong anti-theft function.
The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;
The entire component is hot-dip galvanized with a zinc coating of 550g/m ².
Surface Technology

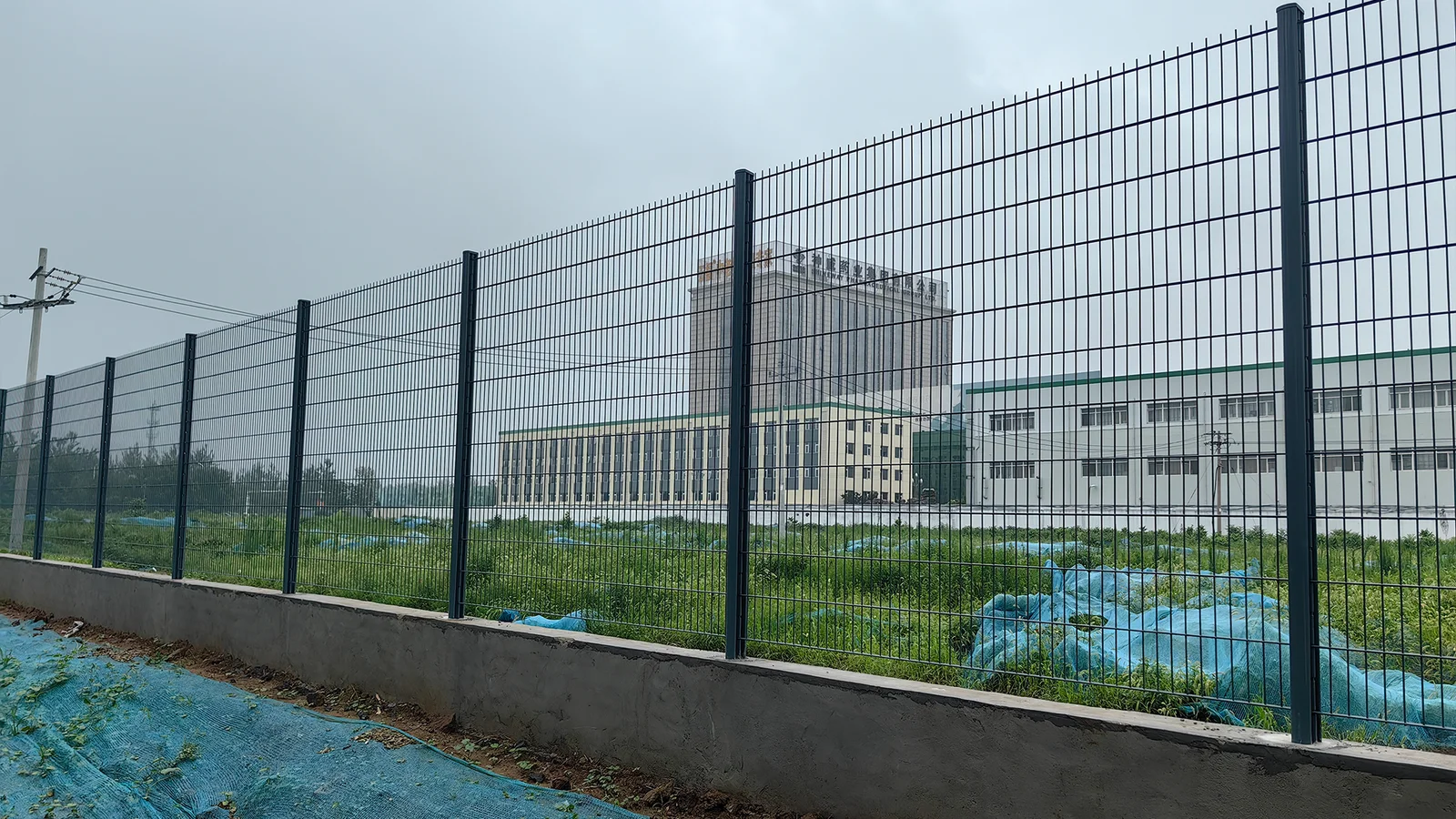

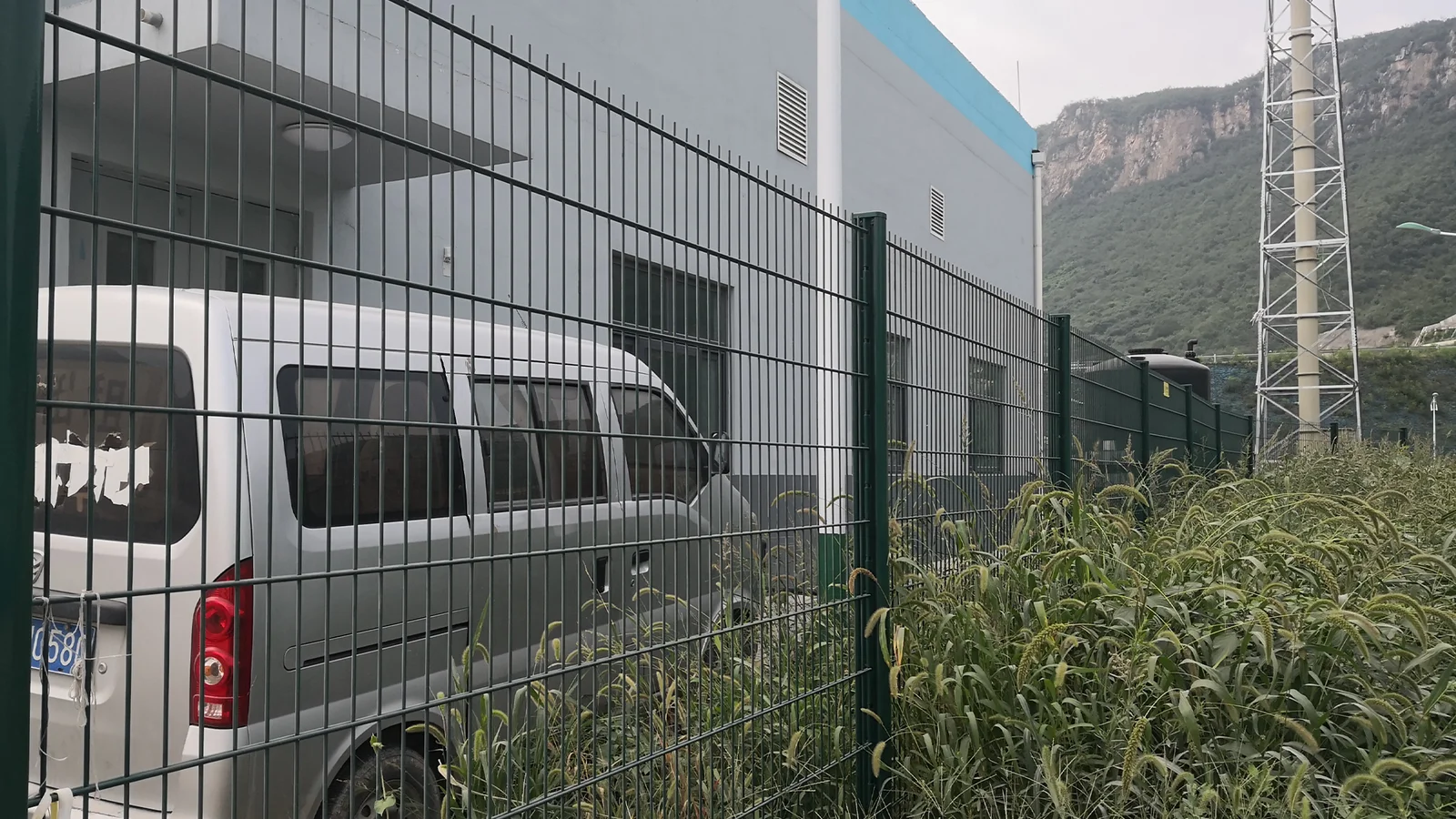

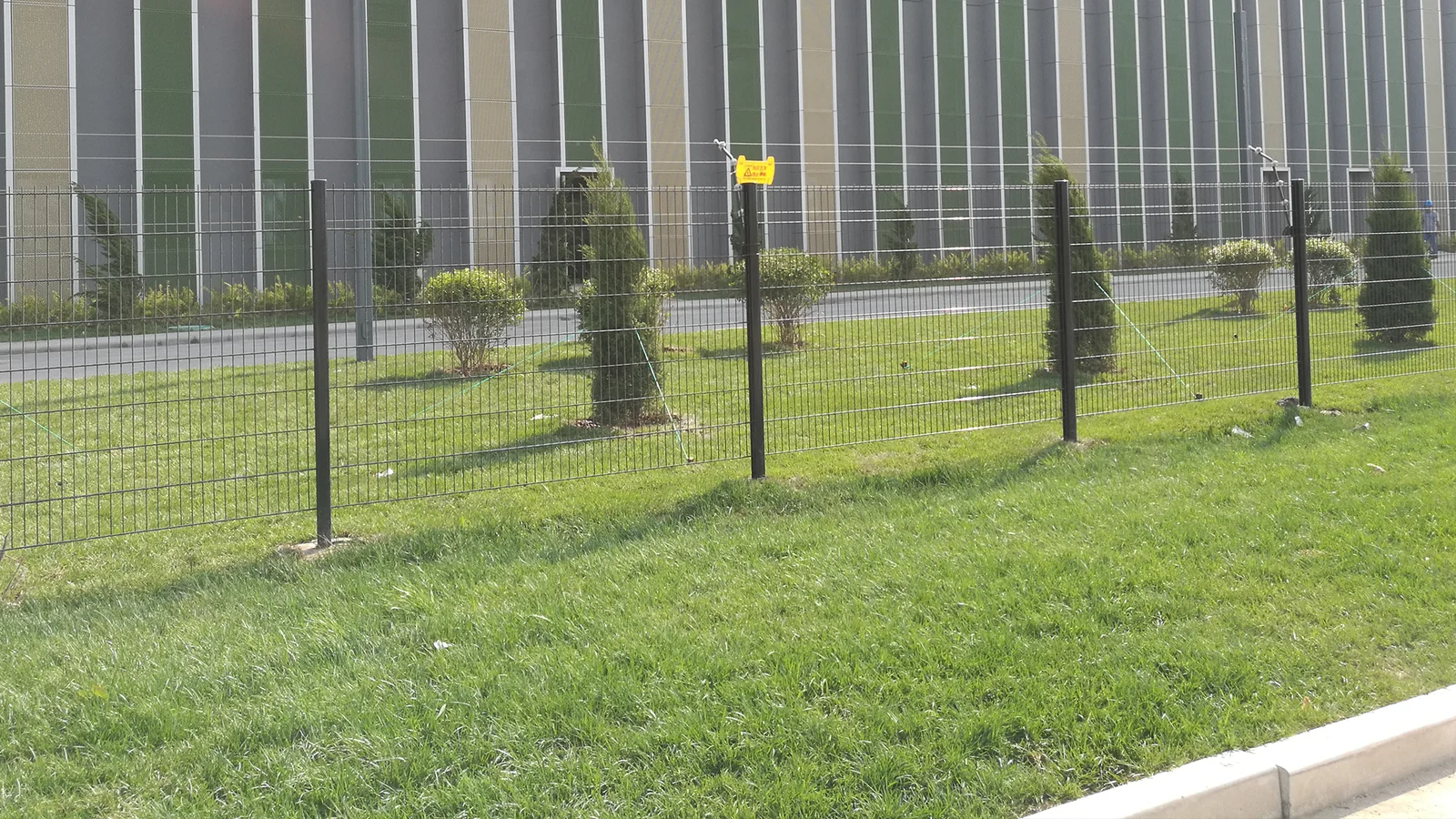

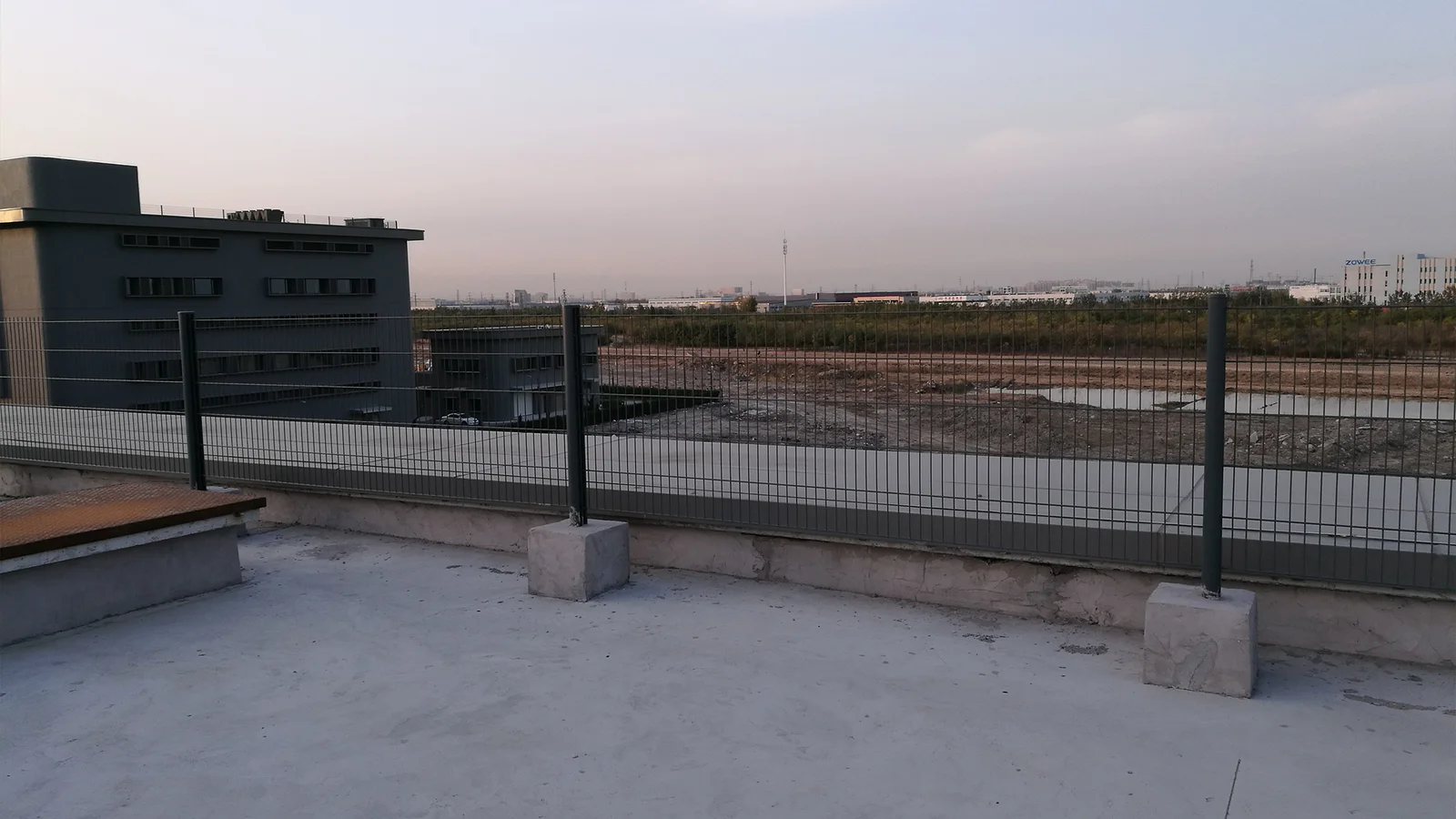

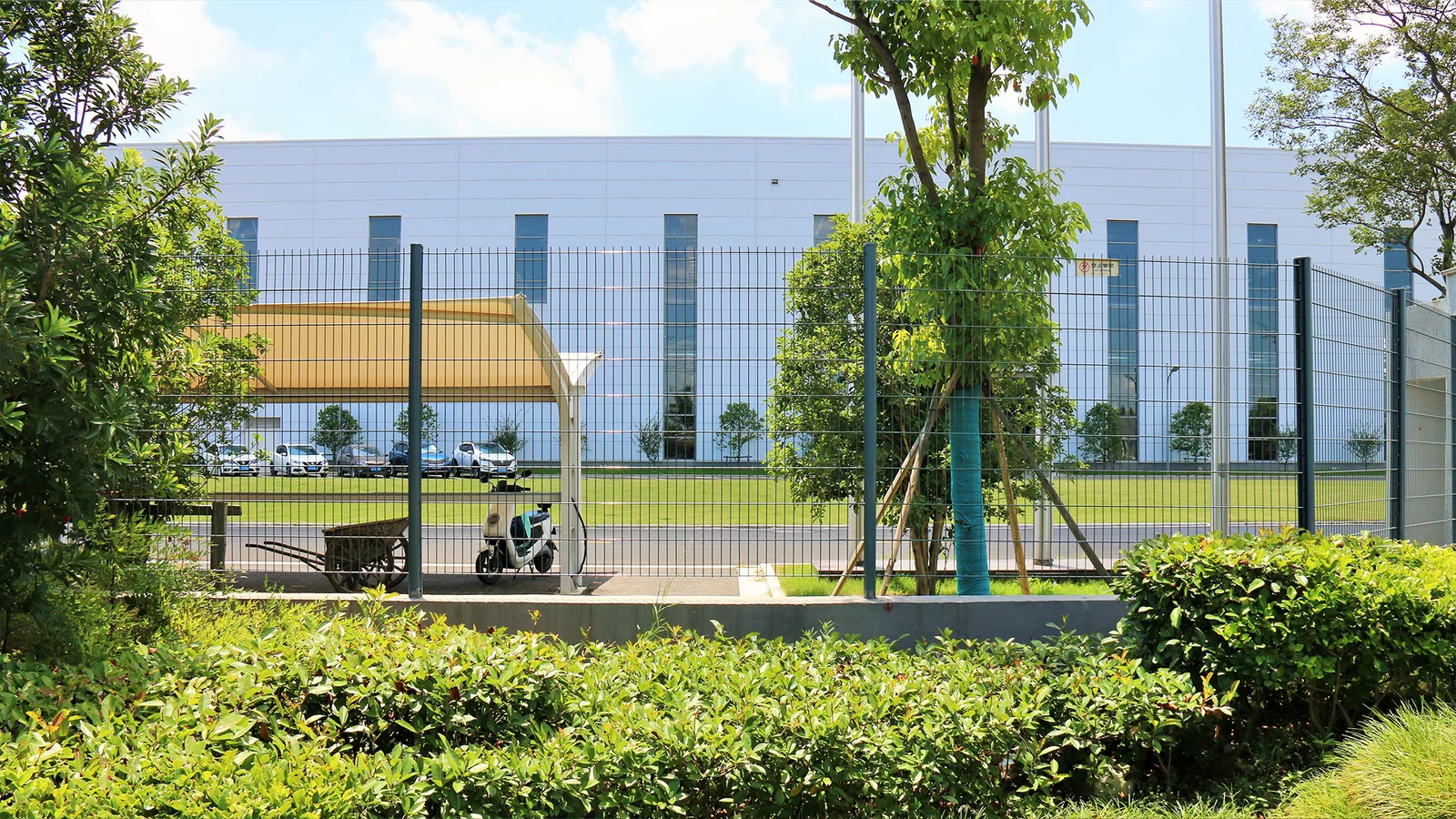

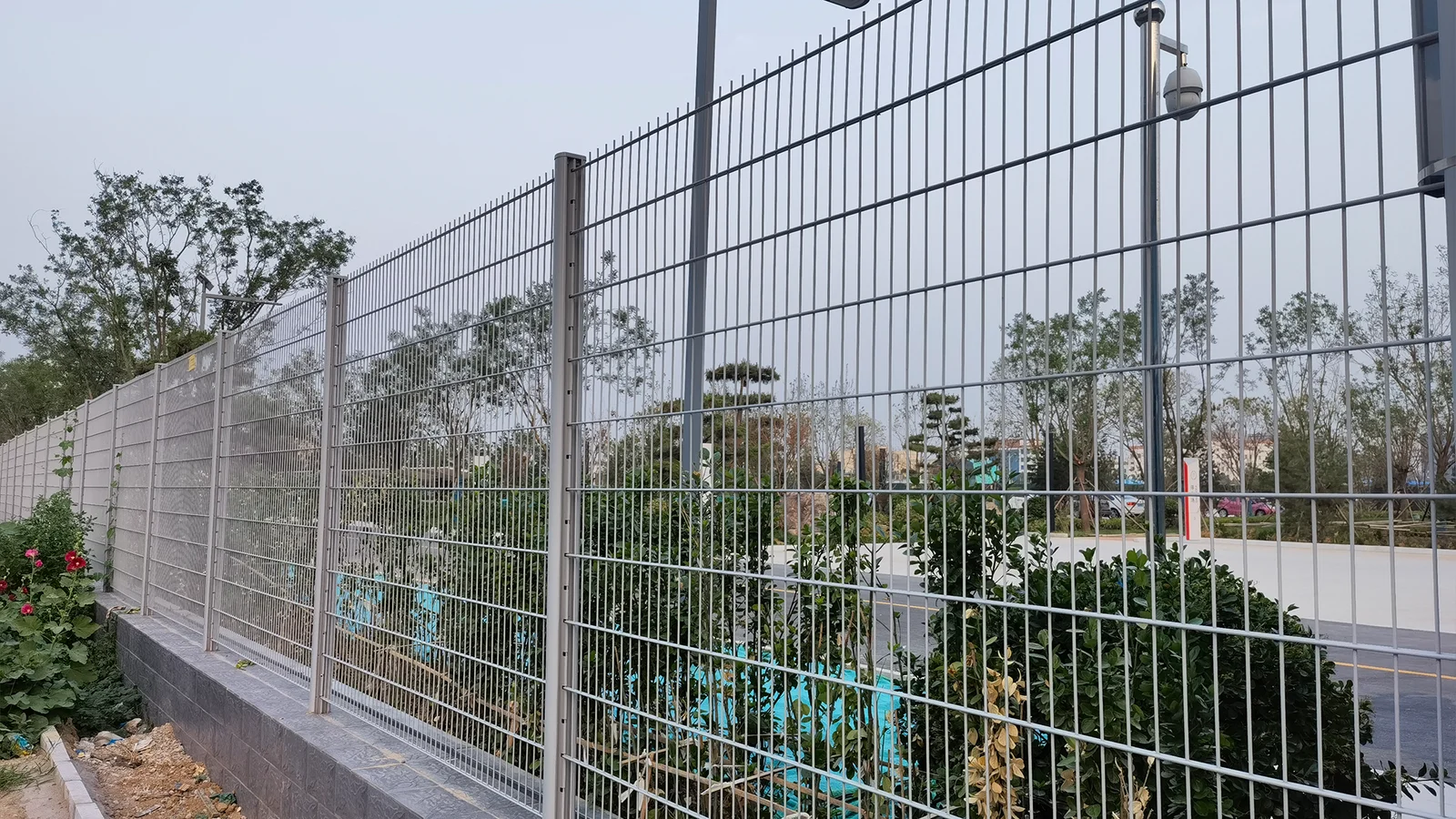

PROJECTS OF APPLICATION SCENARIOS
DOWNLOAD DOCUMENT
 | PSN&GP（Model) |
| 2D Metal Fence Mesh & |
| 2D Metal Fence Mesh & |
| 2D Metal Fence Mesh & |
| 2D Metal Fence Mesh & |
