CLY Metal Fence Mesh & Profiled Posts D

CLY Chain Link Metal Fence Mesh & Profiled Posts D


Introduction

The CLY Chain Link Wire Mesh Fence is a versatile fencing solution composed of steel posts, reinforced crossbars, and woven steel wire mesh. The posts and crossbars are secured with specialized connectors, ensuring easy installation and adaptability to various angles and slopes.

Features

Secure

The advanced adhesive coating technology ensures seamless bonding between the PVC coating and steel wire, even with a maximum tensile strength of 500 MPa. This process prevents gaps, cracking, and peeling, ensuring long-lasting security.

Durable

The integration of hot-dip galvanized steel with a high-adhesion electrostatic polyester powder coating provides exceptional corrosion resistance and extends the product’s service life. Additionally, the integrated post cap is tamper-resistant and durable.

Practical

Designed to adapt to uneven terrains and different installation angles, the system is user-friendly, simple to install, and highly cost-effective.

Colors Available

Popular colors
All other colors

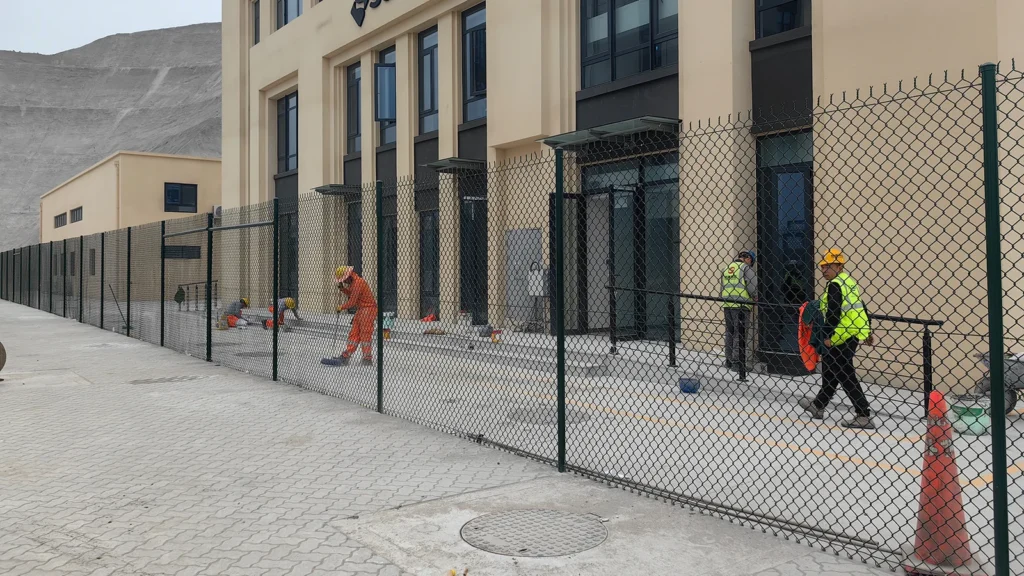

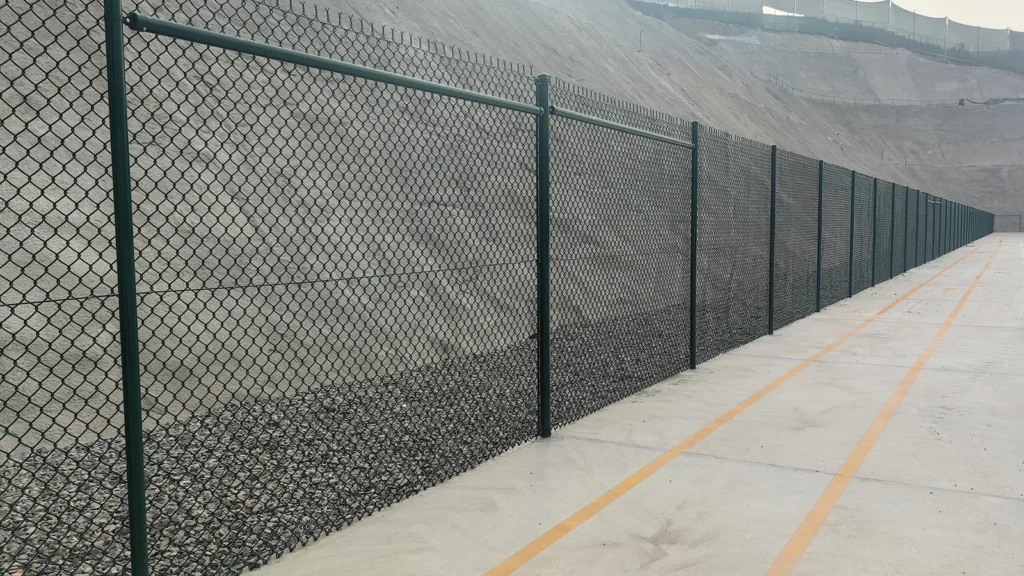

Gallery

1, Single Horizontal Wire Mesh Panel

NameParameter
Mesh Height(mm)2000/2500/3000
Mesh Width(mm)2000/3000
Wire Diameter Before Coating(mm)Ø3.55/Ø4.75
Wire Diameter After Coating(mm)Ø5.00/Ø6.40
Tensile Strength(MPa)375/500
Mesh Size(mm)50
Material Q195
Zn coating (g/㎡)≥80
ColorRAL Color 6005(blackish green)

2, Post Specification

NameParameter
End Post Size(mm)Ø70 /Ø100
Central Post Size(mm)Ø56 /Ø60
Thickness(mm)3.0/4.0
Height(mm)500-3000
MaterialQ235
Zn coating(g/㎡)≥80
Coating Thickness(μm)≥100
ColorRAL 6005(blackish green)
CoverQ235

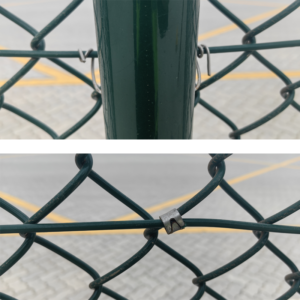

3, Mesh Connection

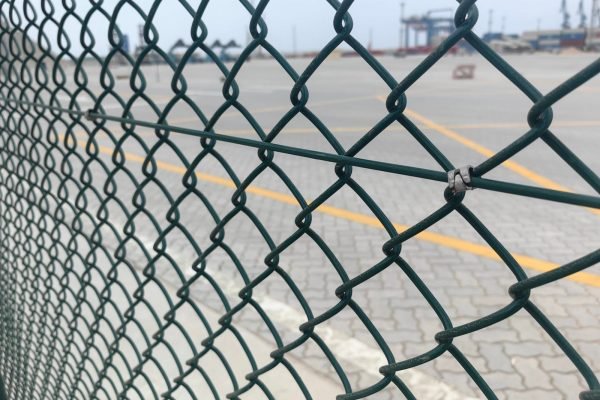

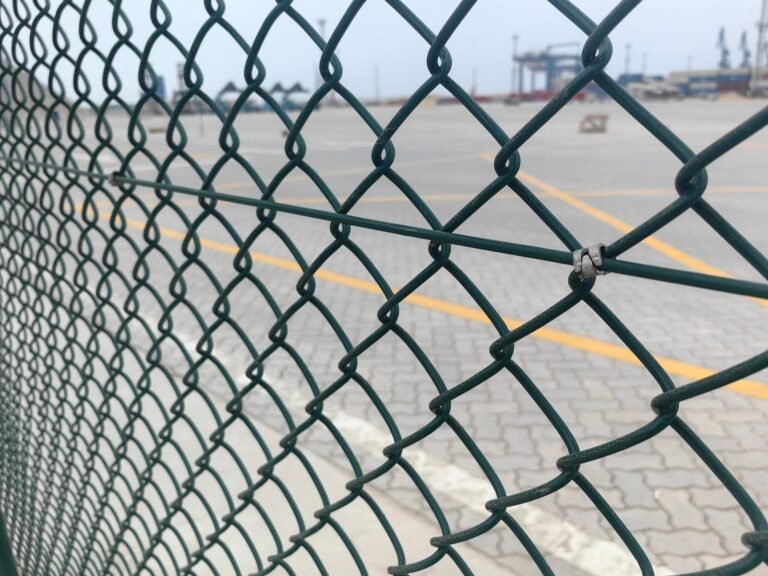

Connect the tighten the steel wire and the column by wrapping it with Ø 2.0 stainless steel binding wire. The mesh and tighten steel wire are fixed with dedicated stainless steel buckles.

4, Surface Treatment(Anti-rust Treatment)

The substrate is hot-dip galvanized with a zinc coating of 80-120g/m ², and the outer coating is sprayed with polyester electrostatic powder with a coating thickness of 100-120um. There are over 200 colors available in the RAL color series;

 The entire component is hot-dip galvanized with a zinc coating of 550g/m ².

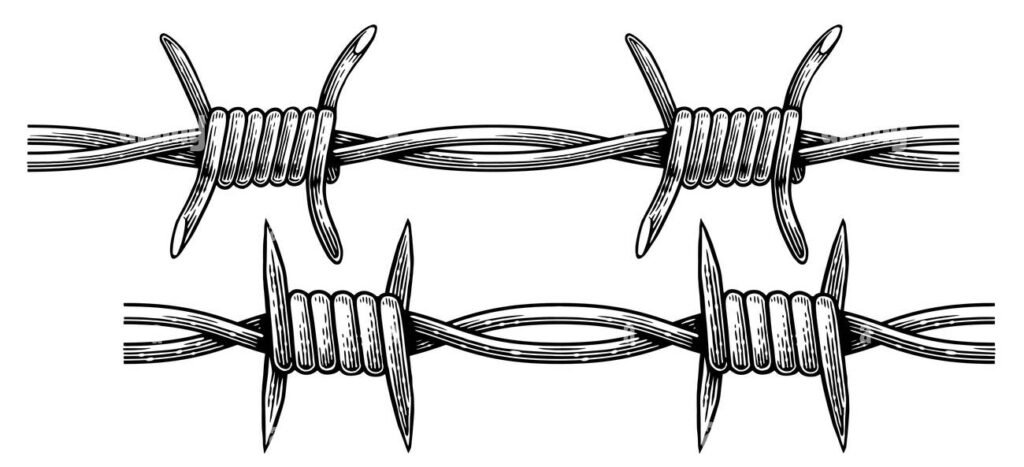

4, Optional Accessaries

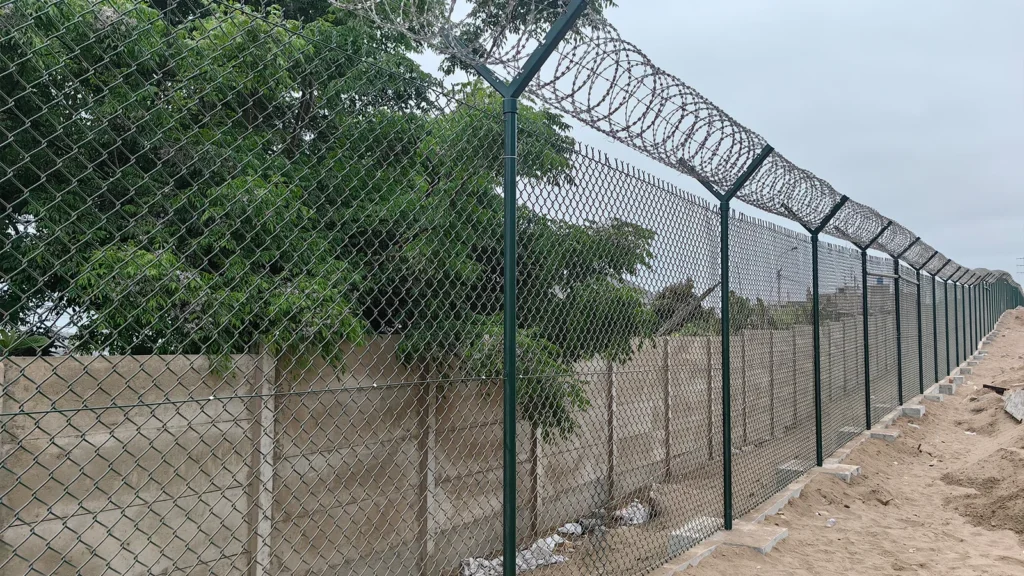

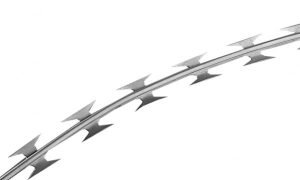

razor wire tape

Reference

What Our Clients Say

As one of the popular fences, we sold 10000m welded mesh fence to our distributor every month.

2023,40000m welded wire mesh fence for Thailand

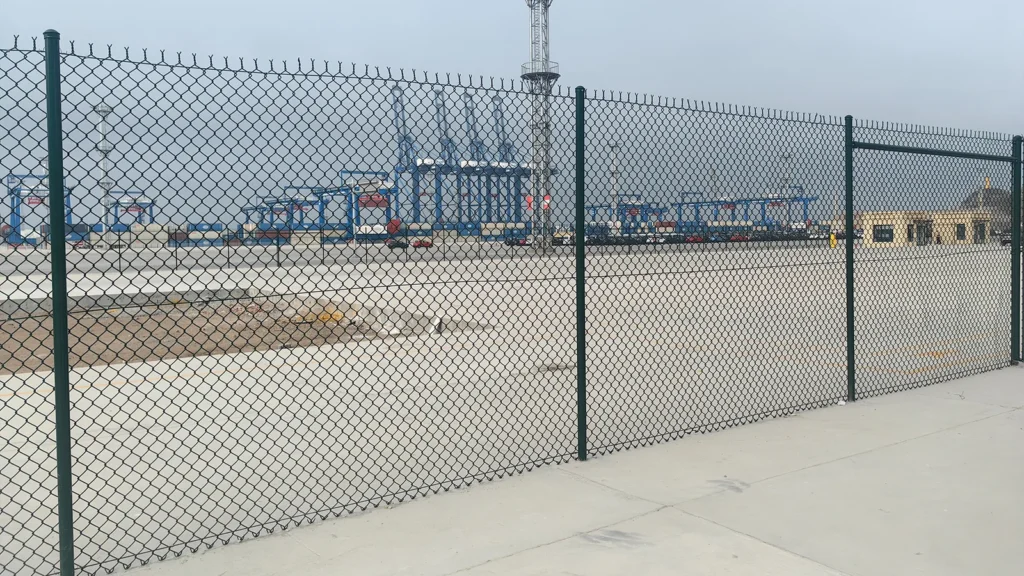

2024,10000m welded wire mesh fence for Chancay Port Lima,Peru

2025,50000m welded mesh fence for Rwanda

Frankly speaking, I was looking for a stable supplier in China, and I was very satisfied with the quality of the supplier with its own factory owned by ChinaFenceCompany. Especially after we met in China I decided to have longer partnership with them. They are very very professional and have solved all my doubts about product technology, packaging and shipping information. They are very professional compared with other suppliers. And because of that,the ChinaFenceCompany team is more confident and proud of the high end products. There is a 12 hour time difference between my country and China, but I can still get online services every day. It’s awesome!
-Jason (Distributor)
I have imported fence from China for 13 years, and I used to have 2 suppliers in China. The first is a very large company (company name “O”), and the second is ChinaFenceCompany. I like to work with “O” because they can not customize high end fencing products. I like working with ChinaFenceCompany because ChinaFenceChina is professional and dedicated and can tailor make products. In 2024, I got a larger order, which was very difficult to fabricate, so I divided it into 2 parts for “O” and ChinaFenceCompany. One day, I came to China. According to the schedule, I met company “O” on the first day, and at 9:00 AM the next day I planned to meet ChinaFenceCompany. On the first day I had dinner with company “O”. It was late at night about 12:30 when I returned to the hotel, and I sent ChinaFenceCompany a message that the meeting would be postponed until the afternoon at 1:30 instead of the morning time. And I got a reply immediately surprisingly. I feel so sorry that I disturbed ChinaFenceCompany’s sleep at 12:30am. In the next day learned: In order to ensure quality, ChinaFenceCompany sales team has been in factory for 2 days and 1 night. Since then ChinaFenceCompany has become my only supplier.
-Mark (Distributor)
My name is Danial from South Africa and we were a very small trader a few years ago moved from America. We buy fences from locals.One day I saw ChinaFenceCompany website www.chinafencecompany.com . Their prices are very good and the quality is super good. We talked a lot with each other. I am very satisfied with the team.
-Danial (Trader)
I ‘m Muhammad from Dubai. I met ChinaFenceCompany at the Canton Fair a few years ago. At that time I was bidding for a military high security project. A very large nation level project. In fact, I am not professional with fencing industry. But the team are so patient to give me sufficient information ,it is like training ,so when had a chance to bid for the large project, and I came back to ChinaFenceCompany again. ChinaFenceCompany helped me find the best solution, we got tender together and cooperated happily. I am very grateful to ChinaFenceCompany.
-Mohammed (Contractor)

Packaging and Shipping
